Specifications
1.Automatic high efficiency2.Pneumatic, low comsuption
3.Stainless steel surface, high quality
4.PLC control, easy operation
Product Description:

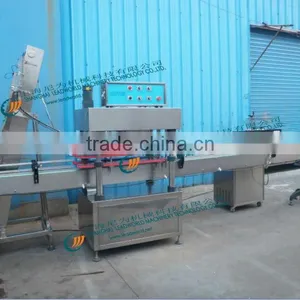

This Automatic volumetric linear filling machine is new generation utility product, developed from most advanced technology to suit to market demand. The machine adopts SUS304L piston pump. Economic utility, low plant cover, the machine is widely applied to liquid packing in the market of pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet to the requirement of GMP.
Features:
1. Adopts piston pump to fill, suitable for all kinds of liquid, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
2. The piston ring of volumetric injection pump use different material of silicone, polyclonal or other kinds according to liquid characteristic, use ceramic pump in special industry.
3. PLC control system, frequency conversion adjusting speed, high degree automation.
4. No bottle, no filling, auto count the quantity. And have the anti-drop device
5. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
6. Filling head is equipped with anti-dropping equipment.
7. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.
8. The whole machine meets GMP requirement
Technical Parameters:
LW-AFM | |
Filling nozzle | 4/6/12/24 customized |
volume | 50ml-1L/2L customized |
capacity | 1,500-1,800 bottles /hour customized |
Filling precision | ≤±1% |
Power supply | 380V 50/60Hz |
power | ≤2.2kw |
Air pressure | 0.4-0.6MPa |
N. W. | 650kg |
dimension(mm) | 1850*850*1800 |
