LW-AS60 14A Automatic Rotary Weighing Type Solid Filling System is
consists of Automatic Screw Feeding Bottle Device, Rotating Device, Filling Mechanism,
1. Features:
Rotary Bottle Conveyor Device:Use Servo drive., Improve production efficiency and stable performance
.Screw Bottle Feeding Device:Use screw feeding system, can solve the problem of bottle falling down
and bottle Stuck,Greatly improve the stability.Conveyor:Flexible connection mode,can choose
according to the location request. It is the most humanized product design.
Technical Parameters:
Model:LW-AS60-14A Packing Speed:30-60bottle/ min Voltage:220V 50Hz Working air pressure:0.5 MPa Total Power:2.45kw Gas consumption :0.2m3/min
2. Soup filling machine:
Technical Parameter :
Filing Head:12 heads
Capacity: 2000-3500BP/H
Filling Accuracy:According to the national metrology technical specification
Product percent of pass:0.4%
Air pressure:0.6MPa
Air Comsumption:0.3M3/min
Filling Type: Atmospheric gravity filling
Filling material:Soup for Mushroom
Total Power:1.3KW
Rated Voltage:220V

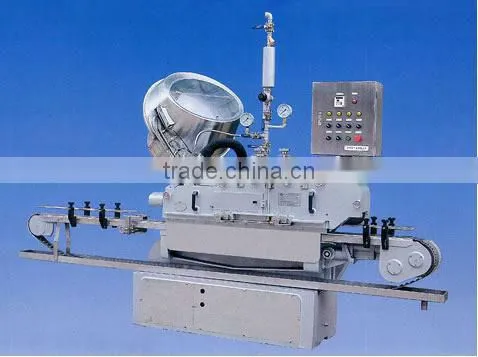

3. Steam Hydrojet Type Glass Bottle Vacuum Sealing Machine
Technical parameter :
Capacity(Bottle/min) |
100~600 |
|
Suit for bottle height(mm) |
60~280 |
|
Suit for bottle Diameter(mm) |
Normal |
50~100 |
Big Type |
90~120 |
|
Small Type |
40~80 |
|
Cap diameter (mm) |
Normal |
50~90 |
Big bottle type |
90~115 |
|
Small bottle type |
30~60 |
|
Steam demand qty(Kg/h) |
>180 |
|
Steam demand pressures(Mpa) |
>0.4 |
|
highest vacuum part in the bottle(Mpa) |
≥0.066 |
|
