Specifications
1. Saving energy
2. CE certificate
3. Saving floor occupying
4. More flexible retention time
5. Food grade stainless steel
Spiral freezer is a kind of advanced individual quick freezing equipment, which is widely used by modern food processing industry all over the world.
Its advantages (comparing with tunnel freezer with same output capacity):
(1) Saving energy consumption;
(2) Saving floor occupying;
(3) Retention time is much flexible; the adjusted range is larger;
Its applications:
Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing.
Its structure:

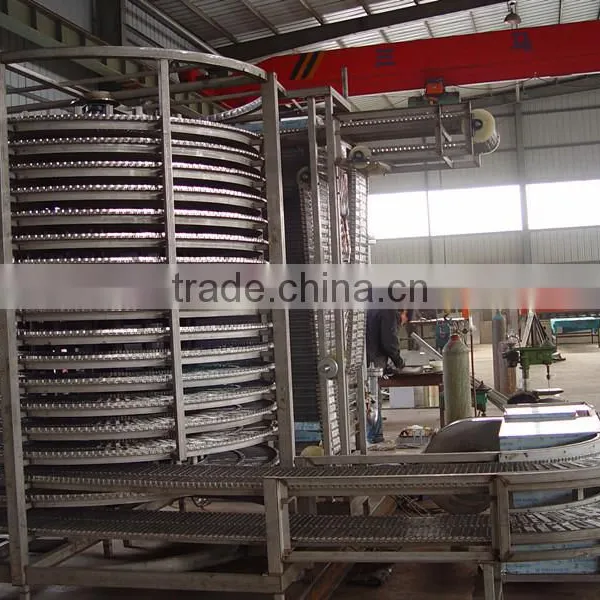

(1) Stainless steel conveyor belt; equipped with safe guard both sides;

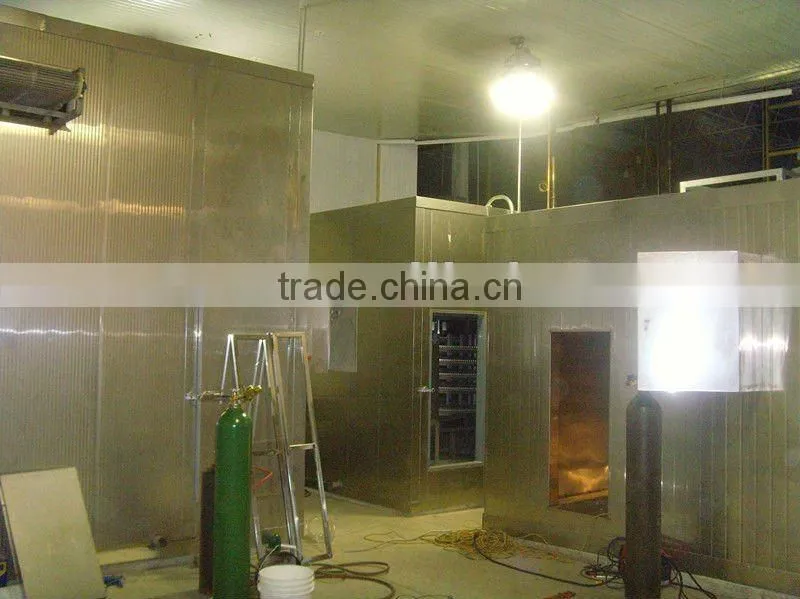

(2) Sandwich PUF panels laminated by stainless steel plate both sides; floor panels are equipped;
(3) Door is equipped with frame heating device;

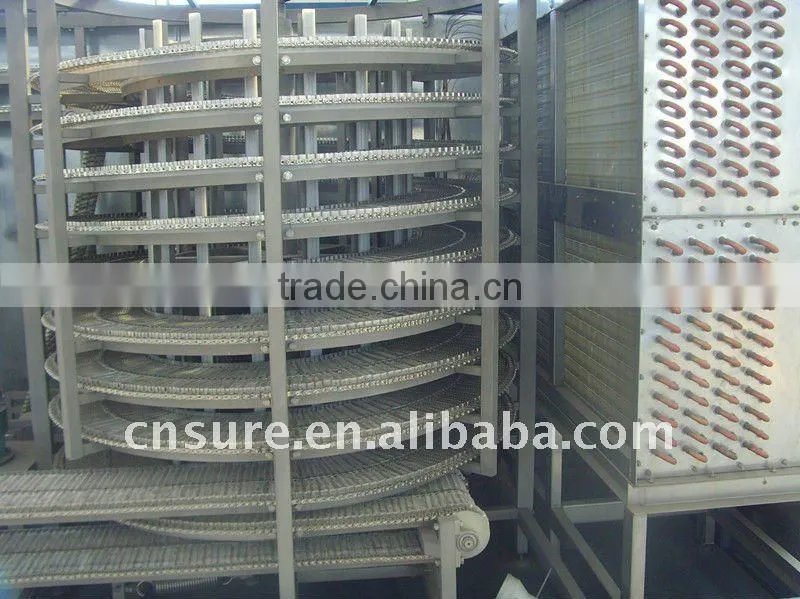

(4) Aluminum evaporators, variable fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Complete welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes;

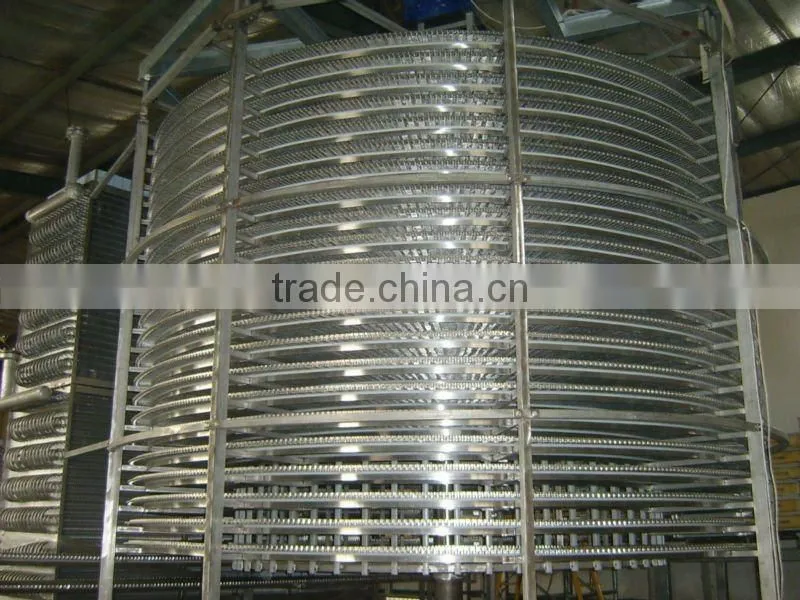

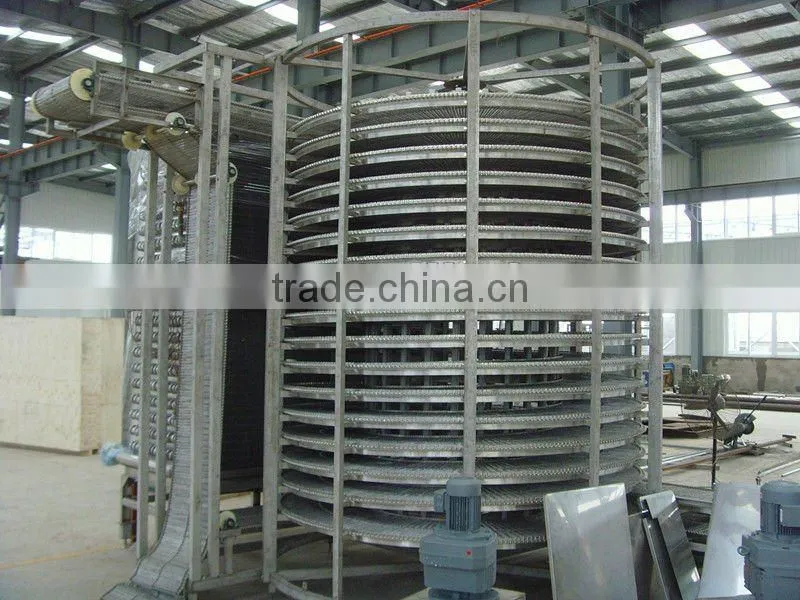

(7) The drum, inlet device, outlet device and all structure parts are made of stainless steel;

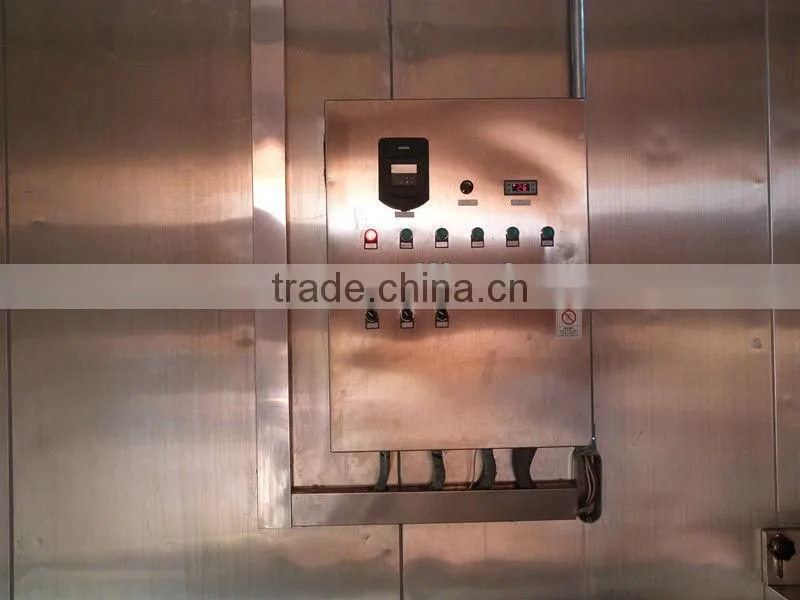

(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10)SEW speed reducer.
Technical Parameters:
Model: SF Series |
Output |
Installed Power |
Refrigeration Consumption (-40 degree C/+40 degree C) |
Dimension L*W*H |
Belt Width |
SF200 |
200kg/h |
3.55kw |
32kw |
4.0*3.3*2.1m |
300mm |
SF300 |
300kg/h |
5.15kw |
43.5kw |
4.9*4.1*2.5m |
450mm |
SF500 |
500kg/h |
11.2kw |
75kw |
5.6*4.0*2.9m |
450mm |
SF1000 |
1000kg/h |
22.0kw |
145kw |
6.8*5.0*3.3m |
600mm |
SF1500 |
1500kg/h |
31.0kw |
225kw |
6.8*5.2*4.5m |
600mm |
