Specifications
1. Auto filling sealing machine2. For Fluid filling: water, juice, milk, etc
3. suitable for plastic / paper cups

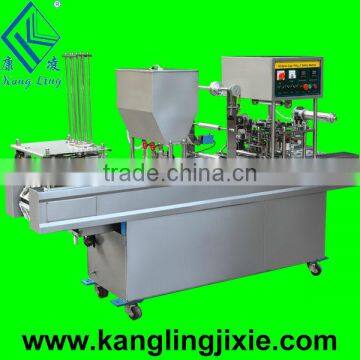

GD series Auto Fill Seal Machine / Auto Cup Sealing Machine
GD Series Automatic Cup Fill-Seal Machine equips the different pump applicable for the different paste beverage, such as milk, ice creams, jam, and so on. The machine seals cups by the relevant compound film. It’s and ideally fill-seal machine.
CHARACTERIZATION
1) Automatic filling, adjust the quantity, high definition.
2) Seal cup by invariableness temperature, also with twice hot sealing.
3) Electric eye corrects high veracity.
4) All stainless steel part which touches the beverage.
5) Adopt mechanism drives, easy to operate, maintenance convenience.
TECHNICAL SPECIFICATIONS
Model | GD2-16 | GD4-16 |
Speed(pcs/h) | 1800 | 3600 |
Filling Content | 50-360ml | 50-360ml |
Voltage | 220V 50Hz | 220V 50Hz |
Power | 2.5kw | 4kw |
Hot-Sealing Temperature | 180°C - 240°C | 180°C - 240°C |
Compound Film Thickness | 0.08mm-0.11mm | 0.08mm-0.11mm |
Dimension | 1800x650x1450mm | 2200x800x1450mm |
Weight | 350kgs | 800kgs |
