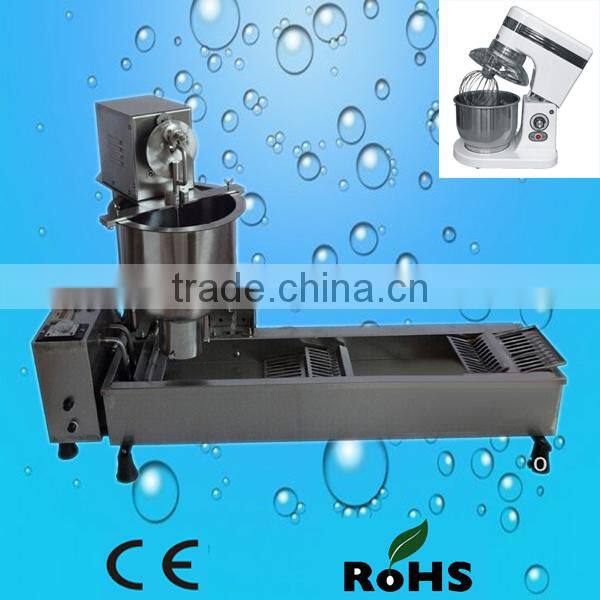

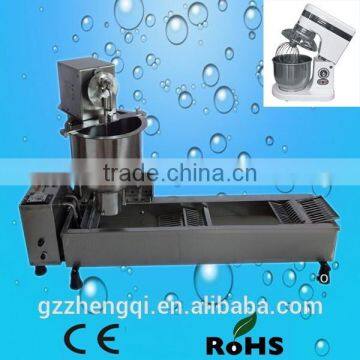

Donut Machine,donut making machine,commercial donut machine(ZQ-101)
1. Whole machine is made of stainless steel 304.
2. The height of outlet can be adjusted according the level of the oil because the 3.achine uses the screw to adjust.
4. Can adjust the thickness of the donut through adjusting the amount of the material.
5. Electrical controller to control
Product Spesification
Voltage | 220v/50Hz |
Heating Power | 3 KW |
Yield | 500~800 pcs /hour |
donut Diameter | 3~10 CM |
Machine’s Size | 110x40x65 CM |
Product Detail and Packing

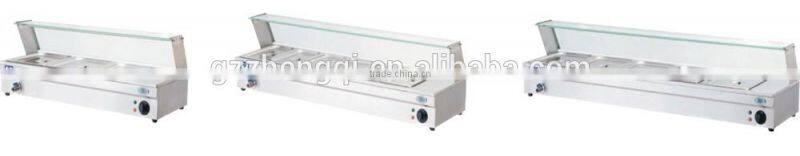

Use the dough mixer do make the dough and then put it in the donut maker, and then dip the chocolate or the other sauce which is in the bain marie, like the pictures, You are worth to have it, contact with me: call:+86-18902388368
This is high power(3 KW) equipment, it is better to connect a Current safety device.
- A. Before obtaining access to terminals. All supply circuits must be disconnected.
- B. If the supply cord is damaged or machine shows any signs of damage, it must be replaced and fixed by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
- C. The electronic and electric parts must not be immersed.
- D. DO NOT Handle roughly or drop on hard surfaces.
- E. DO NOT Mix with other utensils in the sink when washing.
- F. DO NOT Allow to rust. Always wash parts thoroughly. Dry completely and then lubricate with mineral oil or liquid shortening before storing or reinstalling in unit.
- G. DO NOT Force the machine if it becomes jammed. Disassemble and remove any obstruction to prevent damage to the plunger.
- H. Children being supervised not to play with the appliance.
- I. The instruction concerning persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge is not applicable.

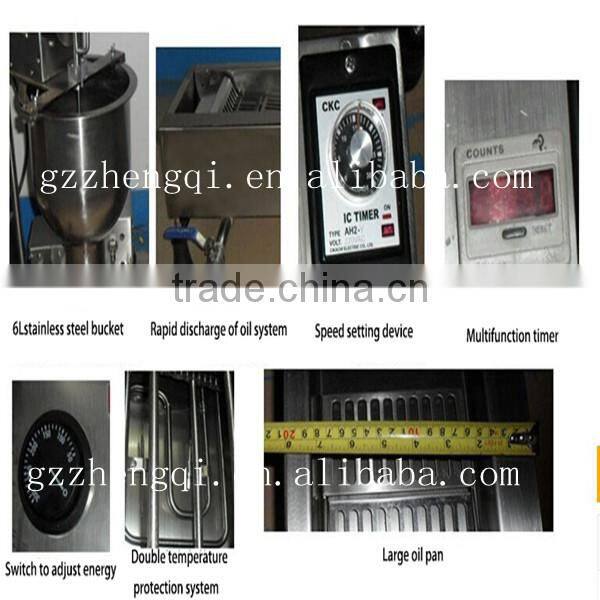

Temperature controller, it is in charge of heating.
It is recommended within 220℃.
T1 is not control by power switch, it can work individually. When temperature is over 240℃,to protect the equipment, the electricity will be cut automatically. You can re-run the machine vie R switch.
S1: Power switch.
S2: Dropping switch. Controlling dough’s dropping from funnel.
L1: Power indicator.
L2: Heating Indicator.
L3: Dropping Indicator.
N: Counting the number of donut that have made.
T2: Time adjuster.
R: Reset switch. When machine’s electricity cut automatically, screw the black cover and press the switch after the oil’s temperature is lower.

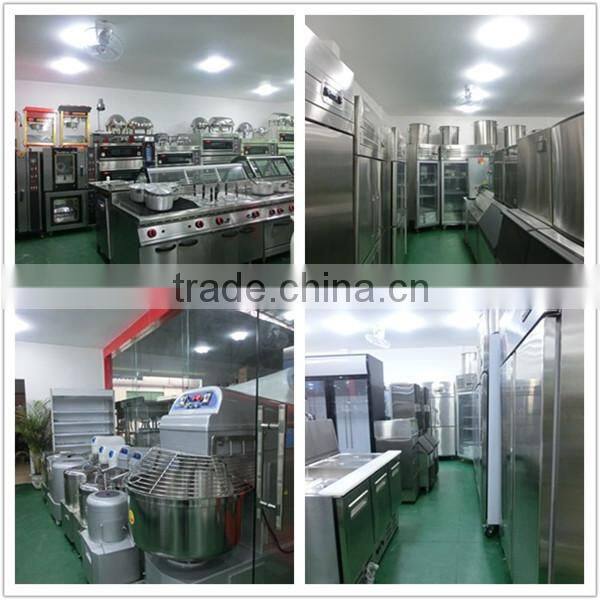

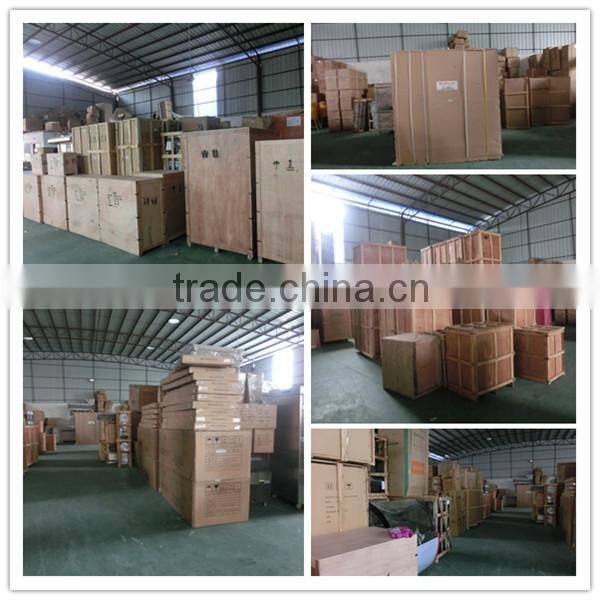

Below are real pictures for our showroom and our warehouse
Below are real pictures for our shipping and we have long-term relationship with more than 35 countries
