1000TPD Wheat Flour Milling Machine with High Quality
1. Hanzhong Burt Machinery Co., Ltd. is a high-tech private enterprise which mainly research and develop, product and sale some middle and high-end pneumatic pressure flour mill.
2. It has been a comprehensive company which integrates services of design, manufacture, sales, installation, debugging, post-sales and accessory supply of milling machine.
3. Among those products, the FMFQ1000-1250*2M type pneumatic pressure flour milling machine is the main equipment for grinding wheat and other grains, according to the different lengths of grinding roller, is suitable for large and medium-sized manufacturers.
4. The milling machine can grind main materials, including wheat for flour mill, grease for grease factory, corn germ and corn for winery and alcohol plant, sorghum and grain for brewery, plastic particles for chemical plant.
5. The company can undertake 50-1000-2000tons of flour mill business one day, which can single-supply milling machine.
6. The company also undertake 50-150tons of grease processing complete equipments, various tonnage of corn processing equipment and the turnkey project.
1. The lower half of the machine uses the high-strength cast iron, the upper part is made of high quality steel by laser cutting carbon dioxide protection welding, with good stability, good cushioning effect.
2. Pneumatic pressure automatic control, pulse signal. Unique hanging servo feeding mechanism. The stroke valve imports U.S. Parker products, so it has a high sensitivity, the unit can achieve centralized control.
3. Achieving the best grinding effect with cylinder feeding tube of acrylic high transparent Plexiglass.
4. Roller through strict quality inspection and the dynamic balance treatment, no vibration, low noise, smooth operation.
5. Roller bearings with Swedish SKF, and installed Swedish special butter, low noise, long service life.
6. The parts surface of flour milling machine adopts the pure manganese black phosphate treatment, covers a protective film so that it is bright and not fade.
7. The painting of mechanical housing surface uses the automotive paint, so that the whole is delicate and beautiful.

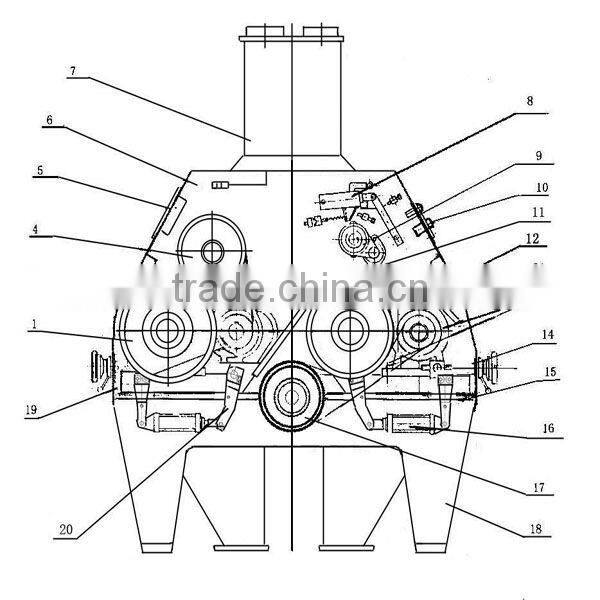

1,Big wheel 2,Gate H 3,Movable support 4,Raw material cozing roller drive clutch
5,Control box 6,Upper body 7,Feed tube 8,Servo system
9,Feed roller transmission 10,Rotary valve 11,Coarse screw 12,Shield
13,The fixed support and bolt 14,Trim handwheel 15. The cylinder fixing seat 16,Main cylinder
17,Toothwedge belt transmission mechanism 18,Body 19,Movable pedestal and gland
20,Cylinder connecting rod 21.Swinging arm
