Home > Packaging & Printing > Packing Machinery > Laminating Machine > CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine

CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine

Shenzhen Changhong Hexie Machinery Equipment Co., Ltd.
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-1
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-2
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-3
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-4
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-5
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine thumbnail-6
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-1
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-2
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-3
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-4
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-5
CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine photo-6
US$ 23,662 - 27,823 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Cutting Machine
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Paper Cutting Machine
Automatic Grade Automatic
Place of Origin Guangdong, China
Brand Name Changhong
Model Number CH-210
Voltage 220V
Power(W) 2.2kw
Dimension(L*W*H) 2500*1200*1500
Weight 1500kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

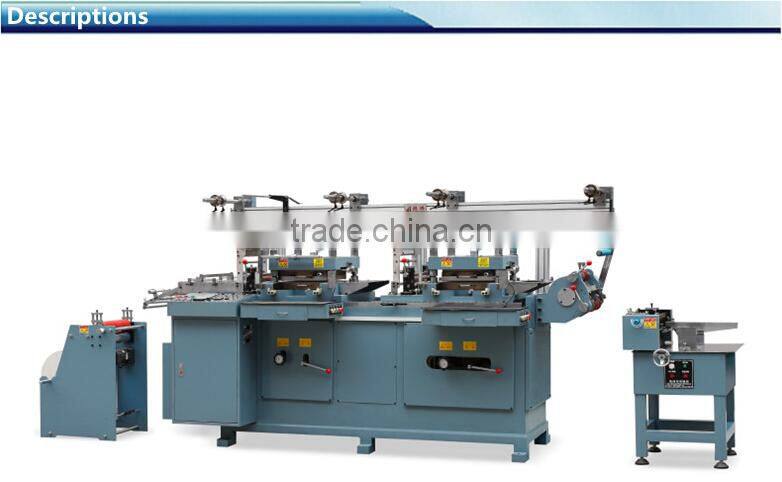

CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine

CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine

1. Specifications:

SpecificationCH-320CH-250CH-210
Max. Film Width (mm)340270230
Max Die Cutting Area(mm*mm)310*280260*210210*180
Max Die Cutting Speed (round/minute)30~20030~20030~200
Die Cutting Precision (mm)±0.05±0.05±0.05
Main Driver Motor  power (KW)3.72.22.2
Rated Voltage(V)220220220
Size of the Machine(mm)2500*1500*16002500*1300*15002500*1200*1500



2. Feature:

1.With CNC driving system and accurate electic eye tracking, simple operation,high efficiency,energy saving and low noise.

2.With printing, hot stamping, laminating and die-cutting complete function and stable performance.

3.Easy to maintain, automatic supply lubrication system to prevent machine wearing out, suitable for high speed operation.

4.Can set any pieces of paper,  machine will remind you when it reaches setting number.

5.With Japanese servo motor, CNC driving, high printing precision(can make to 0.03mm), eye tracking can multiply print.

6.Two feeding types.



3. Our machine's die cutting labels:





4. Standard Configuration:

Feeding Machine1 set
Cutting Machine1 set
Main Machine1 set
Standard Tools1 set
Die Cutting Upper/Lower Board1 set/each



5. Application:

Die cutting machine is useful for self-adhesive label, Dacron film, laser anti-false label, Punching and mulity compounding on electronic industry, PET, PP, PVC, Viscose, non-woven, insulation materials, shielding materials...etc.

Product Details

CH-210 High Speed Two Station Flatbed Roll Adhesive Die-Cutting Machine

Packaging & Shipping

Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.

Our Services

Advantages

Transaction Process

Payment Terms

T/T, L/C, Western Union,

Money Gram, Cash

Supply Ability10 sets/month
Delivery Time30-40 days
FOB PortShenzhen
Company Information

1. Factory:

We have 3 floors of total over 3000 square meters factory, first floor is assembly workshop, second floor is manufacturing workshop, third floor is storage.



2. Office:

We have both experience international and domestic sales team, Design apartment, Production apartment, QC apartment and HR apartment.



3. Our certificates:

Our products highly meeting CNCA's requirements of ISO9001:2008.



4. Our Team:

We are a family of 50 young and experienced members, we also love to go out for climbing, swimming, playing games and party...etc.



5. Our Culture:

Our culture is"Truth-seeking for high quality and low cost, Customers first and market-oriented, Respecting and learning for love".



6. Contact us:

Amily Zhang (sales)

Skype: live:135 6002 5355

Wechat: 135 6002 5355

Cell Phone:  86-135 6002 5355

Office Phone:  86-755-2898 6010

Fax:  86-755-2898 6853

Website:  http://cnchlm.en.china.cn

                  /
