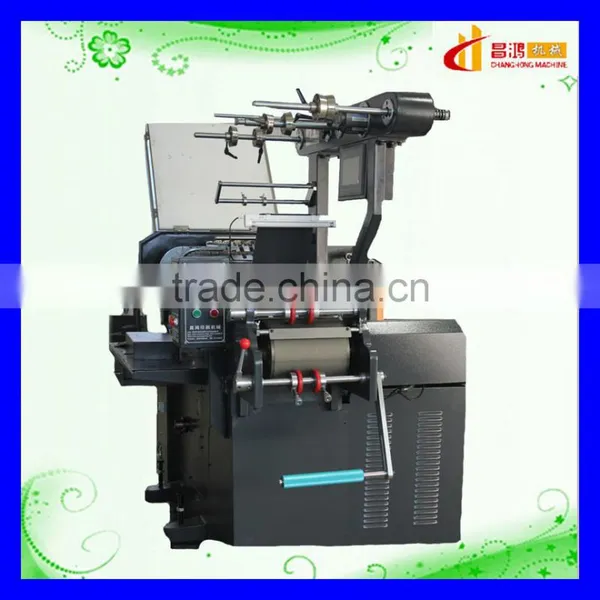

CH-210 Hot Sell Self Adhesive Logo Printing Machine With Die Cutting in China photo-2

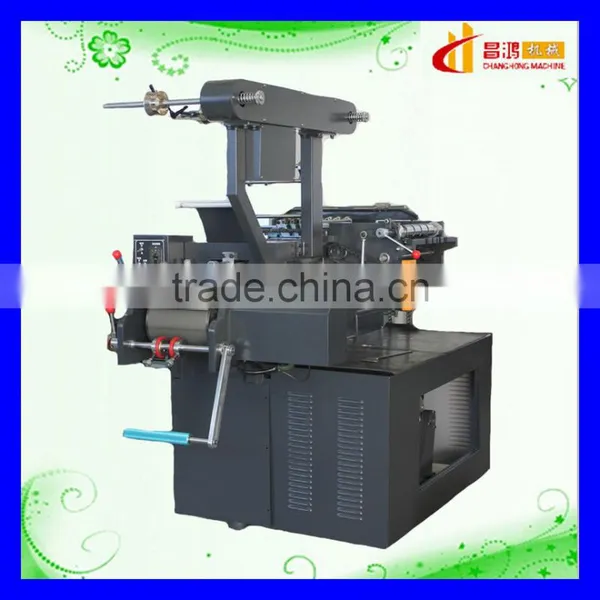

CH-210 Hot Sell Self Adhesive Logo Printing Machine With Die Cutting in China photo-3

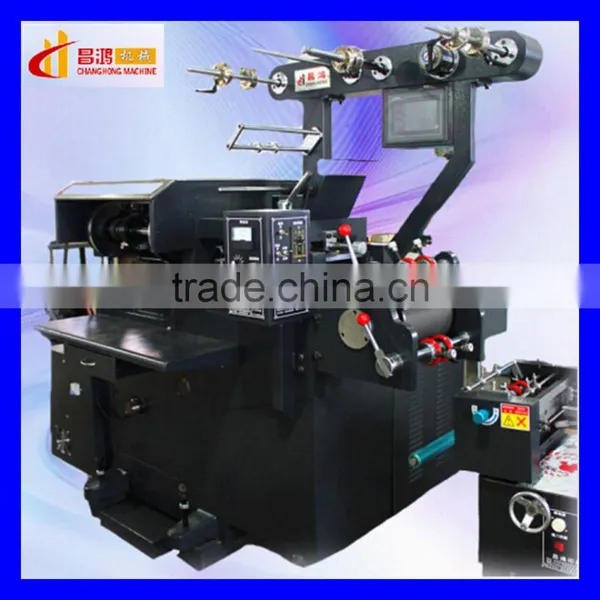

CH-210 Hot Sell Self Adhesive Logo Printing Machine With Die Cutting in China photo-4

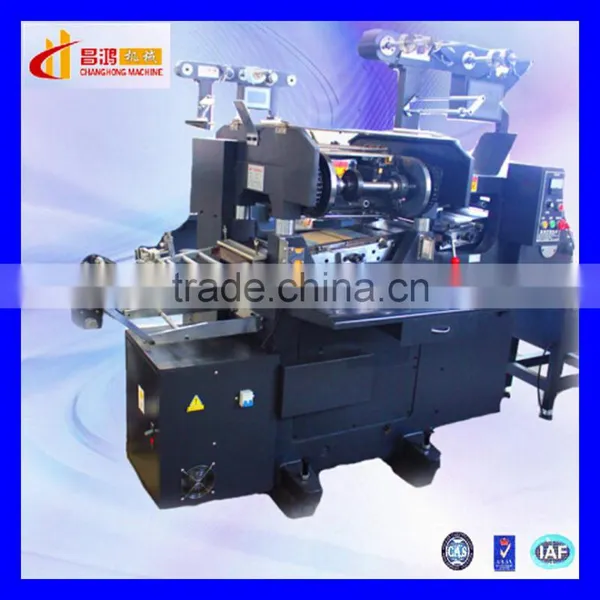

CH-210 Hot Sell Self Adhesive Logo Printing Machine With Die Cutting in China photo-5

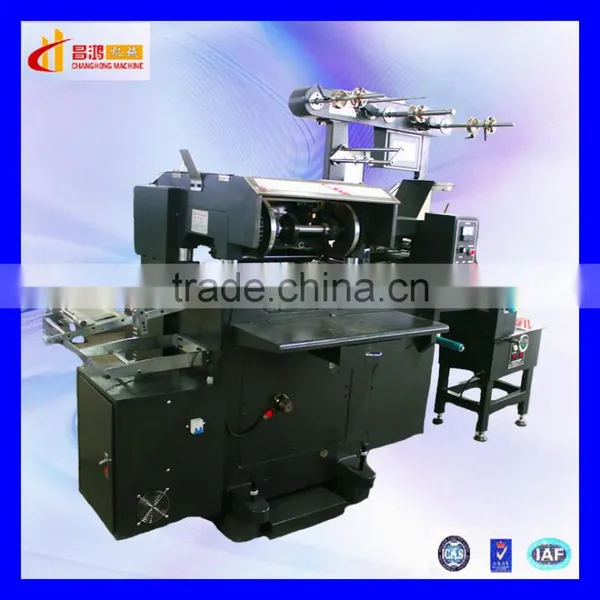

CH-210 Hot Sell Self Adhesive Logo Printing Machine With Die Cutting in China photo-6
US$ 24,875 - 34,985 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Letterpress
Place of Origin Guangdong, China
Brand Name Changhong
Model Number CH-210
Usage Bill Printer, Cloths Printer, Label Printer, Paper Printer, Other, Bill Printer, Cloths Printer, Label Printer, Paper Printer, pvc, pp, pet film, sticker, ticket
Automatic Grade Automatic
Voltage 220V
Gross Power 2.2kw
Dimensions(L*W*H) 2300x1300x1600mm
Weight 2500kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

CH-210 hot sell self adhesive logo printing machine with die cutting in China

CH-210 hot sell self adhesive logo printing machine with die cutting in China

1. Specification:

2-Color210*155mm
3-Color210*100mm
4-Color210*72mm
Printing Speed4800-12000 r/h
Max Die-cut Area210*200mm
Max. Paper Width210mm
Main Motor2.2KW
Air Suction0.28 KW
Net Weight2500Kg
Rated Voltage220V
Machine Size2300*1300*1600



2. Features:

1). Simple operation, high speed and flexible, accurate registeration, can do auto feeding, printing, laminating,die cutting, hot stamping(optional), rewinding and waste discharge together.

2). Hatchback design, printing and die-cutting can run steadily and gradually, even big printing area or small words can be printed perfectly and clearly.

3). Advanced spreading ink device is adopted, seven groups ink rollers spread ink averagely to keep perfect printing quality, easy to maintain; suitable for high speed running.

4). Lustering pressure roller can be discharged, easy to clean, steady and simple to operate.

5). Automatic oil lubricating system to ensure machine is not worn out, improve high precise printing during high speed printing.

6). Can put any pieces of printing and die cutting paper into operating system, machine will beeze and stop when it reaches the setting number.



3. Standard Configuration:

Main Machine

1 set

Feeding Machine1 set
Cutting Machine1 set
Tools1 set
2/3/4 Colors Iron Cores1 set/each
2/3/4 Colors Ink Sink1 set/each
2/3/4 Colors Rubber Rollers1 set/each
2/3/4 Colors Upper Printing Board1 set/each
Lower Printing Board1 set
Lower/Upper Die Cutting Board1 set/each



4. Application:

Our products are widely used in garment, tag, medicine, electronics, food, toys, gift, supermarket bar code sticker and other industries.
