High Quality Short Path Distiller 10L With Vacuum Pump

High Quality Short Path Distiller 10L With Vacuum Pump thumbnail-1
High Quality Short Path Distiller 10L With Vacuum Pump photo-1
US$ 800 - 2,250 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Distillation
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Distillation
Power Source Electric
Process Vacuum Distillation
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number RE-1002
Voltage 220V/50HZ
Power(W) 180W
Dimension(L*W*H) 1450*500*480mm
Weight 150kg
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Introduction of Short Path Distiller

Rotary evaporator is under normal/negative pressure, with constant heating, use the different boiling point of the liquid material to get your target solvent.
Rotary Evaporator is widely used in the process like Concentration, Refining, Separation, Crystallization, etc.
Rotary Evaporator is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.

Features of Short Path Distiller

1. GG-17 (3.3) high borosilicate glass, with good performance
2. Excellent sealing performance, Ultimate vacuum reached pump vacuum rate 133pa
3. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional PTFE（Teflon）discharge, no pollution to solvent
4. System vacuum does not drop during discharging shift. Sample received keeps consistent quality.
5. PTFE (Teflon) no-liquid -accumulation discharging valve, no-dead-angle reaction, complete PTFE valve, anti-corrosion.
6. Ex-motor optional

Model
RE-1002
Rotary flask(L)
10
Receiving flask(L)
5
Evaporating speed(H2O)
3L/h
Discharge
PTFE(Teflon)Bottom Discharge Valve
Motor power(W)
180
Rotation speed(rpm)
3~110
Bath power（KW）
3
Power
220V,50/60Hz
Bath temp range
Water:RT~90°C    Oil:RT~200°C
Glass material
GG-17(3.3)High Borosilicate Glass
Reachable vacuum rate
<133Pa(1.33mbar,1Torr)
Working Principle

Rotary evaporators are distillation units that incorporate an effecient condenser with a rotary flask system.As the flask containing the solvent is rotated it continually transfers a thin layer of liquid over the inner surface.This gives a very large surface area for                      evaporation that is effected by heating from the accessory water or oil bath.
Detailed Images


1、Charging Valve


New structure and material applier, is able to offer purely clean charging process and durable use experience.




2、Anti-corrosion&wearable sealing system

Specially designed and precisely manufactured. Enable system ultimate vacuum rate reaching 133pa. 90% user don’t need to replace rotary seal in one year.




3、PTFE discharging valve


PTFE structure, which is anti-corrosion, no vacuum grease, no pollution to solvent received.

We have 500ml~50l rotary evaporator.According to your requirements,we can provide you the suitable one.

Related Products

Chiller

-We have 5L~100L chiller.And temperature range is

 -120℃~20℃.

Vacuum Pump

-The vacuum rate of vacuum pump is 10L/min*5,

 the flow rate is 80L/min,and power is 370w
Other Models

RE-205 Rotary Evaporator

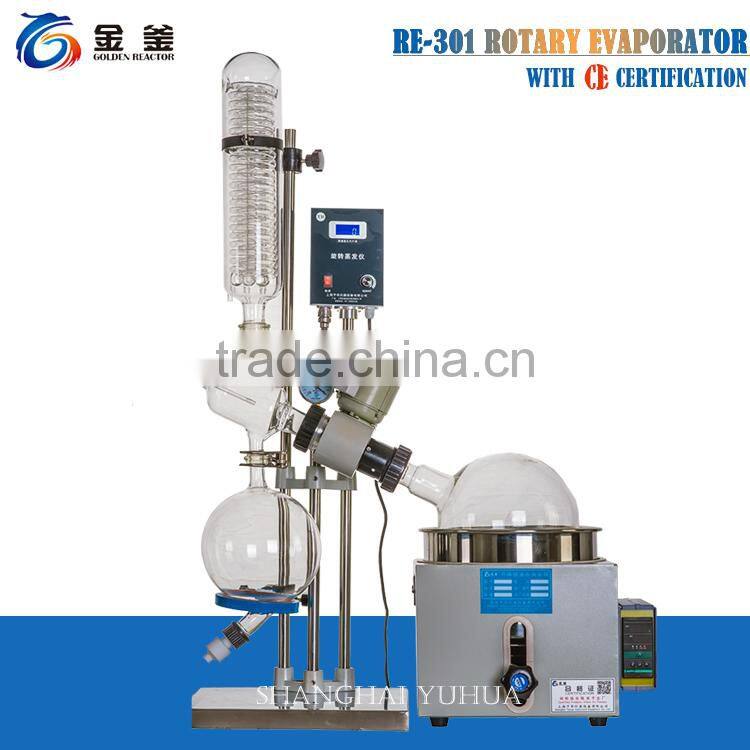

RE-301 Rotary Evaporator

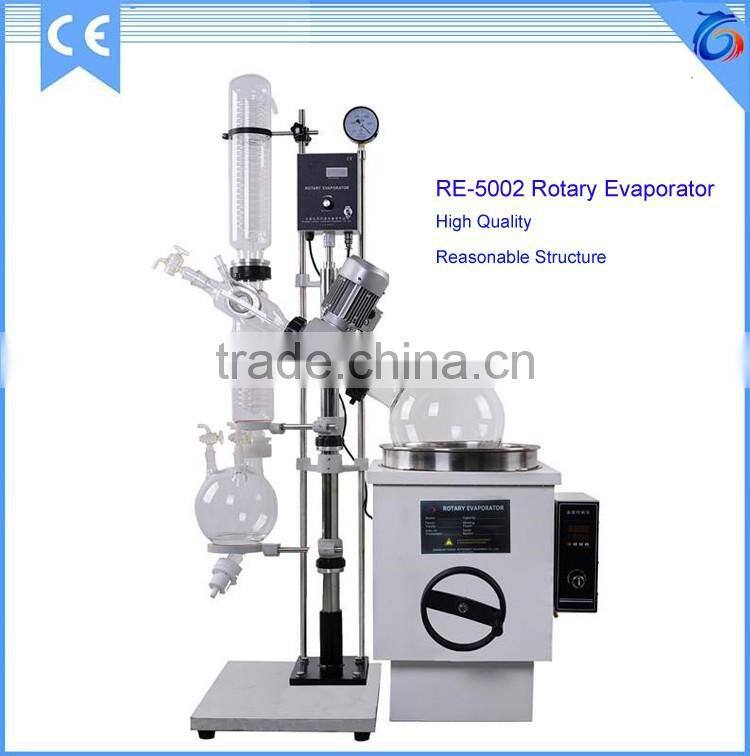

RE-5002 Rotary Evaporator

New Type RE-6000AT Rotary Evaporator

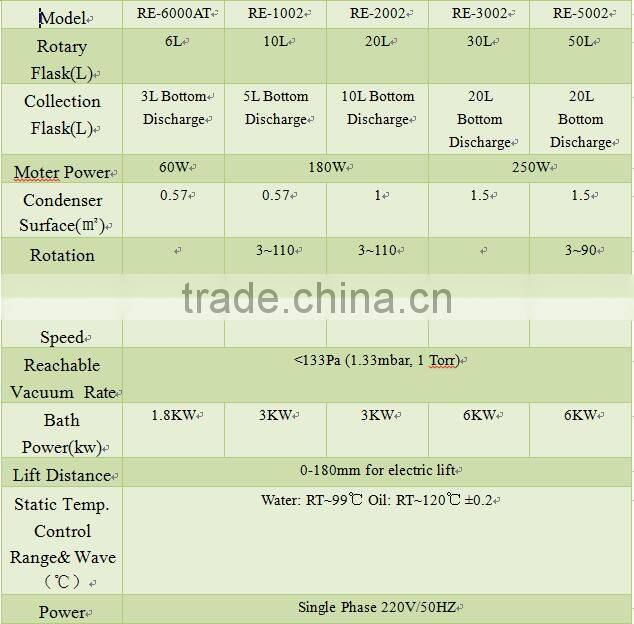

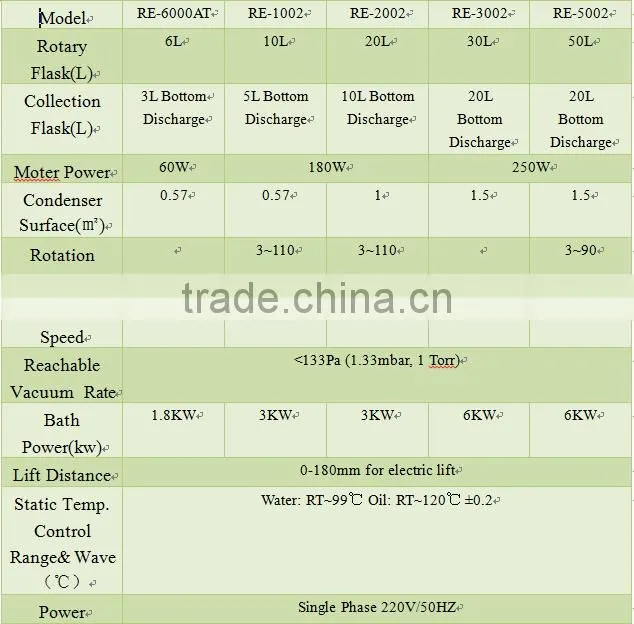

Specification

Our Service
Packing & Delivery

Packing:

-Treated wood case or carton case

-Both neutral and customized packaging can be available


Shipping:

Depends on the dimensions of the package and your requirements, we can deliver the goods by air, by sea, by train or by express.

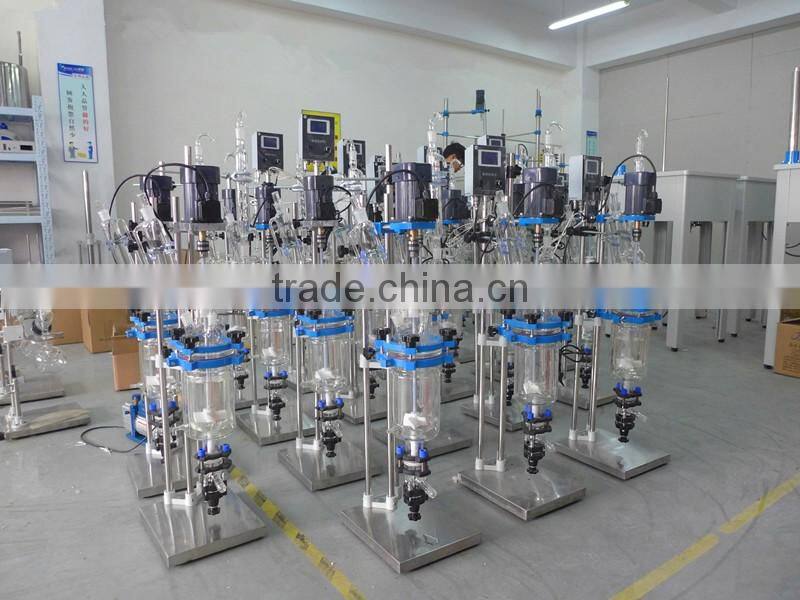

Our Company

About Us

Shanghai Yuhua is one famous professional Chinese manufacturer of lab and pilot apparatus applied in biochemical , pharmaceutical, fine chemical and research field.


Yuhua products have been exported to more than 20countries such as USA, Canada, UK, Poland, Australia, Korea, Israel, etc.


We believe that Yuhua will be your loyal friends!

Why Choose us?

- With more than 10 years experiences

- Professional engineers and workers

- Experienced OEM service made to customer

  specifications

- Compliance with the advanced world standards and

  requirements

- Highest quality in the most cost effective way and

  prompt delivery

- Dedicated customer service and technical support

Main products : Rotary Evaporators, Glass reactors , Vacuum Pumps and Heating & Cooling circulators, etc.
