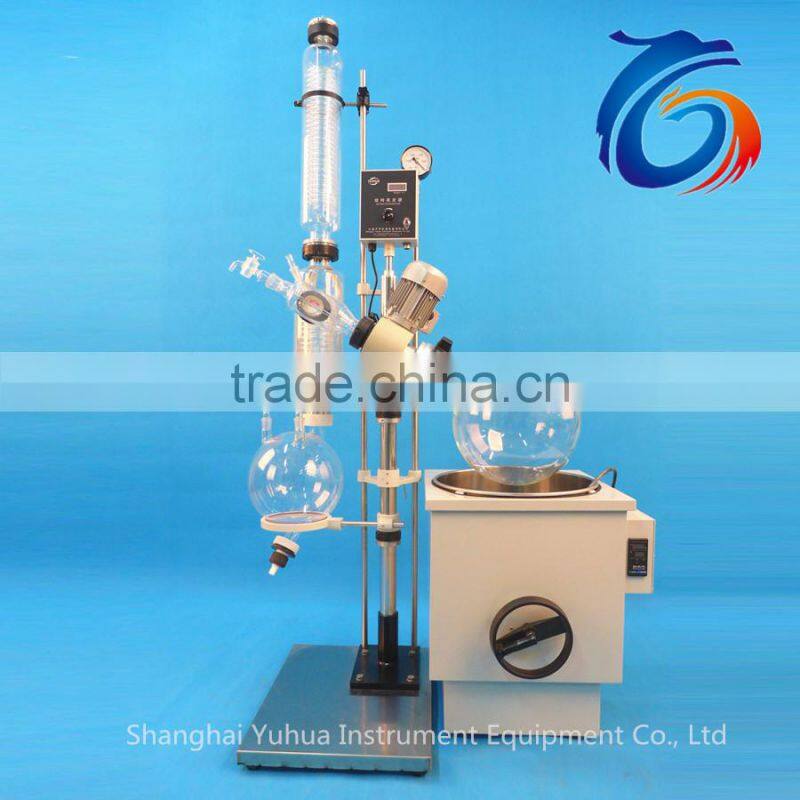

Lab Vacuum Evaporation System
Vacuum evaporation system under normal/negative pressure, with constant
heating, use the different boiling poin of the liquid material to get your target solvent.
Vacuum evaporation system is widely used in the process like Concentration,Refining,
Separation,Crystallization, etc.
Vacuum evaporation system is mainly applied in Bio-chemical, Pharmaceutical &
Fine-Chemical Trades.
Features of vacuum evaporation system:
1. GG-17 (3.3) high borosilicate glass, with good performance
2. Excellent sealing performance, Ultimate vacuum reached pump vacuum rate 133pa
3. Liftable bath with intelligent temperature controller, Manual lift or electric lift optional PTFE
(Teflon)discharge, no pollution to solvent
4. System vacuum does not drop during discharging shift. Sample received keeps consistent
quality.
5. PTFE (Teflon) no-liquid -accumulation discharging valve, no-dead-angle reaction, complete
PTFE valve, anti-corrosion.
6. Ex-motor optional
Technical parameters of vacuum evaporation system:
Model |
RE-205 |
RE-52AA |
RE-301 |
RE-501 |
RE-1002 |
RE-2002 |
RE-5002 |
Rotary flask(L) |
0.5-2 |
3 |
5 |
10 |
20 |
50 |
|
Collection flask(L) |
1 |
2 |
3 |
5 |
10 |
20 |
|
Motor power(W) |
40 |
60 |
120 |
180 |
|||
|
Rotating speed (rpm) |
3~120 |
3~110 |
3~90 |
||||
Water bath power(kw) |
1.5 |
2 |
3 |
5 |
|||
Power supply |
220V/50HZ |
||||||
Bath temp control range(°C) |
RT-199 |
RT-99 |
|||||
Sealing |
PTFE sealing |
||||||
Vacuum degree |
<399.9pa |
<133pa |
|||||

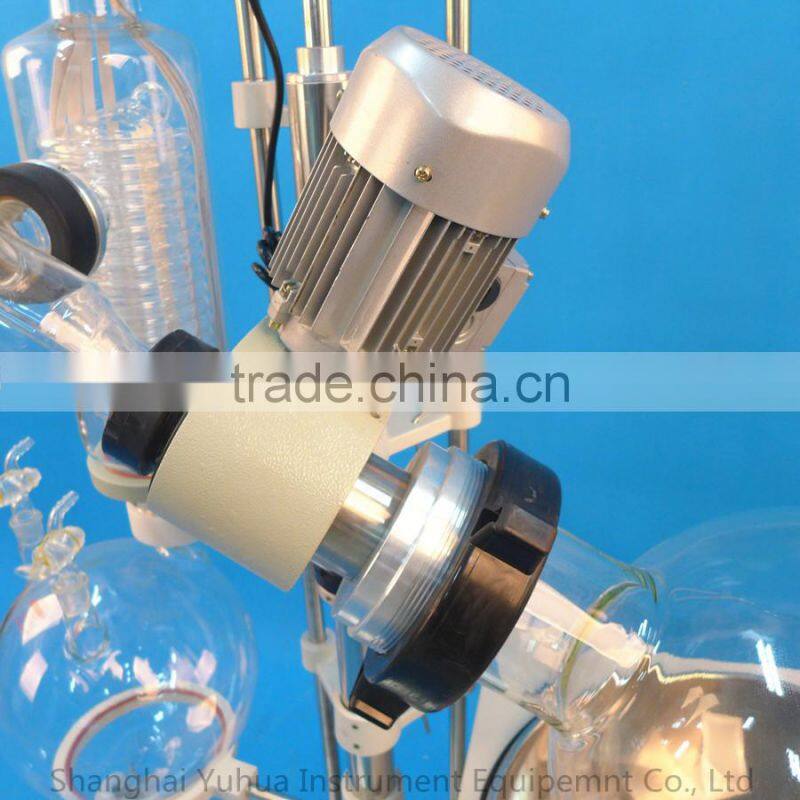

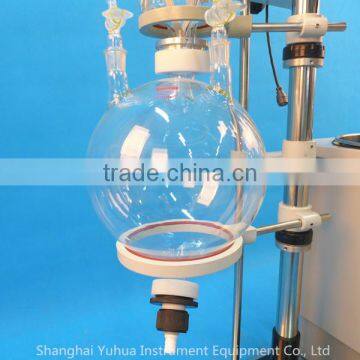

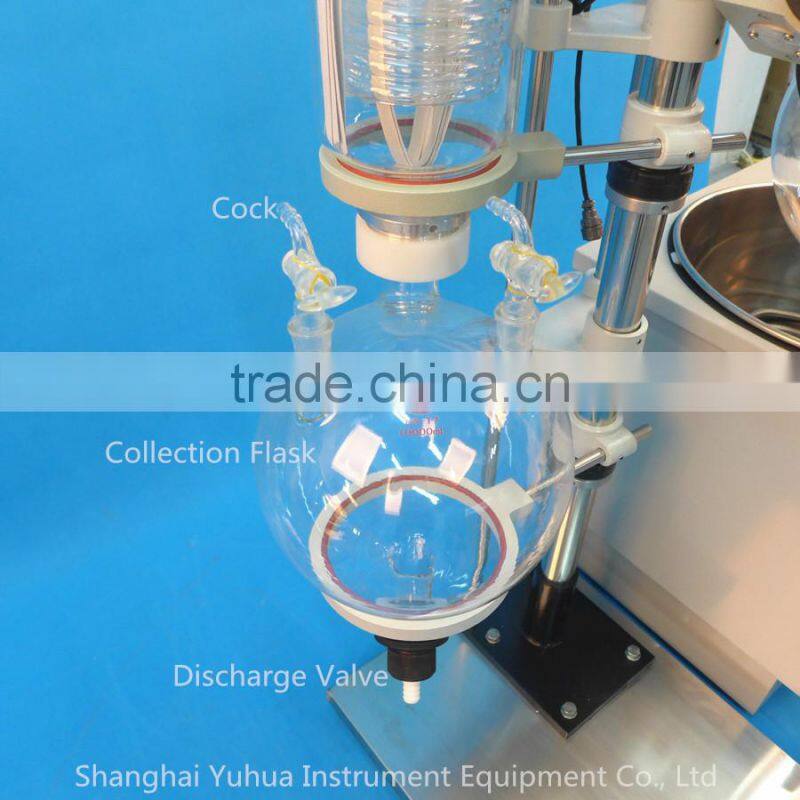

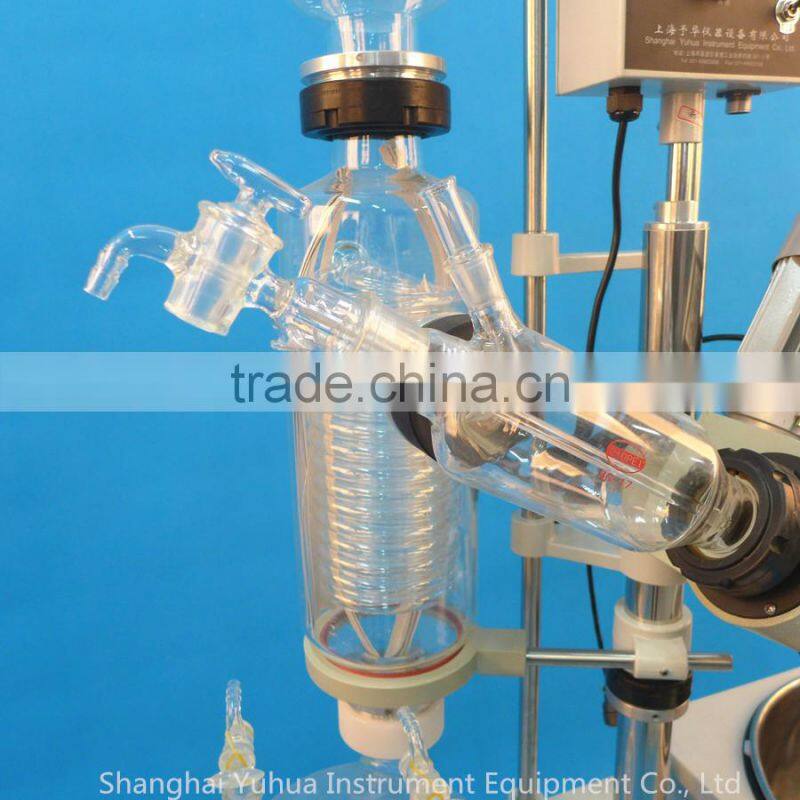

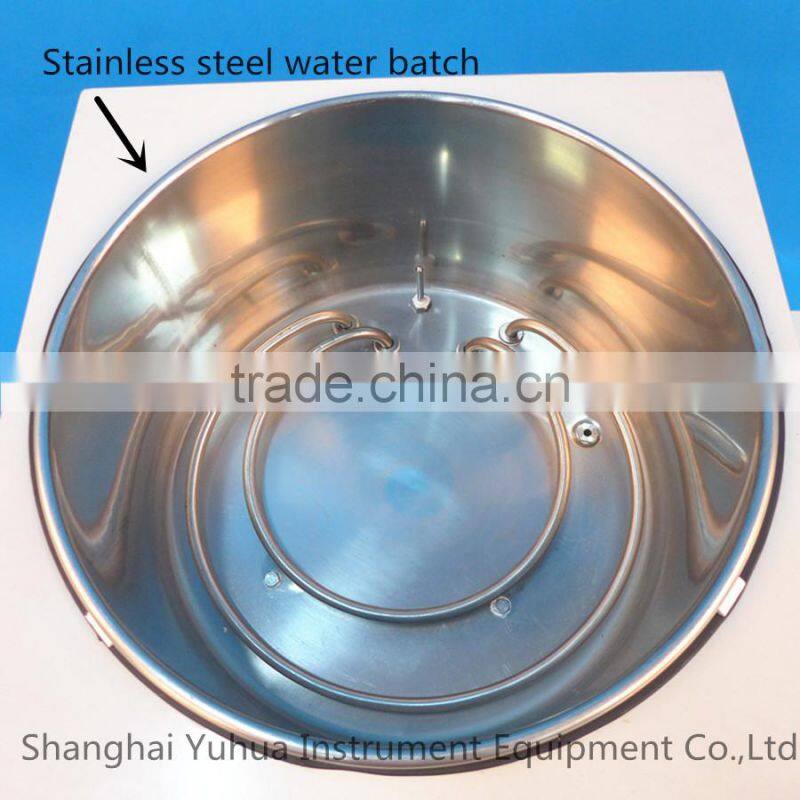

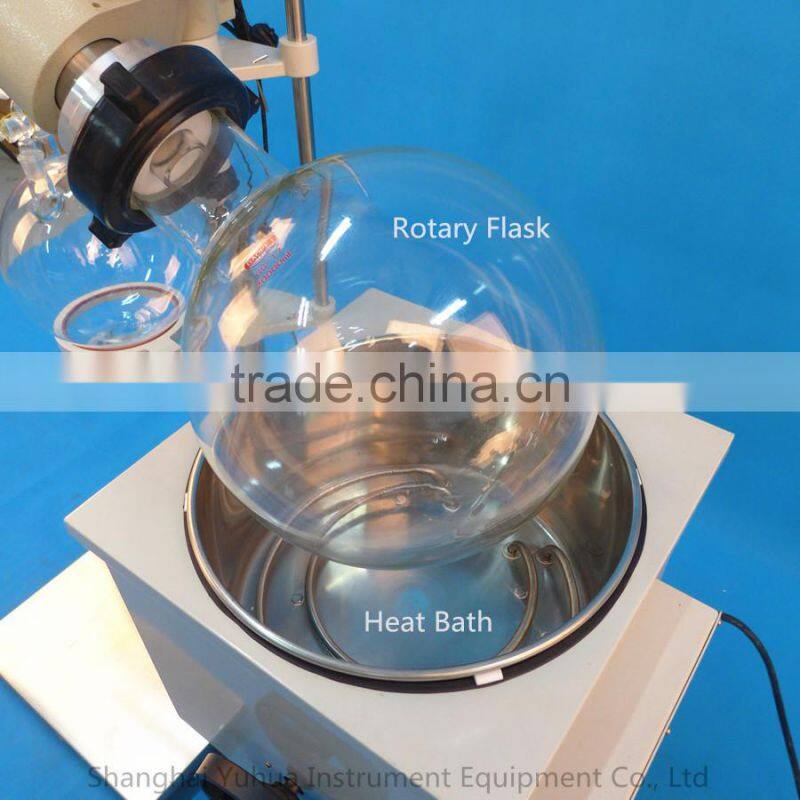

Details of vacuum evaporation system:

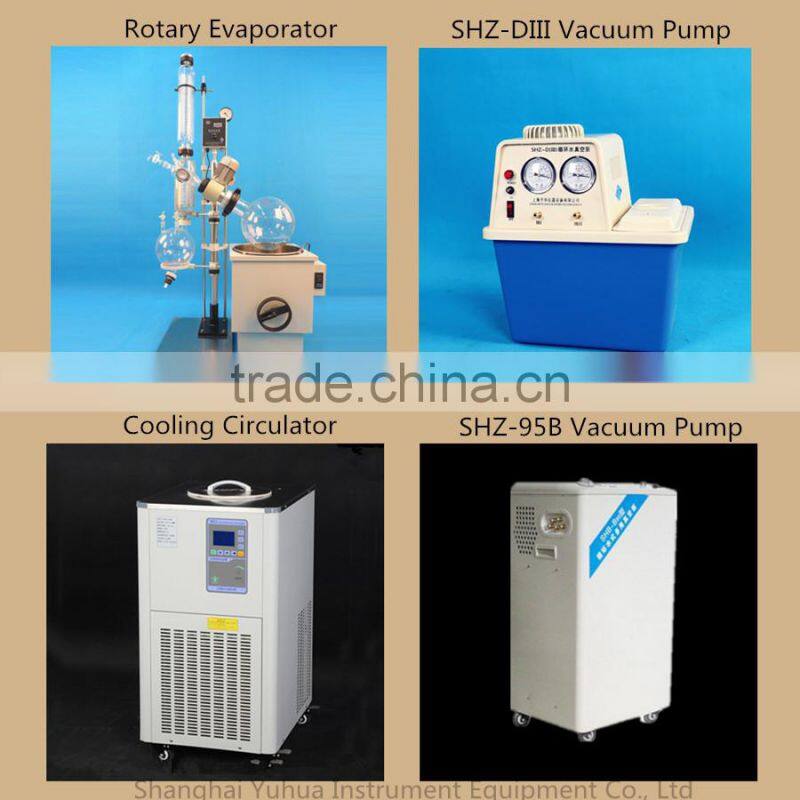

Matched equipment of vacuum evaporation system:
Packing of vacuum evaporation system:
-Treated wood case or carton case
-Both neutral and customized packaging can be available
Shipping of vacuum evaporation system:
Warranty of vacuum evaporation system:
- One year from the deliver date
- Provide lifetime service for whole equipments
Customized Service of vacuum evaporation system:
- According to your requirements and practical application
- Find the best solution
- Beautiful and practical
Also OEM Servic is available.
Shanghai Yuhua Instrument Equipment Co., Ltd was established in 2008, with more than 7 years development, we accumulated rich customer groups and huge amount of product application
experiences.
