80L Electirc Heating Mantle Single Layer Glass Reactor
Model |
F-1L |
F-2L |
F-3L |
F-5L |
F-10L |
F-20L |
F-30L |
F-50L |
F-80L |
F-100L |
Volume(L) |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
80 |
100 |
Rotating Speed |
0~2000 |
50~680 |
||||||||
Temp. Range |
Water: RT~90℃ Oil:RT~200℃ Heating Mantle:RT~399℃ |
|||||||||
Heat Power |
1500W |
2000W |
3000W |
6000W |
9000W |
|||||
Sealing |
PTFE(Teflon) Sealing |
|||||||||

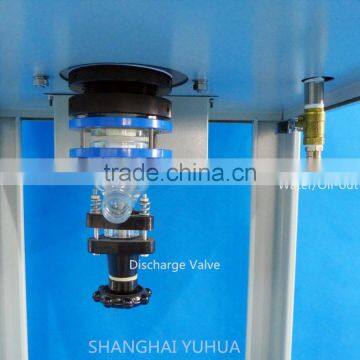

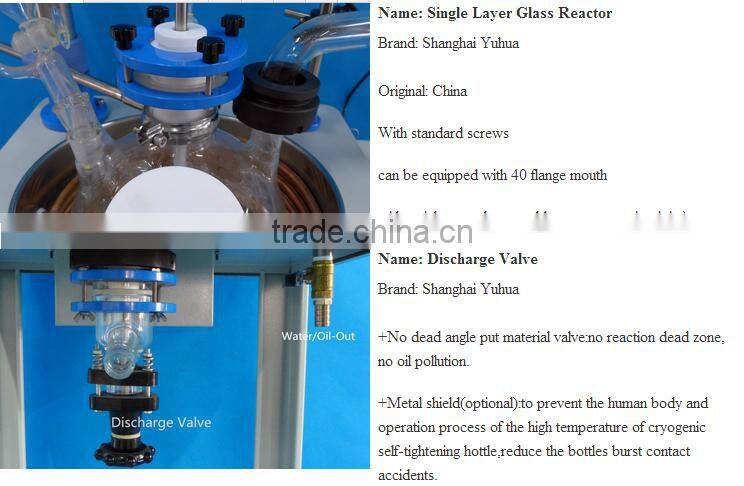

Discharge |
~ |
Bottom PTFE Discharge Valve |
||||||||
Glass Material |
3.3(GG-17) High Borosilicate Glass |
|||||||||
Power Supply |
Single Phase 220V, 50/60HZ |
|||||||||

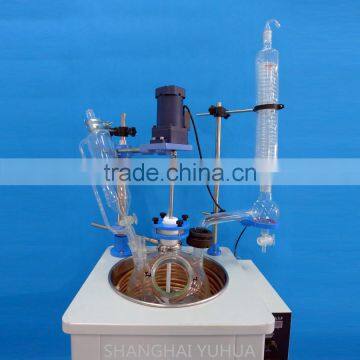

Single-layer glass kettle body design, through the water/oil bath or heating jacket to directly heat the kettle body,
To make the material react with constant temperature., and can provide a stir. In the set under the condition of
constant temperature, in the airtight container, under atmospheric pressure or negative pressure to Mixing and
reaction , and can be done the reaction solution reflux, distillation and extraction. It’s the ideal equipment in the
modern chemical samples, the experiment and the synthesis of new materials, biological chemical.

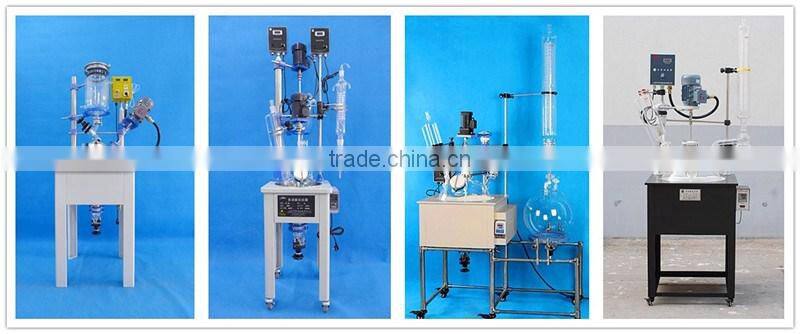

F-type monolayer glass reaction kettle (vacuum reactor) belong to the multi-function single-layer glass reactor
widely used in chemical, fine chemical, biological pharmaceutical synthesis of new materials at experiment and

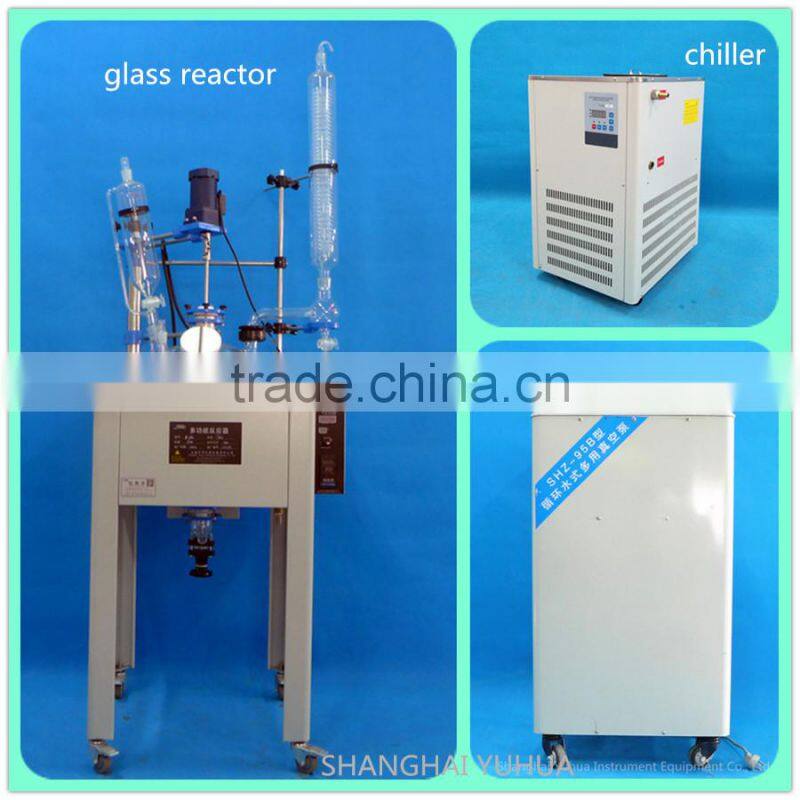

production process.The product can be with circulating water vacuum pump, low temperature cooling liquid
circulating pump, circulating oil bath and other supporting component system device, or for pilot production.
Our company can according to user needs processing custom modification of various specifications of glass reactor.
Main features of product
1. All the PTFE material valve ,no put pleural effusion ,no leakage,corrosion resistance
2. Frequency control, AC induction motor, digital display and constant rotary speed, no
brush, no spark, safe and stable and continuous working;
3. GG17 high borosilicate glass owns good chemical and physical properties, big bottle
mouth, hand-in cleaning;
4. PTFE (Ceramic) sealing mechanical components with proprietary technology,
maintaining the best vacuum degree(-0.098Mpa)
5. With brake Casters, convenient and reliable for moving;
6. It can be used as a distillation syntheses device.

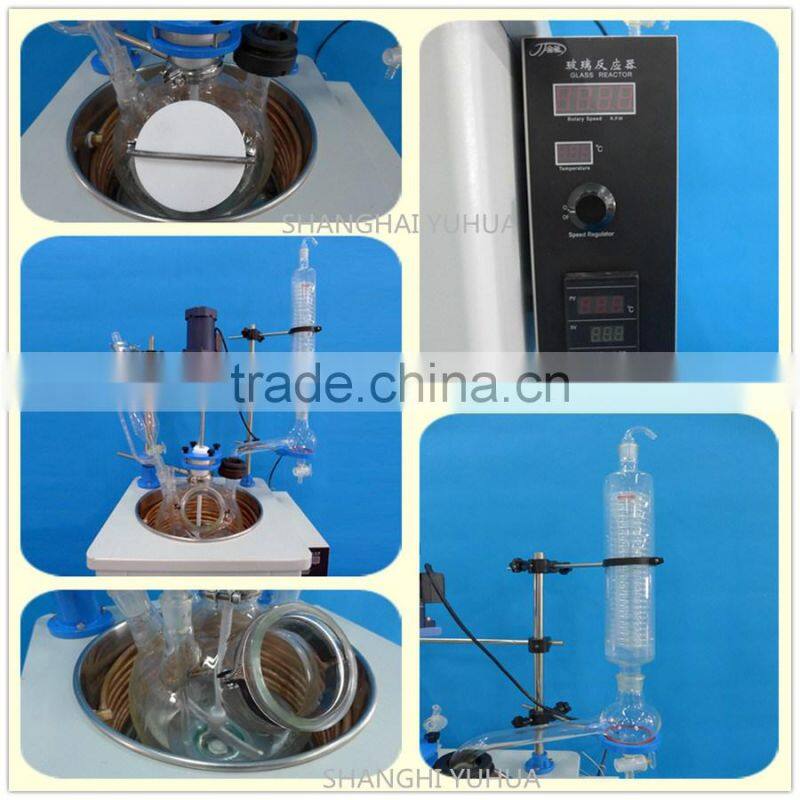

7. LCD display, easier and more convenient to measure temperature.
8. Heating equipment can use water / oil or heating mantle
( We can add the cooling coil and an anti-explosion device according to users’ needs)
Note: Also we can manufacture according your requirements or drawing.
Warranty
- One year from the deliver date
- Provide lifetime service for whole equipments
Customized Service
- According to your requirements and practical application
- Find the best solution
- Beautiful and practical
- Manufacture according to your drawing
Also OEM Servic is available.
1.How to pick up the best among these models?
Tell us your request ( For example: capacity, temperature range, pressure, etc ) on product and almost target price,
we recommend you the most suitable model.
2.How to transport the product?
By sea: More than 60kg or big quantity;Safe,cheap but slow;
By air to airport: Suit for big product or quantity but urgent a lot.
Usually 7-10 days arrive. Some direct flight can arrive at 3-5 days.
By Express delivery such as DHL,FedEx,TNT: Suit for small or not too heavy and very urgent product.
Generally 5-7 days arrive.
3.What's your payment term?
100% T/T paid before sending goods. Small amount payment can through Paypal or Escrow.
please confirm everything clearly before you make payment.
4.What’s your delivery time?
Within 5 working days after payment confirmed, customized products need 10~15 working days.
5.What kind of packing way for product?
For glass type product,it packed by wooden case,
For small and not easy break machines, usually packed by carton case;
All of the packing way is based on the safety of the machine,and the cost on
freight,we will offer you the most suitable and safety packing way!
6.What kind of warranty will be offer?
Most of our product we offer 1 years warranty,except glass part.
If there is a broken, pls send us email of the problem, pictures or a small video will be much better,
we will find the problem and tell you how to solve it.
we will send you a new part, and it is free in the warranty period.
7.How to place order or pay?
First, you can place order to us directly,we offer you PI (contract) with bank information,
you pay here,we ship the product,Every process is based on PI.
Second,you can place order on Alibaba directly, you pay online,after we confirm with them,
we will ship the products on time.
Shanghai Yuhua is one famous professional Chinese manufacturer of lab and pilot apparatus applied in
biochemical , pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass reactors , Vacuum Pumps and Heating & Cooling circulators, etc.
Yuhua products have been exported to more than 20countries such as USA, Canada, UK, Poland, Australia, Korea,
Israel, etc.
We believe that Yuhua will be your loyal friends!
