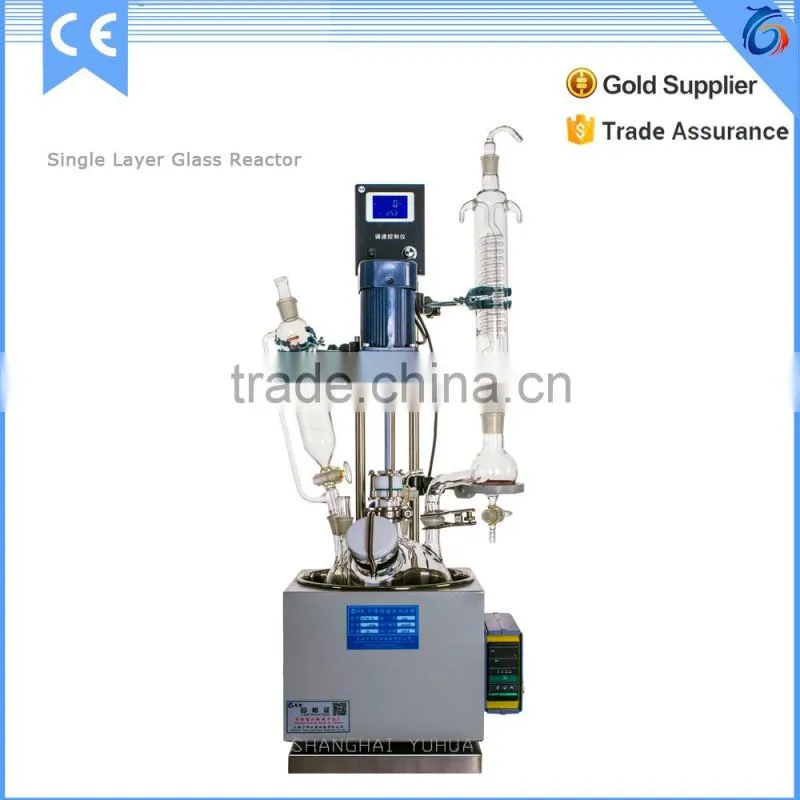

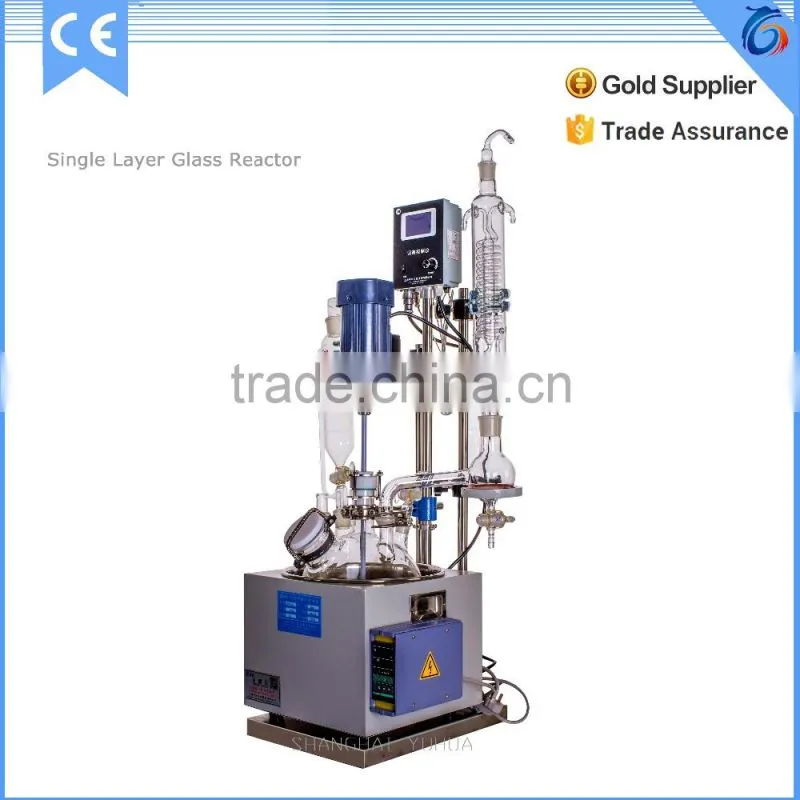

Multifunctional F- Single Glass Reaction Vessel for Chemical Processing

Multifunctional F- Single Glass Reaction Vessel for Chemical Processing thumbnail-1
Multifunctional F- Single Glass Reaction Vessel for Chemical Processing photo-1
US$ 500 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Contact Supplier Request Quote Chat Now
Shanghai Yuhua Instrument Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Type Reaction Kettle
Place of Origin Shanghai, China
Brand Name YUHUA
Model Number F-2L
Voltage 220V/50HZ
Power(W) 1.5kw
Dimension(L*W*H) 1080*350*540mm
Weight 38KG
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

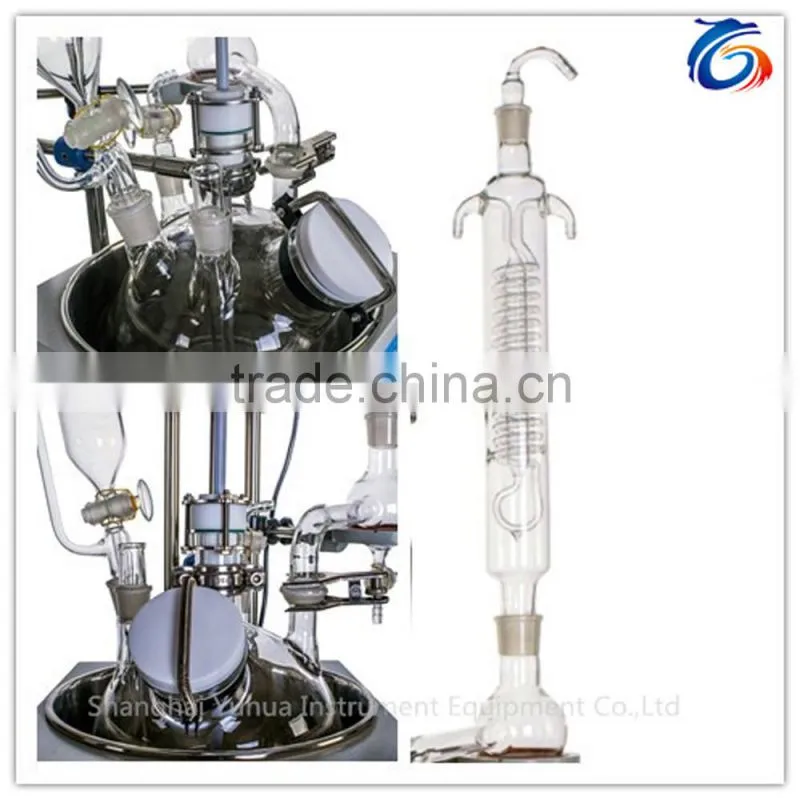

Single layer glass reactor is an equipment which is an collaboration of vacumm state,distiilashion


reflux,stirring,oil/water heating,heating mantle.It can do all kinds of biochemicial reactions and synthesis


 reactions at a constant temperature condition.It is also a closed system on the whole.

Main Features


1.Precision Mechanical seal stiring to keep high vacuum degree.

2.Frequency contral speed gear motor,smooth running,high torque,automatic booster,no spark,noise free,long life.

3.Circulating water/oil bath,heatingmantle can supply the heating origin;Cooling mode machine:cool chiller,convenient and practical

4.Explosion-proof series available.(We can add the cooling coil and anti-explosion device according to user's needs)


Model
F-1L
F-2L
F-5L
F-10L
F-20L
F-30L
F-50L
F-100L
Reaction Flask(L)
1
2
5
10
20
30
50
100
Stirring Power(W)
90
90
90
120
120
120
120
180
Rotational Speed(rpm)
0~2000
0~2000
0~2000
50~680
50~680
50~680
50~680
50~680
Temperature range(℃)
0~200
0~200
0~200
0~200
0~200
0~200
0~200
0~200
Heating Power(KW)
1.5
1.5
1.5
3
3
5
5
6
Static Temp. Control Range&Wave
±0.2℃
±0.2℃
±0.2℃
±0.2℃
±0.2℃
±0.2℃
±0.2℃
±0.2℃
Power Supply(V/Hz)
220V/50Hz 110V/60HZ
Dimensions
(mm)
430*430*930
450*450*950
450*450*1100
640*560*1880
690*610*2080
750*670*2250
780*710*2250
850*760*2500
Packing & Delivery

Packing

-Export wooden case or carton case.

-Both neutral and customized packaging can be available .
-Depends on the dimensions of the package and your requirements

Shipping

Depends on the dimensions of the package and your requirements, we can deliver the goods by air, by sea, by train or by express.

By sea: More than 60kg or big quantity;Safe,cheap but slow;

By air to airport:
Suit for big product or quantity but urgent a lot. Usually 7-10 days arrive.
Some direct flight can arrive at 3-5 days.

By Express delivery DHL,FedEx,TNT:
Suit for small or not too heavy and very urgent.

Related Products

Sealed high temperature circulating device

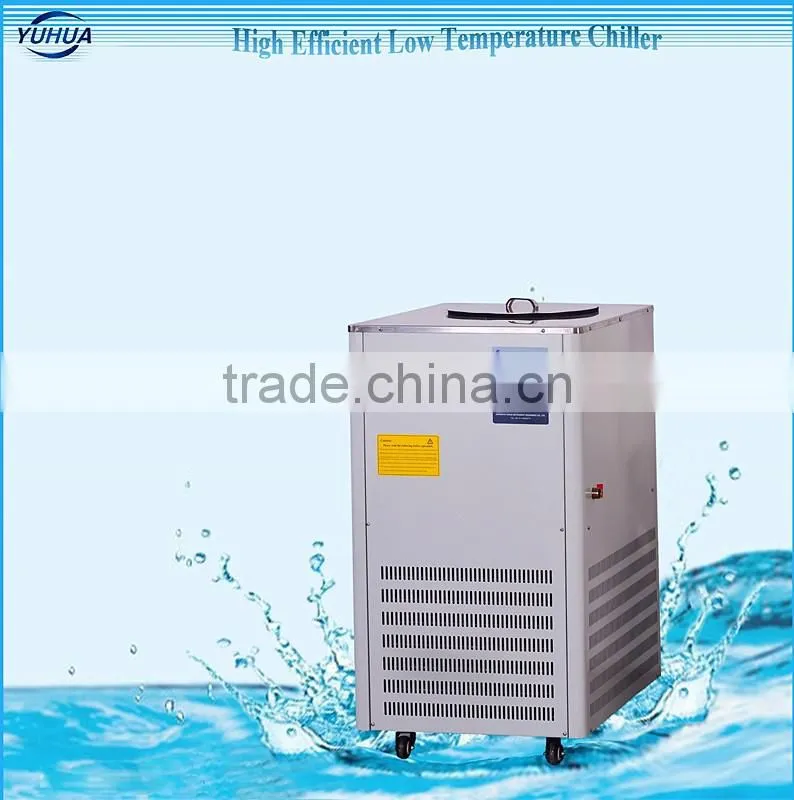

Low temperature cooling liquid circulating pump

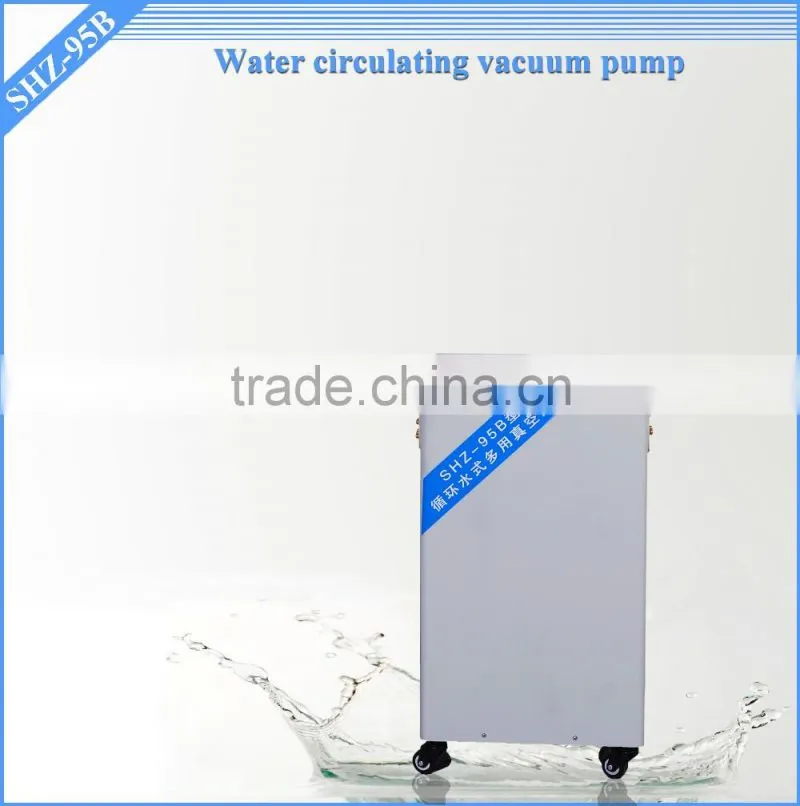

Water circulating vacuum pump

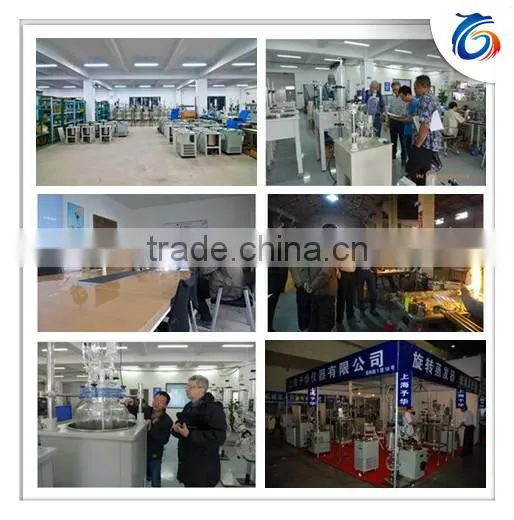

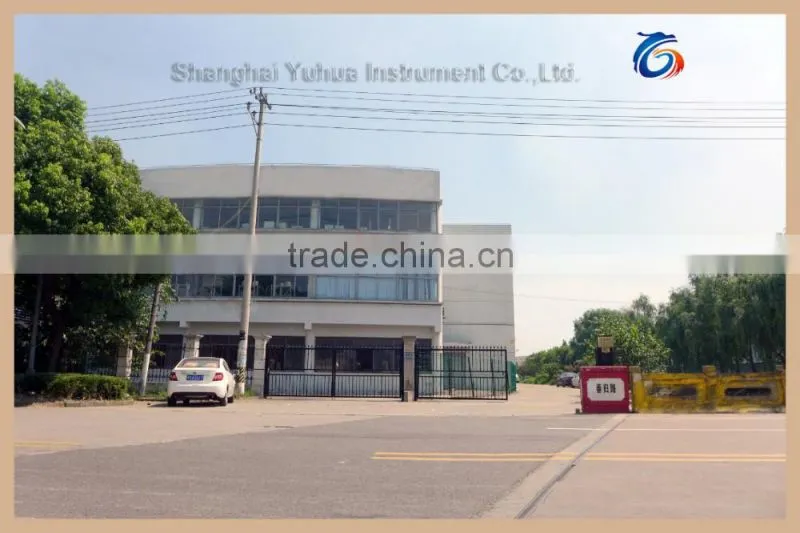

Our Company

About Us

Shanghai Yuhua is one famous professional Chinese manufacturer of lab and pilot apparatus applied in biochemical , pharmaceutical, fine chemical and research field.

Main products are Rotary Evaporators, Glass reactors , Vacuum Pumps and Heating & Cooling circulators, etc.

Yuhua products have been exported to more than 20countries such as USA, Canada, UK, Poland, Australia, Korea, Israel, etc.

We believe that Yuhua will be your loyal friends!

Why Choose us?

- With more than 10 years experiences.

- Professional engineers and workers.

- Experienced OEM service made to customer specifications.

- Compliance with the advanced world standards and requirements.

- Highest quality in the most cost effective way and prompt delivery.

- Dedicated customer service and technical support.

Our Service

Warranty:


-One year from the deliver date

-Provide lifetime service for whole equipments

C

-Accordind to your requirments and practical application

-Finnd the best solution

-Beautiful and practical

-OEMservice



Why Choose us?

-With more than8 years experiences.

-Professional engineers and workers.

-ExperiencedOEMservice made to customer
specifications.

-Compliance with the advanced world standards and requirements.

-Highest quality in the most cost effective way and prompt delivery.

-Dedicated customer service and technical support.



FAQ

1. Are you manufacturer or trading company?
    A: We are professional manufacturer of lab instruments with a history of 7 years.

2. How to choose suitable equipment ?
    A: You tell us your requirements (For example: capacity, temperature range, pressure, etc ),

          we will recommend you the best suitable equipment.

3. What’s your delivery time?
    A: Within 5 working days after payment confirmed, customized products need 10~15 working days.

4. How to solve the problem of your equipment?
     A: Please send us email of the problem, pictures or a small video will be much better, we

         will find the problem and tell you how to solve it. If there is a broken, we will send you a

         new part, and it is free in the     warranty period.


5. Do you still provide service beyond the warranty?
     A: Yes. Our warranty is one year from the delivery date, we also provide service beyond the
           warranty period, but it will not free for the broken parts.
