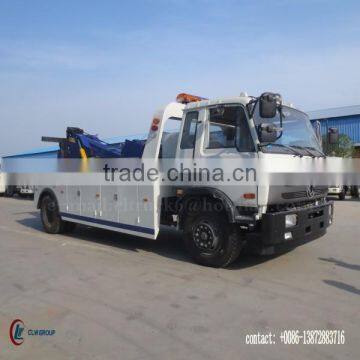

190hp DONGFENG 4*2 Wrecker Body 16 ton
Wrecker Body, is also called as towing truck, wrcker flatbed, or towing equipment truck,is mainly used
for safety salvage of vehicles subject to city road, suburb way, highway,airport and bridge road. It is
suitable for medium and smallsized cargos, cars and other special vehicles, which are allowed within the
technical parameters of this kind. It is made of the chassis, hoisting equipment, lifting and towing equipment, hydraulic system, electric control system, truck body and the tool boxes. Road wrecker can hoist, lift, tow and be with other special functions, mainly used in highway and
city road obstacle handling.
Product Notes:
1 DONGFENG 4*2 chassis ,190hp
2 Max towing 16ton, lifting 8 ton
3 Professional technology
4 Reasonable price
5 Classification: belongs to Towing lifting combined Wrecker
Main Parameter of 190hp DONGFENG 4*2 Wrecker Body 16 ton
Whole truck Main Technical Parameter | |||
Product Model |
DONGFENG Wrecker Body |
Product Brand |
DONGFENG-CLW |
Wheelbase(mm) |
5100 |
Overall Dimension(L*W*H)(mm) |
8200×2490×2950 |
Curb weight(kg) |
11005 |
Axle number |
2 |
Approach/ departure angle (° ) |
20/10 |
Max Speed (km/h) |
90 |
Cab capacity |
3 |
Cab Type |
One and half row, air conditioning |
Chassis Technical Parameter | |||
Chassis Model: |
EQ5161 |
Chassis manufacturer: |
DONGFENG MotorCo., Ltd |
Gear Box |
6 shift |
Transmission type: |
Manual |
Brake System |
Air brake |
Number of Tire |
6 with a spare |
Steering Type |
LHD with Power steering |
Traction Type: |
4*2 |
Leaf Spring number: |
9/14+10,9/10+8 |
Tire size/type |
10.00-20,10.00R20 |
Engine specification | |||
Engine Model: |
B190 33
|
Engine Brand |
DONGFENG |
Fuel type: |
Diesel |
Displacement(ml) |
5900 |
Emission stand |
Euro 3 |
Power(kw) |
140(190hp) |
Warranty |
12 months, from the date of supply |
||
Superstructure parameter |
1. Wrecker Max lifting Weight(kg):8000Kg, Max towing Weight(kg): 16000kg, max hoisting 12000kg; |
||
2. Equipped with two 8ton winchs, 16mm thickness 30m long steel rope | |||
3 Adopt integrated compartment cargo box, two section crane arm, Two Auxiliary wheel, two L –shaped Palette fork, one Warning lamp with Siren, 2 units strap | |||
More Picture of 190hp DONGFENG 4*2 Wrecker Body 16 ton:
Other Wrecker body show as the following:
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.It has registered trademark "CHENLIWEI" and the products code is “CLW”. It has solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 , the 3C Certification(China Compulsory Certification) and other certifications that export needed. It own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc.
ChengLi Special Automobile is the most important partner of DongFeng , FAW , JAC, FONTON ,Sinotruck and other automlbile company. It not only design and manufacture all kinds of special automobiles and fittings as per the customer’s request ,but also sale DongFeng ,FAW ,JAC, FONTON, North Benz, Sinotruck and other large automobile manufacturer’s chassis, whole vehicle and the spare part.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks always strives for the survival by the quality, pursue of development by efficiency. It has always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea. Credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments;
Contact Information:
The above information is just for your reference, if you have any other questions
or need more truck picture or detailed information, please feel free to contact with me
via e-mail or phone, I will try my best to help you. You can count on me. Please check
my contact information as below:
