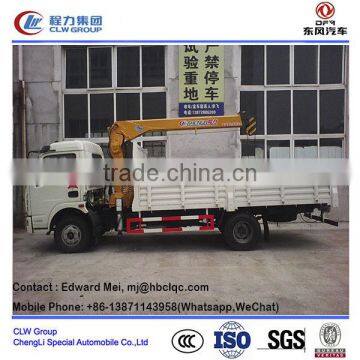

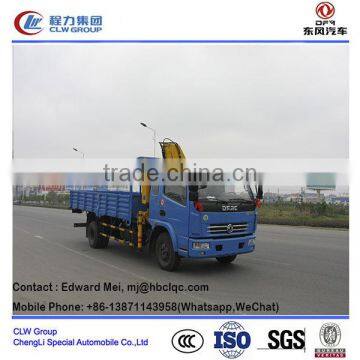

dongfeng 4*2 type 120 hp 6 tons truck mounted crane, 6 tons telescoped crane truck, 6 tons hiab knuckle crane truck
CLW Group_ChengLi Special Automobile Co.,Ltd, Which is a big and famous special function truck manufacturer in China, We produce many kind of special function vehicles, also include the truck mounted crane.Currently we produce the truck mounted crane range from 3 ton to 25 ton, heavy duty type from 25 ton to 200 ton.Welcome for your inquiry.
dongfeng 4*2 type 120 hp 6 tons truck mounted crane, 6 tons telescoped crane truck, 6 tons hiab knuckle crane truck
| Item | Unit | Description | ||||||||
| Model | Dong Feng Brand Truck mounted crane | |||||||||
| Dimension | mm | 7050*2420*3150 | ||||||||
| Box dimension | mm | 4300*2050*550 | ||||||||
| Curb Weight | Kg | 5330 | ||||||||
| G.V.W | Kg | 11495 | ||||||||
| Wheel Base | mm | 3800 | ||||||||
| F/R track base | mm | 1831 / 1640 | ||||||||
| F/R Axle-Load | Kg | 4000 / 7000 | ||||||||
| Suspension | Steel Spring | |||||||||
| Approach/Departure angle | . | 22 / 12 | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Tire Specification | Model | 7.50-16 , 6 Unit +1 Spare Unit | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Engine | Model | CY4102-E3F | ||||||||
| Emission/Kw | 3856 cc, 91 Kw | |||||||||
| Horse Power | 120 Hp | |||||||||
| Power | 345 N.m-1300~1500r/min | |||||||||
| Type | Diesel, 4cylinder, Turbocharge , water cooling. | |||||||||
| Brand | Dongfeng Chaoyang Engine Power Co.,Ltd | |||||||||
| Gear box | model | 5F & 1R , Manual | ||||||||
| Brand | Dongfeng brand | |||||||||
| Clutch | Type | ¢430mm ,Hydraulic control with air booster, pulling | ||||||||
| Electronic | V | 24 | ||||||||
| Fuel Tank | Liter | 80 | ||||||||
| Brake System | Type | Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Manual Reversable, Manual Windows, | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Air Condition | Yes | Radio, CD. | ||||||||
| Crane Specification | ||||||||||
| Model | Range(radius) | height | Distance of Support leg | Description | ||||||
| m | m | m | ||||||||
| SQ5SA2 | 8 | 10 | 5.1 | 5 tons,three arms | ||||||
| 2.5m | 3m | 3.5m | 5m | 5.5m | 6.5m | 7.5m | 8m | |||
| 5000Kg | 4600kg | 2828 | 1580 | 1360 | 1050 | 830 | 750 | |||
dongfeng 4*2 type 120 hp 6 tons truck mounted crane, 6 tons telescoped crane truck, 6 tons hiab knuckle crane truck
Dong Feng 6 tons truck mounted crane, 3 tons, 4 tons, 5 tons, 6 tons telescoped crane truck, 6 tons hiab knuckle crane truck
Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck
oil tank truck, oil tank trailer.
Vaccum suction truck.
Garbage Truck
high platform working truck.
Dump truck.
concrete mixer truck, concrete pump truck.
Refrigerator truck.
Wrecker truck.
Road sweeper truck.
Chemical liquid transporting truck.
All kind of semi trailer.
LPG gas tank, LPG truck and trailer.
Fire fighting truck.
Welcome to your inquiry.
CLW Group--- ChengLi Special Automobile Co.,Ltd
1. What do we do ?
We are an integreted special truck manufacturer and sale. all trucks are new customized according to customer requirement.
2.Is there any branch Company in oversea ?
Currently there is no oversea branch.
3.What's your warranty of your product ?
One year warranty time or 10000 Km driven.
4. How to buy a truck from your company ?
Welcome to your inquiry about our trucks, firstly please check with the sales manager for your demand in detail, then sales manager will make an offer to you according to your demand, If offer is acceptable, sales manager will send you proforma Invoice which will show our company account( we never provide personal account for customer), Please make the Transfer to our company account, then we will arrange production when confirming.
5. What about the payment method ?
We accept T/T, and L/C.
T/T 30 % in advance, we could arrange production, then left 70% should be done before truck loading on ship.
