Home > Manufacturing & Processing Machinery > Crane > Truck Crane > Crane,Mini Crane 2-5tons,Truck Mounted Crane,Hiab Crane
US$ 5,000 - 12,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
all
Rated Loading Capacity:
2-5tons
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2ton Mini Industrial Crane,tadano Crane PriceUS$ 5,000 - 10,000MOQ: 1 Unit -
10ton Gantry Crane,tower Crane,Self-raised Tower CraneUS$ 19,999 - 20,100MOQ: 1 Unit
-
Dfac 4x2 Used Truck Crane,truck Mounted CraneUS$ 14,000 - 19,000MOQ: 1 Unit
-
7ton Truck With Crane,tower Crane,used Telescopis CranesUS$ 14,000 - 19,000MOQ: 1 Unit
-
8T Straight Boom With Crane Truck,boom BoomUS$ 28,500 - 68,500MOQ: 1 Unit
Condition
New
Application
all
Rated Loading Capacity
2-5tons
Max. Lifting Load
5tons
Max. Lifting Height
7.5m
Span
3.5
Place of Origin
Hubei, China
Brand Name
Dongfeng
Model Number
SQ4SA
Certification
CCC,ISO
Warranty
12months
After-sales Service Provided
Overseas third-party support available
Crane,Mini Crane 2-5tons,Truck Mounted Crane,Hiab Crane
Description of Truck:
Item | unit | parameter | |
| Vehicle model | CLW5090JSQ Truck With Crane | ||
| Chassis model | EQ1092F19DJ1 | ||
| Overall dimensions | mm | 8000×2470×2940 | |
| Fact loading | kg | 5000 | |
| GVW | kg | Appro×9600 | |
| Rated loading capacity | Appro×3950 | ||
| Mass in working order | Appro×5455 | ||
| Body internal dimensions | mm | 4300×2294×550 | |
| Wheel base | 4700 | ||
| F/R track base | 1810/1800 | ||
| Approach/departure angle | ° | 34/16 | |
| Exhaust/hp | ml/kw | 4257/105 | |
| Max speed | km/h | 70 | |
| Tire specification | 9.00-20 | Engine type | YC4E140-20 |
| Traction system | 4×2 | transmission | 5-speed with over drive |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 |
| Equipment | Crane can be selected | ||
| Hydraulic valve is universal in the world on the safe side;three point floating type to protect crossbeam of the truck;all hydraulic pressure and 360°turning;new H-shape type; high precise drawn tube;24°tie-in. | |||
| Engine | GuangXi YuLin diesel engine | ||
| Production cycle | 7-10days | ||
| Warranty | 12 month,from the date of supply | ||
| Factory price | FOB/DAF/CNF/CIF | ||
The parameters of Crane as below :
Maximum lifting capacity (kg) | 3200 | Lifting height (m) | 7.5 | the arm number of crane | 2 | |
| Working radius (m) | 5.8 | Outrigger span(m) | 3.5 | The type of crane arm | pentogan | |
| Rotation angle (.) | 400 | Installation space | 850mm | |||
| Working range (m) | 2.1 | 3.7 | 5.8 | |||
| Rated weight (kg) | 3200 | 1600 | 900 | |||

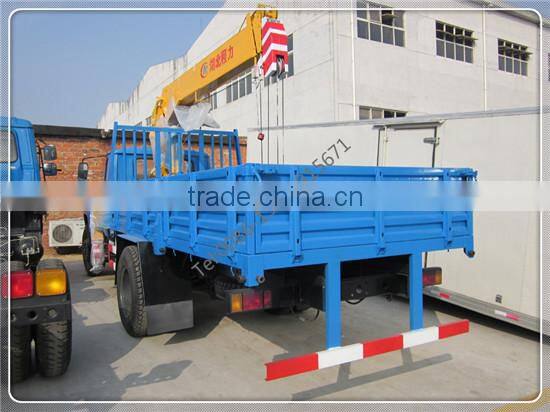

More pictures of truck crane
Factory Show:
We are so proud of Chengli,because its annual production value increased from 500,000USD into 200,000,000USD in only 8 years !
We are so proud of Chengli,because its cooperated customers come from more than 50 countries in the world !
We are so proud of Chengli,because its export value stay in NO.1 for more than 5 years at special truck industry in Suizhou !
We are so proud of Chengli,because it give us chance to make friends with you !
