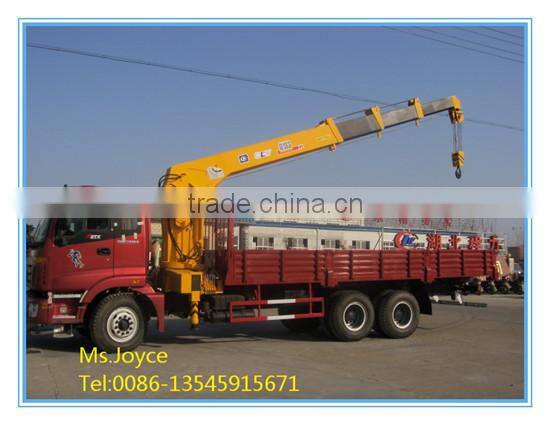

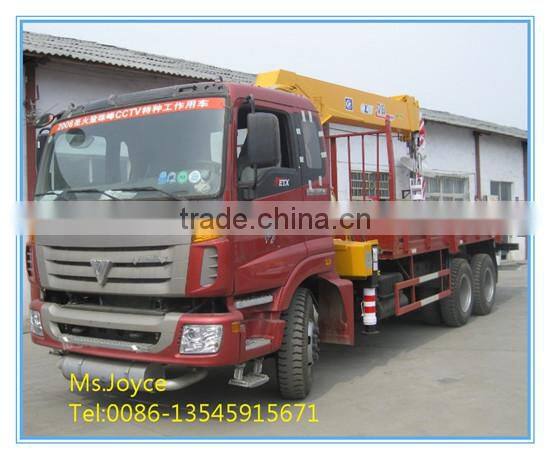

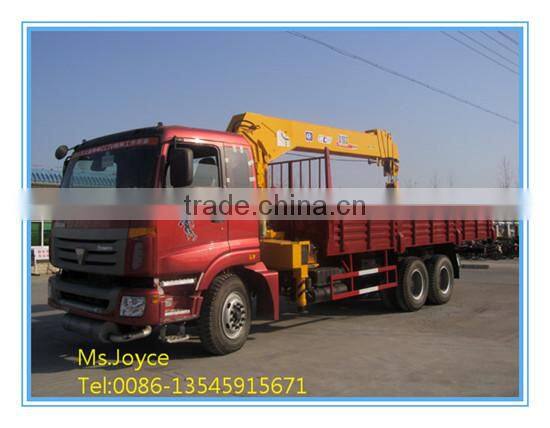

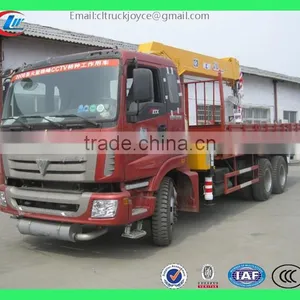

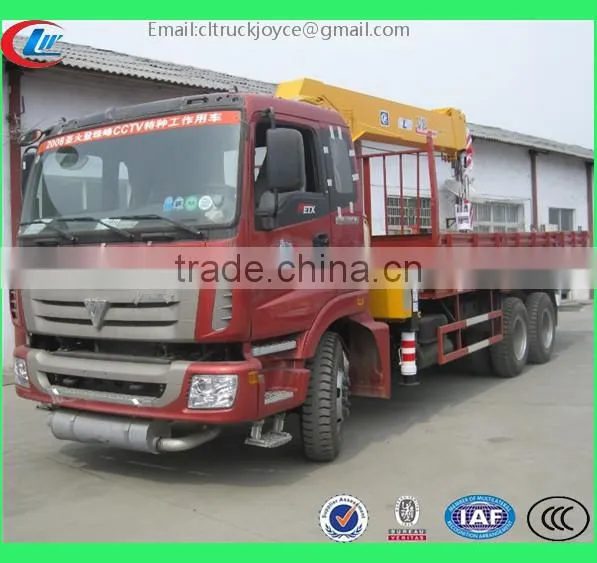

Foton Crane Truck 10 Ton,Telescopic Boom Truck Mounted Crane

Name: Foton Crane Truck 10 Ton,Telescopic Boom Truck Mounted Crane
Brand: Foton
SKU: 141642030
Availability: InStock

US$ 19,000 - 45,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

heavy truck crane

Rated Loading Capacity:

14880 kg

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application heavy truck crane

Rated Loading Capacity 14880 kg

Rated Lifting Moment 25 t.m

Max. Lifting Load 10000 kg

Max. Lifting Height 14.3 m

Span 2.28-5.9m

Place of Origin Hubei, China

Brand Name Foton

Model Number CLW5253JSQB3

Certification ISO, CCC, BV, CCC,ISO

Warranty 12 months, 1 year

After-sales Service Provided Overseas third-party support available

Foton Crane Truck 10 Ton,Telescopic Boom Truck Mounted Crane

1.Foton famous chassis crane truck,truck with crane 10ton

2.Good quality Telescopic Boom Truck Mounted Crane

3.Factory price truck with crane

4.With ISO,BV and 3C certification mobile crane

Truck Specification :

ITEM	UNIT	PARAMETER
Vehicle		DONG FENG Truck with Crane
Product number		CLW5253JSQB3
Overall dimensions	mm	11200×2490×3800
GVW	kg	Appro×25000
Loading capacity		Appro×14880
Mass in working order		Appro×9925
Cargo van dimension	mm	7800×2294×550
Wheel base		2000+4800
F/R track base		1900,1900/1847
Approach/departure angle	°	20/10
Exhaust/hp	ml/kw	5990/210
Max speed	km/h	85
Tire specification	10.00-20	Engine type	Phaser210Ti-30
Traction system	6×2	transmission	7-speed
Number of axles	3	Emission standard	Euro 3
Operation control system	Electrically hydraulic control	Allowable passengers in cab	3
Engine	diesel engine
Production cycle	10-15 working days
Warranty	12 month,from the date of supply

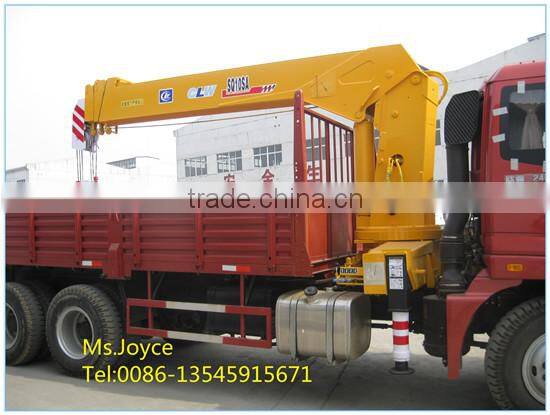

Crane Specification

Maximum lifting weight (kg)				10000
Cross section form		pentagon		Slewing mechanism		Rotation speed			2 r/min
No.of arm		4				Rotation angle			360 degree
Length		4.78-12.4 m		Outrigger		H leg
Maximum working radius		12.25 m				Cross distance			2.28-5.9 m
Extend speed		0.2 m/s		Hydraulic system		Pressure			21 mpa
Amplitude range		1-70 °				Oil tank volume			150 L
Rise arm speed		3 °/s		Safety device		Switch alarm
Max lifting height		14.3 m		Self weight		3800 (kg)
Hook speed		8 m/min		Installation space		1250 mm
Steel wire rope diameter		12 mm
Steel wire rope length		115 m
Lifting Capacity Comparison Table
Working radius (m)	2.5		4.5	5.5	6.5		7.5	8.5	10.5	12.25
Load capacity (kg)	10000		4850	3850	3250		2800	2450	1950	1600
