Hot Sale Big Fuel Tanker Trailer

Hot Sale Big Fuel Tanker Trailer photo-1
Hot Sale Big Fuel Tanker Trailer photo-2
Hot Sale Big Fuel Tanker Trailer photo-3
US$ 15,500 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Aluminum / Alloy
Certification:
DOT
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Type Semi-Trailer
Material Aluminum / Alloy
Certification DOT
Size 12500*2500*1500mm
OEM No. 73847328472
Max Payload 40 Ton
Place of Origin Hubei, China
Brand Name CLW, CLW
Model Number CLW9403GYY, CLW9403GYY
Product Description

hot sale big fuel tanker trailer

Model Number
CLW9403GYY
Total Weight
39950 kg
Rated Load
28500 kg
Tare Weight
9000 kg
Volume
44.6M3
Compartment No & Valve
5 isolated compartments with loading and unloading valves, loadingandunloadingpump.
Wheel Base
7000+1310+1310 (mm)
Tyre Specifications
11.00R20-18PR 12R22.5-18PR
No. Of the Tyres
12
Axle Brand
FUWA (BPW optional)
No. Of the Axles
3
Axle-load
24000 kg
King Pin
50#/90#
Landing Leg
28ton
Pieces of leaf-spring
10(8)
Suspension
independent stamping steel rigid suspension (or air suspension)
Departure Angle
14.8
Front/Rear Overhang
2080 mm
Outside Dimensions (mm)
13000X2500X3800 (LxWxH)
(Interior )Tank shell Dimensions (mm)
12800*2500*2300 (LxWxH)
Material of the Main Beam
Q345B manganese plates, automatic submerged arc welded
Brake System
Dual line braking system /ABS
Brake Air Chamber
Six double chamber
Electrical
24V 7 ways(7 wire harness)
Usage
The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products
Characteristics
1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine (air compressor unit), providing compressed air.
Other Specifications
The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer

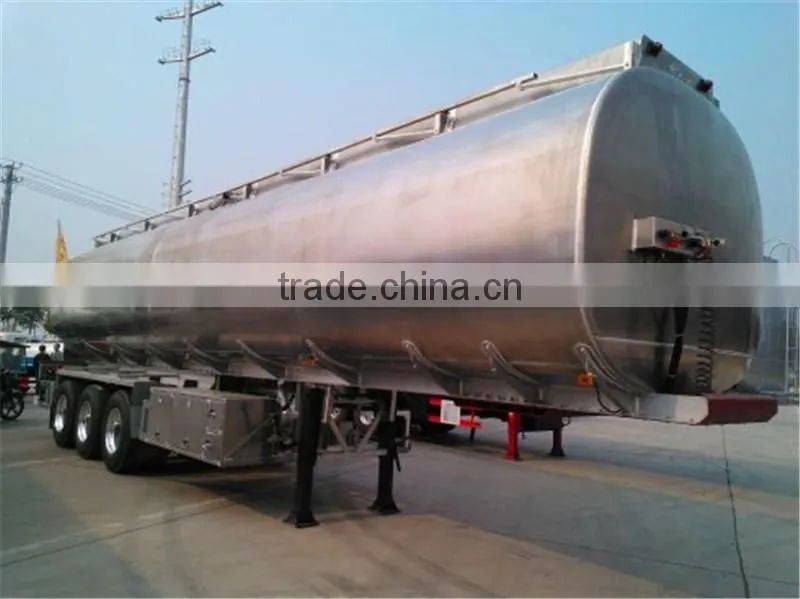

Detailed Images

A semi-trailer truck is the combination of a tractor unit and one or more semi-trailers to carry freight. It is variously known as a transport (truck) in Canada; semi or single in Australia; semi, tractor-trailer, big rig, or eighteen-wheeler in the United States; articulated lorry, abbreviated artic, in Britain and Ireland.
A semi-trailer attaches to the tractor with a fifth wheel hitch, with much of its weight
borne by the tractor. The result is that both tractor and semi-trailer will have a
distinctly different design than a rigid truck and trailer.


Our Company

Our company


Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".
It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
 The company is a high-tech enterprise in hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.

Advantages of our products

1.Our company ChengLi Special Automobile Co.,LTD has manufactured special truck for decades.
2.Our company possesses some advanced technologies and mature craftworks.
3.The truck produced  by us has high quality and low price.

4.Our  trucks are equiped with high quality and efficient equipments.
5.Our trucks are completely produced according to your demands and needs, they are special, professionnel and unique  for you.

Factory show

Our company has more than 2000 well-trained workers in the factory to deal with the orders from all over the world. And we have a  professonnel engineer team,  QC team to insure your products perfect.

Intruduction of other productions

The Group Chengli special truck has a rich kinds of products, 18 series and over 300 products, such as water truck, fuel truck, fecal suction truck, dumper, LPG, van truck, semi-trailer, fire fighting truck, wrecker, flat transport truck, pressure vessel, high presseure cleaning truck, bulk cement truck, chemical liquid truck, sweeper truck, garbage truck, water/insulatead/milk truck, mixser truck, high–altitude truck etc…

Certifications

Our partners


Our customers

Africa and Asia are the two major exporting regions of our's. We mostly export our product to the following countries:

Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.

Packing & Delivery


Packaging Details: nude,waxed packing,roro ship and so on,depending on your requests.

Delivery Detail: 30 workdays

1. Factory direct supply: reliable quality and fast delivery;
2. Warranty:from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.

FAQ

1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.

2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.

3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.

4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.


5. How long could we receive our goods?

 It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.

6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person.
