Home > Transportation > Trailer > Truck Trailer > CLW 3 Axles Cooking Oil Trailer 38000L

CLW 3 Axles Cooking Oil Trailer 38000L

US$ 4,600 - 47,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, 3C

Contact Supplier Request Quote Chat Now

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, 3C

Size 12990*2500*3850

OEM No. CLW

Max Payload 29000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW9400

CLW 3 Axles Cooking Oil Trailer 38000L

Cooking Oil Trailer is also called cargo semitrailer ,mobile transport truck,tanker truck semitrailer,etc, widely used in transporting and discharging gasline, diesel and other fuel product. We can supply tanker ranged from 4000L to 45000L,Tanker Semitrailer ranged from 30000L to 6000L. Experience of ten years of manufacturing pressure vessel ensure reliable quality. Use this type of semitrailer can improve transport efficiency 30-50%, reduce cost 30% -40%, reduce fuel consumption 20%- 30%.

Main Parameter of CLW 3 Axles Cooking Oil Trailer 38000L

Main Technical Parameter
Product Model	CLW Cooking Oil Trailer	*Overall Dimension(LWH)(mm)*	12990×2500×3850
Tank Volume(L)	38000	Tank Dimension(mm)	Front-end(3700×2480×1800) rear-end(8900×2480×2100)
Payload(kg)	29000	Front/ rear suspension(mm)	-/1440
Curb weight(kg)	11000	Leaf Spring number:	-/8/8/8,-/4/4/4
Axle number	3	Front/Rear axle load(Kg)	-/39000 (three axles combined)
Wheelbase(mm)	7200+1350+1350	Rear tread(mm)	1840/1840/1840
Tire size	11.00R20 12PR	Tire No:	12
Warranty	12 months, from the date of supply
Remarks	1. Equipped with 100mm thickness Insulation layer , tank material: carbon steel, or stainless steel,Surface is 2mm stainless steel
	2. Equipped with 90# King kin, 13ton axle, 28ton manual outrigger
	3. This semi trailer truck mainly used to transport cooking oil.

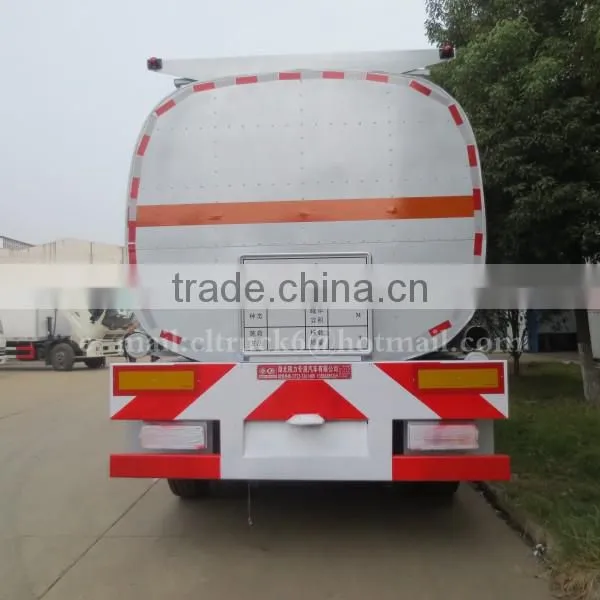

This Cooking Oil Trailer show as the following:

28 ton manual Operation Outrigger of Cooking Oil Trailer

Cooking Oil Gravity mouth of Cooking Oil Trailer :

Large Water Tank of Cooking Oil Trailer :

Brief Introduction of Company:

ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.

Our certificates;

Production Equipments:

Oil Trailer series:

Contact Information:

If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
