Front Loader Road Sweeper /with Water Washing Function
US$ 10,000 - 70,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dust Cleaner Road Sweeper /with Water Washing FunctionUS$ 10,000 - 70,000MOQ: 1 Unit -
Dongfeng 4*2 4*4 Type 190hp 8 Ton Road Sweeping VehicleUS$ 47,000 - 52,000MOQ: 1 Unit
-
Dongfeng Front Loader Road Sweeper 8 m3US$ 10,000 - 50,000MOQ: 1 Unit
-
Dongfeng 4*2 Type 120hp 6 Ton Manual Road SweeperUS$ 35,000 - 40,000MOQ: 1 Unit
-
Foton 1 m3 Road Sweeper HydraulicUS$ 10,000 - 30,000MOQ: 1 Unit
Condition
New
Place of Origin
Hubei, China
Brand Name
CLW
Model Number
CLW
Dimension(L*W*H)
8586*2490*2980
Weight
11350
Certification
ISO CCC
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
front loader road sweeper /with water washing function
Road sweeper truck, Road cleaning truck, which is used for road enviroment maintainess.
our company product two kind of road cleaning truck, side brusher with rear suction model, vaccum suction model, and the model that side brusher with water washing,and rear suction.
Currently our company produce this kind of trucks with its weight from 1 ton to 25 ton. exactly design could be according to customer requirement.
Product Description
front loader road sweeper /with water washing function
Main specification
front loader road sweeper /with water washing function
| Item | Unit | Description | ||||||||
| Model | DongFeng brand | |||||||||
| Dimension | mm | 8586*2490*2980 | ||||||||
| Curb Weight | kg | 11350 | ||||||||
| Wheel Base | mm | 5000 | ||||||||
| F/R track base | mm | 1880/1860 | ||||||||
| F/R Axle-load | Kg | 6000 / 10000 | ||||||||
| Approach/Departure angle | . | 23/14 | ||||||||
| Traction system | 4x2 | Tire Specification/Number | 10.00-20 / 6 +1 Spare unit | |||||||
| Max speed | 90 km/h | Number of axles | 2 | |||||||
| Engine model | B190-33 | Emission/kw | 5700 ml / 142 kw , 190 Hp | |||||||
| Diesel, 4 cylinder, Tubocharged and Aftercooled. | ||||||||||
| Engine Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |||||||||
| Steering | Power | Transmission | 8F&1R | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Driven System | Left hand Or right hand driven | |||||||||
| Specification of Sweeper | ||||||||||
| Auxiliary Engine model | EQ6BTA | Emission/kw | 3950 ml / 118kw , 160 Hp | |||||||
| Diesel, 4 cylinder, Tubocharged and Aftercooled. | ||||||||||
| Engine Manufacturer | Dongfeng Cummin Engine Power Co.,Ltd | |||||||||
| Stainless steel Dustbin | 4 m3 | Volume of Water Tank | 6.2 m3 | |||||||
| Max.cleaning width | 4 m | Max.cleaning Capacity | 60000 m2/h | |||||||
| Max.Tipping Angle | 45° | Max.Sunciton 0bject | ||||||||
| High pressure water washing | ||||||||||
| Water flowing Speed | 80 L / min | Water Pressure | 10 Mpa | |||||||
| Water Washing width | 3.4 m | |||||||||

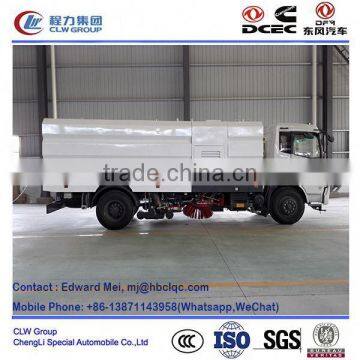

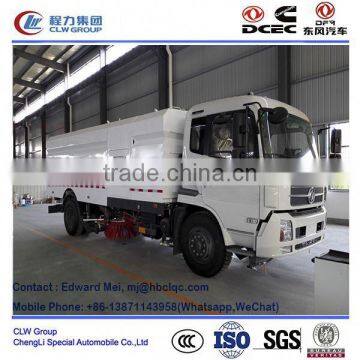

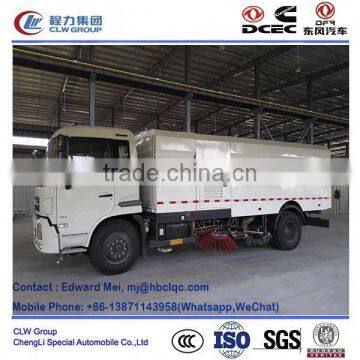

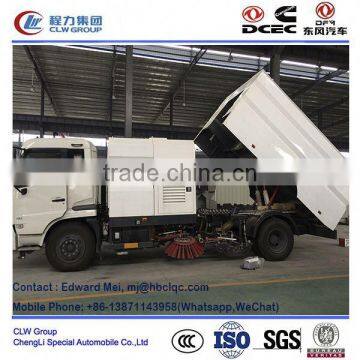

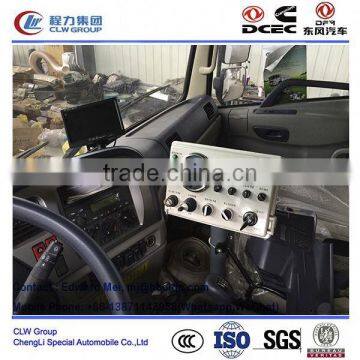

More photos showing
