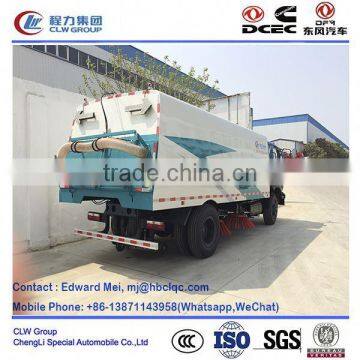

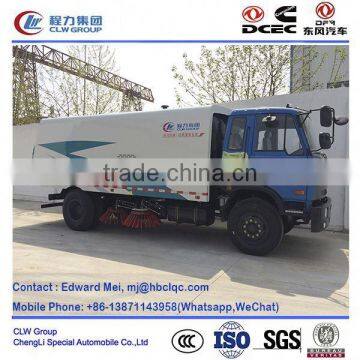

dongfeng 4*2 4*4 type 190hp 9 ton street sweeper truck
ChengLi Group_ChengLi Special Automobile Co.,Ltd,which is a big and famous special function truck manufacturer in China, we produce many kinds of special vehicles, also include the road cleaning truck.
Such as the sweeper truck, road vaccum suction truck, road sweeper with water washing, which are mainly used for asphalt road, or concrete road.
Currently we produce road sweeper truck, 4*2 , 4*4 type for option, weight 1 ton ~ 12 ton for option.
road vaccum suction truck, 4*2 , 4*4 type for option, weight 1 ton~ 12 ton for option.
road sweeper with water washing, 4*2 ,4*4 type for option, weight 8 ton~ 12 ton for opion.
dongfeng 4*2 4*4 type 190hp 9 ton street sweeper truck
| Item | Unit | Description | ||||||||
| Model | Dong Feng brand Water Spraying Truck | |||||||||
| Dimension | mm | 7350*2480*3000 | ||||||||
| Curb Weight | kg | 6755 | ||||||||
| G.V.W | kg | 12450 | ||||||||
| Wheel Base | mm | 3950 | ||||||||
| F/R track base | mm | 1900 / 1800 | ||||||||
| F/R Axle-load | Kg | 5000 / 8000 | ||||||||
| Type | Steel Spring | |||||||||
| Approach/Departure angle | . | 30 / 20 | ||||||||
| Traction system | Type | 4*4 or 4*2 | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Tire Specification/Number | Model | 9.00R20, 8+1 Spare Unit | ||||||||
| Engine | Model | B170-33 | ||||||||
| Emission/Kw | 5900 cc, 125 Kw / 2500 r | |||||||||
| Horse Power | 95 Hp | |||||||||
| Power | 560 N.m - 1600 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | Dongfeng Cummins Engine | |||||||||
| Gear box | model | 6F&1R, Manual | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Air Condition | Option | Radio, CD. | ||||||||
| Remark: |
Option~340USD if installing Air Condition. Installing the water pump , side input or output port, Rear operation platform Option~ Installing beam alarm light, installing dot alarm light.rear LED alarm light. |
|||||||||
| Specification of Sweeper | ||||||||||
| Auxiliary Engine model | EQB140 | Emission/kw | 3950ml/103Kw, 140Hp | |||||||
| Diesel,6 cylinder, Tubocharged and Aftercooled. | ||||||||||
| Engine Manufacturer | Dong Feng Cummins Engine Co.,Ltd | |||||||||
| Stainless steel Dustbin | 6 m3 | Volume of Water Tank | 4 m3 | |||||||
| Max.cleaning width | 3500mm | Max.cleaning Capacity | 100000 m2/h | |||||||
| Max.Tipping Angle | 45° | Max.Sunction object | <=100mm (2g/cm3) | |||||||
dongfeng 4*2 4*4 type 190hp 9 ton street sweeper truck
dongfeng 4*2 4*4 type 190hp 9 ton street sweeper truck
Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck
oil tank truck, oil tank trailer.
Vaccum suction truck.
Garbage Truck
high platform working truck.
Dump truck.
concrete mixer truck, concrete pump truck.
Refrigerator truck.
Wrecker truck.
Road sweeper truck.
Chemical liquid transporting truck.
All kind of semi trailer.
LPG gas tank, LPG truck and trailer.
Fire fighting truck.
Welcome to your inquiry.
