Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car

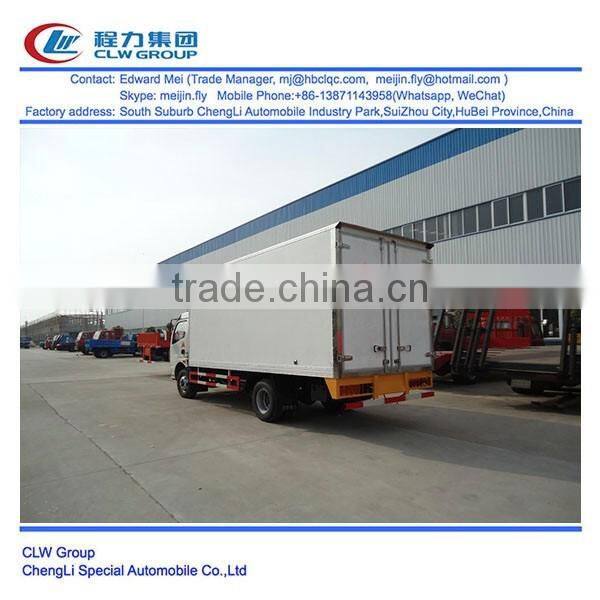

Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car photo-1
Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car photo-2
Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car photo-3

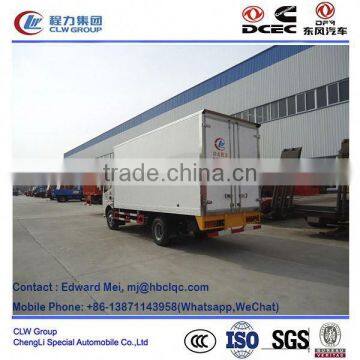

Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car photo-4

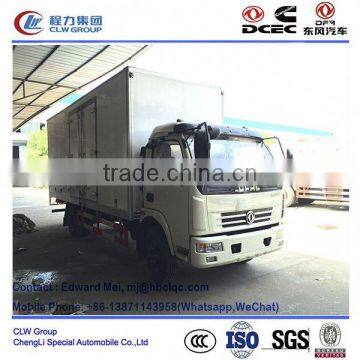

Dongfeng 4*2 Type 4 Ton~5 Ton Refrigerated Box Car photo-5
US$ 18,500 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CLW
Model:
CLW
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CLW
Model CLW
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 3
Fuel Type Diesel
Dimensions (L x W x H) (mm) 7000*2220*3400
Box Dimensions (L x W x H) (mm) 5050*2040*2050
Temperature Range -18~0
Gross Vehicle Weight 8200

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car


CLW Group_ChengLi Special Automobile Co.,Ltd, which is a big and famous special function truck manufacturer in China, We produce many kind of special trucks, also include the refrigerator type.

This kind of truck are mainly designed for transporting the object that the temperature should be keeping in range.such as the meat, ice , ice cream, vegetable, fresh fish, cake, and so on.

Currently we produce the refrigerator truck with its capactiy from 3 ton ~ 20 ton, meanwhile, we also produce the refrigerator semi trailer, two axles type or three axles type.Welcome for your enquiry.

Product Description

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

ItemUnitDescription
Model Dongfeng Refrigerator truck
Dimensionmm7000*2220*3400
Box Dimensionmm5050*2040*2050
Fiber Glass Inside and outside with PVC
Option Aluminum, Stainless steel, Carbon Steel
Curb Weight kg4200
Loading weight kg4 tons around
G.V.Wkg8200
Wheel Basemm3800
F/R track basemm1770/1640
F/R Axle-loadKg3000/6000
Approach/Departure angle.28/10
Traction systemType4x2
Max speedKm/h90
Tire Specification/NumberModel7.50-16 / 8 Units+1 Spare
Engine modelModelCY4102-E3F
Emission/Ps3856cc, 91 Kw~2800 r/min
Horse Power120
Power410 N.m - 1500 r/min
TypeDiesel, 4cylinder, Turbocharge , water cooling.
manufactuereDongfeng Chaoyang Engine Power Co.,Ltd
Gear box Type5F&1R, Manual
Electric systemV24
CabPerson3
TypeReversable, Manual
SteeringTypePowering
InstallingLHD or RHD
Air conditionOptionCD, Radio
Remark:Option~320 USD for installing Air Condition. 500 USD for top air cover
Option design~ refrigerator device which could keep the temperature -18~0 C of inside box, or -5~0
Option design~ side door open.



More photos showing

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Dongfeng 4*2 type 4 ton~5 ton refrigerated box carDongfeng 4*2 type 4 ton~5 ton refrigerated box carDongfeng 4*2 type 4 ton~5 ton refrigerated box car

More option design

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Packaging & Shipping

Transporting mainly by Bulk ship and RORO ship.

1. Bulk Ship loading photo showing.

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

2. RORO Shipping loading photo showing.

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

3. Special loading method, Some truck could loading into a container, GP type or HQ type container.

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Company Information

Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck

oil tank truck, oil tank trailer.

Vaccum suction truck.

Garbage Truck

high platform working truck.

Dump truck.

concrete mixer truck, concrete pump truck.

Refrigerator truck.

Wrecker truck.

Road sweeper truck.

Chemical liquid transporting truck.

All kind of semi trailer.

LPG gas tank, LPG truck and trailer.

Fire fighting truck.

Welcome to your inquiry.

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

Dongfeng 4*2 type 4 ton~5 ton refrigerated box car

FAQ

CLW Group--- ChengLi Special Automobile Co.,Ltd

1. What do we do ?

We are an integreted special truck manufacturer and sale.  all trucks are new customized according to customer requirement.

2.Is there any branch Company in oversea ?

Currently there is no oversea branch.

3.What's your warranty of your product ?

One year warranty time or 10000 Km driven.

4. How to buy a truck from your company ?

Welcome to your inquiry about our trucks, firstly please check with the sales manager for your demand in detail, then sales manager will make an offer to you according to your demand, If offer is acceptable, sales manager will send you proforma Invoice which will show our company account( we never provide personal account for customer), Please make the Transfer to our company account, then we will arrange production when confirming.

5. What about the payment method ?

We accept T/T, and L/C.

T/T 30 % in advance, we could arrange production, then left 70% should be done before truck loading on ship.
