JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck

JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck photo-1

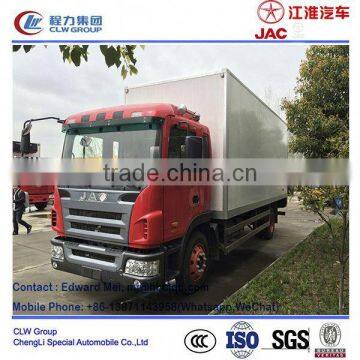

JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck photo-2

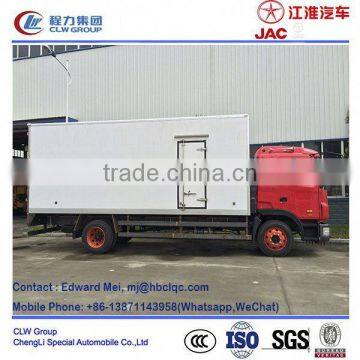

JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck photo-3

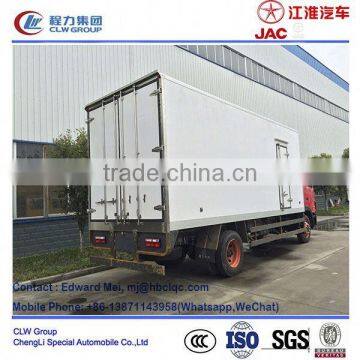

JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck photo-4

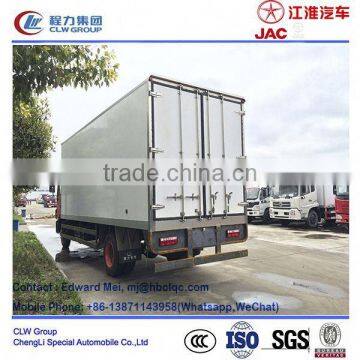

JAC Cooling Van Truck 10 Ton, Frozen Sea Food Refrigerated Truck photo-5
US$ 10,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CLW
Model:
CLW
Place of Origin:
China Hubei
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CLW
Model CLW
Place of Origin China Hubei
Transmission Type Manual
Condition New
Horsepower 150 - 250hp
Emission Standard Euro 3
Fuel Type Diesel
Dimensions (L x W x H) (mm) 8990*2455*3650
Box Dimensions (L x W x H) (mm) 7500*2300*2350
Temperature Range -18~0
Gross Vehicle Weight 15500

JAC cooling van truck 10 ton, frozen sea food refrigerated truck

Refrigerator truck, refrigerated van truck, cooling room truck, thermal room truck, which are
mainly used for transporting food. such as ice cream,meat,ice plate,vegetable,bread and so on.
This kind of truck is installed the refrigerated device, and the cargo box is produced with temperature keeping material.Currently our company produce this kind of truck with the loading ability from 3000 kg~30000 kg.
With the truck brand, Dong Feng, FAW, Foton, Sino truck,, IVECO, Shacman.

Main specification

JAC cooling van truck 10 ton, frozen sea food refrigerated truck

Item Unit Description
Model   JAC Brand
Dimension mm 8980*2455*3650
Box Dimension mm 7500*2300*2350  ~ Fiber Glass inside and outside.
Option material: Aluminum Steel, Stainless steel
Curb Weight kg 6900
Loading Weight kg 9000~11000
Wheel Base mm 5300
F/R track base mm 1830 / 1800
F/R Axle-load Kg 6000 / 10000
Approach/Departure angle . 20 / 12
Traction system 4x2 Tire Specification/Number 8.25R20 / 6 +1 Spare Unit
Max speed 90 km/h Number of axles 2
Engine model YC4E160-33 Emission/kw 4260 ml / 118 Kw, 160 Hp
Diesel, 4 cylinder , direct-line, turbocharge and water cooling
Engine Manufacturer GuangXi YuChai Engine Power CO.,Ltd
Steering Power Transmission CA6T123-62, 6F&1R
Cab passenger 3 Electric System 24V
Driven System left hand or Right hand
Air Condition Option Radio, CD.
Remark: Option~ installing Air Condition.
Option design~ refrigerator device which could keep the temperature -18~0 C of inside box.
Option design~ side door open.
Factory photo show

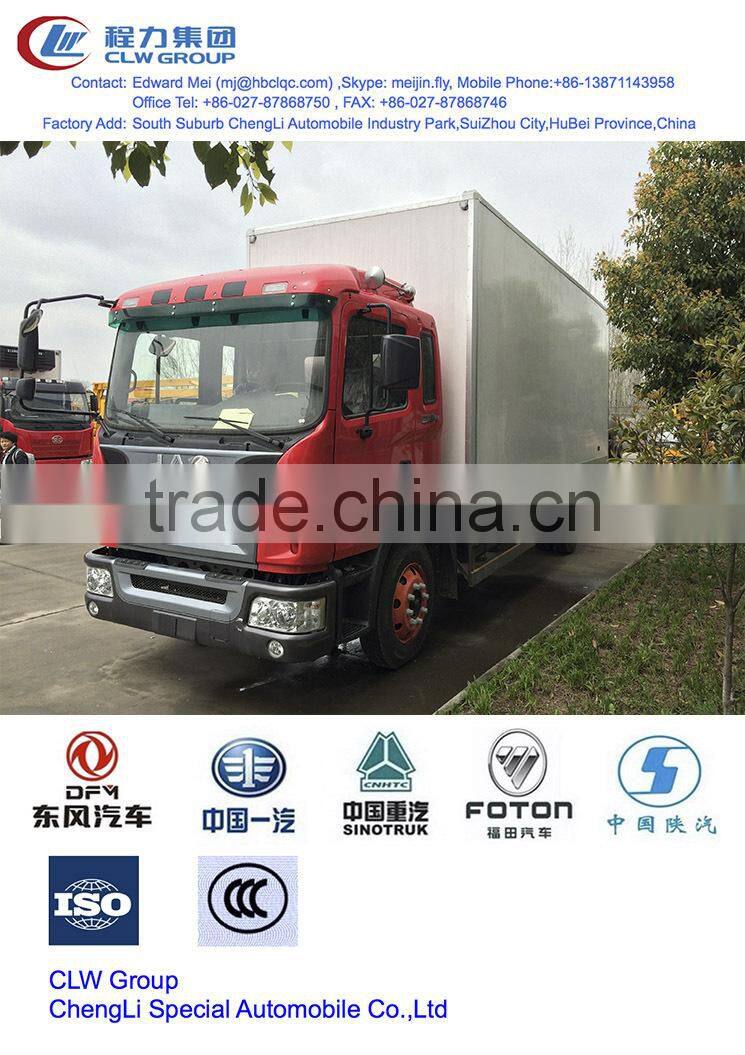

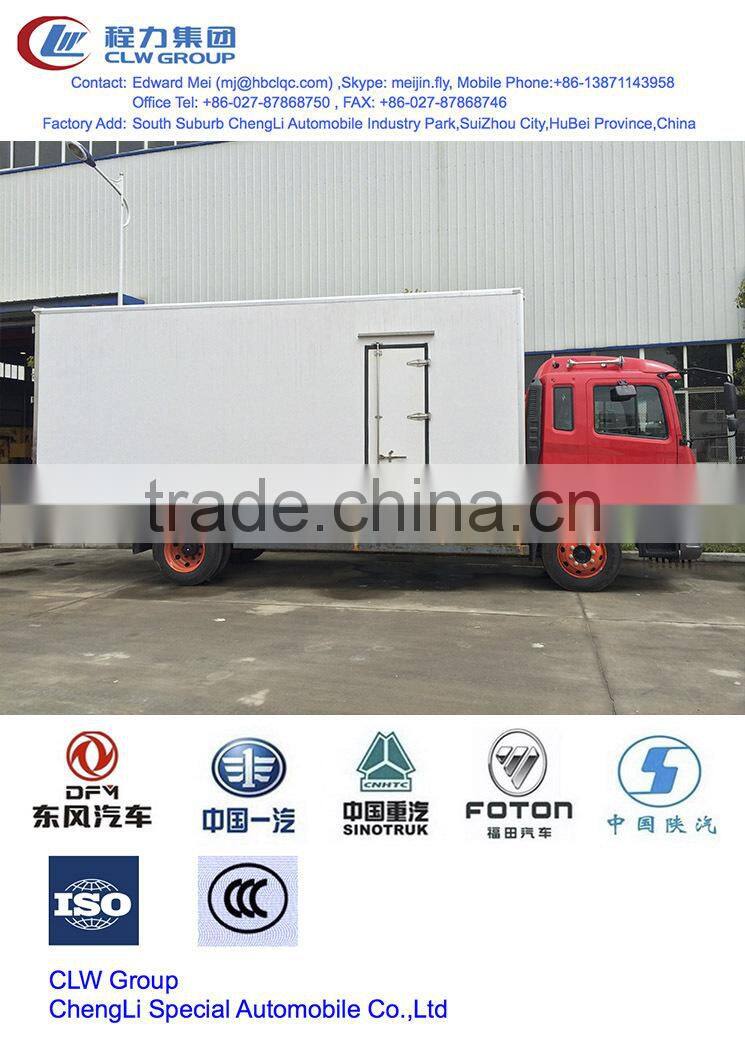

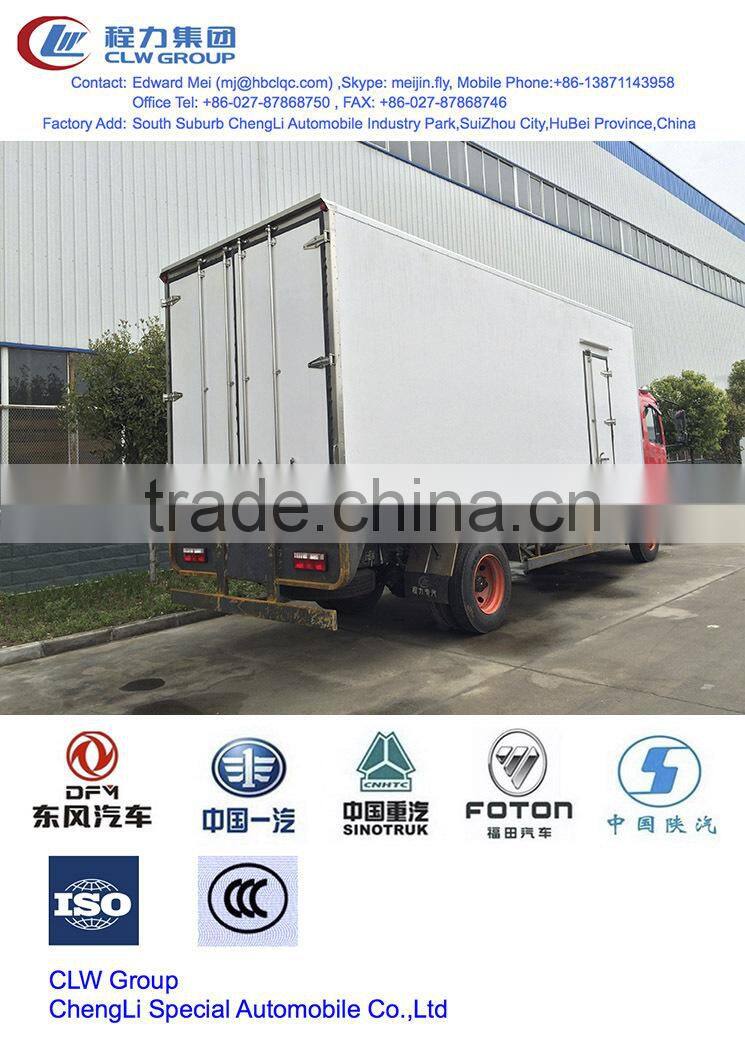

JAC cooling van truck 10 ton, frozen sea food refrigerated truck

 JAC cooling van truck 10 ton, frozen sea food refrigerated truckJAC cooling van truck 10 ton, frozen sea food refrigerated truckJAC cooling van truck 10 ton, frozen sea food refrigerated truck

Company Information

Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck, oil tank truck, vaccum tank truck,high platform working truck,dump truck,road sweeper truck, chemical liquid transporting truck, all kind of semi trailer, LPG gas tank, LPG truck and trailer, fire fighting truck.

Welcome to your inquiry.

Company Certificate showing.

JAC cooling van truck 10 ton, frozen sea food refrigerated truckJAC cooling van truck 10 ton, frozen sea food refrigerated truckJAC cooling van truck 10 ton, frozen sea food refrigerated truckJAC cooling van truck 10 ton, frozen sea food refrigerated truck
