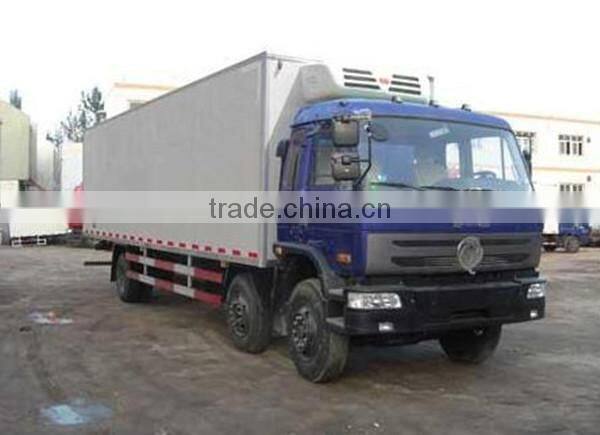

20 tons 6x2 dongfeng Euro3 190hp frozen truck
The frozen truck are also called refrigerator truck, refrigeration truck, freezer, freezer truck,etc. It consists of truck chassis, truck refrigeration units, refrigerated truck body, etc.
The frozen truck body is a insulated box. This refrigerator box is sandwich structure. Inner surface and outer surface is color plate, fibre glass, aluminium alloy, stainless steel, the middle part is 50mm or 80mm insulated layer. If you want to transport chunks of meat, the top of the box will install meat hook, skidway, and the floor is with air channel.
Our refrigerated trucks are divided into two calsses, one is truck mounted self-contained cooling unit and the other is extral cooling unit. We can customize the refrigerated carrier according to your requirement. If you have some demand, don't hesitate to let me know by calling at +0086-13872889770
Feature of Dongfeng 6x2 frozen truck
1. Advanced techology, perfect freezer effect
2. large loading capacity up to 25ton
3. Famous brand engine 190hp or more
3. refrigerated van size:9400x2300x2450mm
Pictures of 6x2 dongfeng 190hp frozen truck
Refrigeration unit
Meat Hook
ventilation duct
Technical parameters of Dongfeng 6x2 Euro3 190hp frozen truck
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
Chicken Transport truck |
Drive Type |
6*2, left hand drive |
|
Curb Weight (kg) |
12000 |
|
Loading Weight(kg) |
15000 |
|
Overall Dimensions L*W*H(mm) |
12000×2550×3990 |
|
Engine |
Engine Brand |
Cummins |
Fuel Type |
Diesel |
|
Power |
140KW/190hp |
|
Emission Standard |
Euro III |
|
Displacement(ml) |
5900 |
|
Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
Chassis |
Chassis Brand |
Dong feng |
Front/Rear Axle Load(KG) |
3090/4400 |
|
Tire No. |
8 |
|
Tire Specification |
10.00R20 Steel tire |
|
Wheelbase (mm) |
2150+5050 |
|
Axle No. |
3 |
|
Gear Box |
8 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
|
Radiator |
Suitable for tropical climate |
|
Front/rear suspension(mm) |
1180/2015 |
|
Leaf Spring No. |
11/9+7 |
|
Cold Room |
Box inner dimension(mm) |
9400x2300x2450 |
Box Material |
Internal and external are all Fiberglass |
|
Doors |
One double rear door |
|
Refrigeration Unit |
Refrigeration unit |
Hua Tai brand |
Refrigerated temperature |
-18℃ |
|
|
More trucks we manufacture
1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker
6. Road Sweeper
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer
Tips:
1. CKD and SKD are available.
2.OEM and ODM are available.
3.Technical support are provided.
