3 ton dongfeng 6 wheels small refrigerator freezer truck
Brief introduction of refrigerator freezer truck
The freezer truck is also called refrigeration truck, refrigerator truck, freezer van, etc. It is full sealed van truck. The freezer truck is consisted of truck chassis, insulated box, refrigeration unit, etc.
The insulated box body is sandwich structure. That means, the external and internal of box are firberglass, color plate or other material and the middle of box body are polyurethane foam.
The refrigerator freezer truck is mainly used to transport fresh meat,vegeatables and seafood etc. Special ones can also transport dangerous chemicals.Our truck has lots of advantages, flexible,easy to operate ,efficient, large Carryings,safe and reliable.
About the refrigeration units ,we have domestic HanXue brand of L-Z20 non-independent unit , South Korea brand of HT-250 non-independent unit and other imported brands such as Thermo King,Carrier,Mitsubishi . The lowest temperature can reach-18°C. The refrigeration unit is up to the buyer ,according to the need of the cryogenic temperature.
Advantages of our freezer truck:
1).Once-molded and full-sealing truck box body, perfect cooling effect.
2) Various brand refrigeration units to choose, large temperature range.
3) Advanced technology,nice appearance.
4) Light curb weight, large loading capacity,high efficiency, low cost.
The technical parameters of 3ton dongfeng 6 wheels small freezer truck
|
Main Technical Parameter | ||||
Brand |
CLW |
Product Name |
Refrigerated Van |
|
Gross Vehicle Weight (kg) |
6495 |
Overall Dimension (mm) |
5995x2020x3000 |
|
Rated Payload (kg) |
2865 |
Box inner Dimension(mm) |
4000x1850x1800 |
|
Curb Weight (kg) |
3500 |
Cab Allowed Persons |
2 |
|
Appr/Dep Angle(º) |
19/10 |
F/R Suspension (mm) |
1032/1663 |
|
Axle No. |
2 |
Wheelbase (mm) |
3300 |
|
Axle Load (kg) |
2385/4110 |
Max Speed (km/h) |
90 |
|
Others |
1. External/internal of the van are glass fiber, between them is Polyurethane foam material. All joint glued and urethane sealed and with hightensile screw to fasten. External corner capped with radius aluminum extrusions
2. Floor: one layer cold-rolled steel plate, one layer polyurethane, one player bamboo plywood and cover with antiskid checkered plate floor.
3. Door: double rear doors with stainless steel door furniture and refrigeration furniture door seals. door buffers and stainless steel door retainers included.
4. Equipped with perfect refrigeration unit to down the temperature to -18degree©.
5. External fittings: mudguard, side guard system, block buffers, side and rear marker lights, side and rear marker plates, step, etc.
6. Accessories: driver's tool, manual |
|||
Chassis Technical Parameter | ||||
Chassis Model |
EQ1060TJ20D3 |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co.,Ltd |
|
Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6 with 1 spare tyre |
|
App./ Dep. Angle(º) |
19/15 |
Tyre Spec. |
7.00-16 |
|
Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1506 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1466 |
|
Drive Type |
4 x 2 |
Brake System |
Air brake |
|
Emission Standard |
Euro III |
Gear Box |
5 speed forward and 1 reverse |
|
Engine Technical Parameter | ||||
Engine Model |
CY4102-C3F |
Engine Brand |
CHAOCHAI |
|
Displacement ( mL ) |
23856 |
Power |
70KW/95HP |
|
Remarks: Above parameters is just for your reference. As a professional special vehicle manufacturer in China, we can customize the truck according to your requirement. Therefore, you would be highly appreciated to let me know your request, such as freezer temperature, engine power, van box dimension,etc. before asking the price.

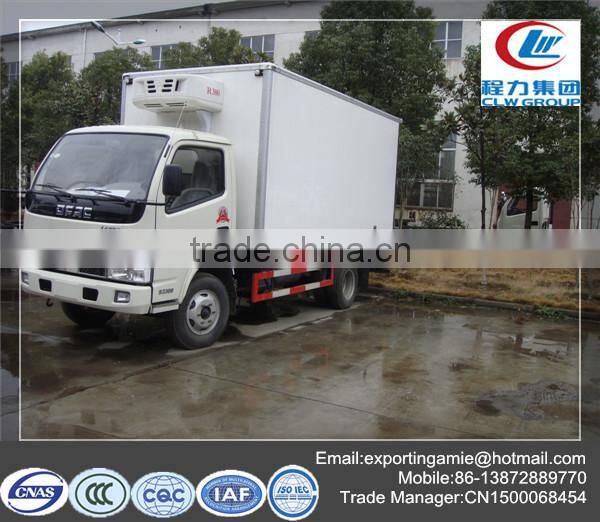

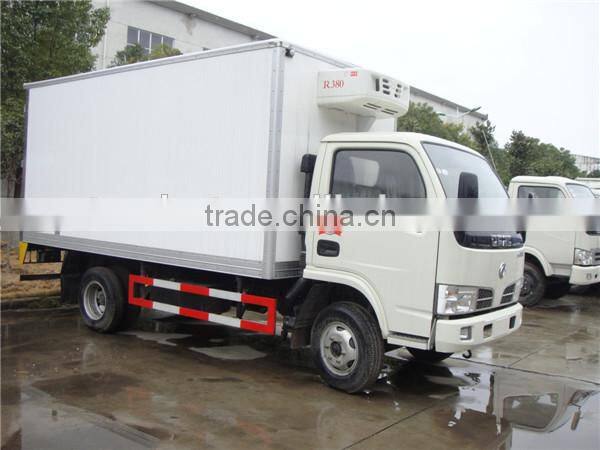

Pictures of dongfeng small refrigerator freezer truck
We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks and others. We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
More refrigerator truck smaple show
Tips:
1. All of our trucks are new and can be customized to meet all your requirement.
2. All of our trucks are with 12 months quality guarantee.
