FONTON 4*2 Vaccine Refrigeration Truck 1.5 ton
Vaccine Refrigeration Truck is also called Refrigerated van Truck, refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Note:
1. Vaccine Refrigeration Truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 8cm.(optional 10cm or 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.
4. Factory direct sale,professional, This Truck adop FONTON 4*2 truck chassis with 96hp engine, economical, practical, Min temperature be dropped to -10°C
Main parameterof FONTON 4*2 Vaccine Refrigeration Truck 1.5ton
Whole Truck Technical Parameter | |||
Product Name | FONTON Vaccine Refrigeration Truck | Product Brand | FONTON-CLW |
Curb weight(kg) | Approx 1830 | Overall Dimension(L*W*H)(mm) | 5320×1690×2250 |
Payload(kg) | 1500 | Steering type | LHD with power steering |
Wheelbase(mm) | 2890 | Axle number | 2 |
Traction Type: | 4*2 | Max Speed (km/h) | 120 |
Cab capacity | 2 | Cab type | Air conditioning |
Chassis Technical Parameter | |||
Chassis Model: | BJ6536B1DDA-S2 | Chassis Manufacturer: | BEIJING FONTON Automobile Co., Ltd |
Gear box | 5 shift | Transmission type: | Manual |
Brake type | Oil brake | Leaf Spring number: | -/4+1 |

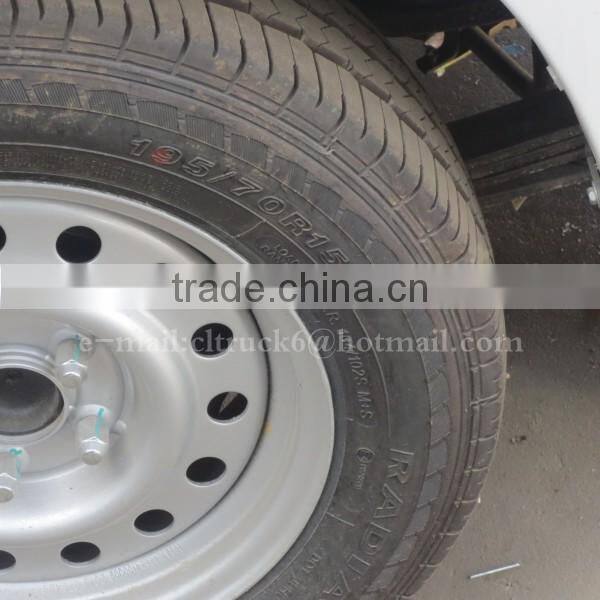

Tire size | 185R14C,195/70R15 | Number of Tire | 6 |
Engine specification | |||
Engine Model: | BJ493ZQ3 | Engine Brand | BEIJING FONTON Automobile Co., Ltd |
Emission stand | Euro 3 | Displacement(ml) | 2771 |
Fuel type: | Diesel | Power(kw) | 70(95)hp |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. Don’t open at the top, excellent insulation effect, optional equipped with Temperature recorder, suitable for transport Vaccine | ||

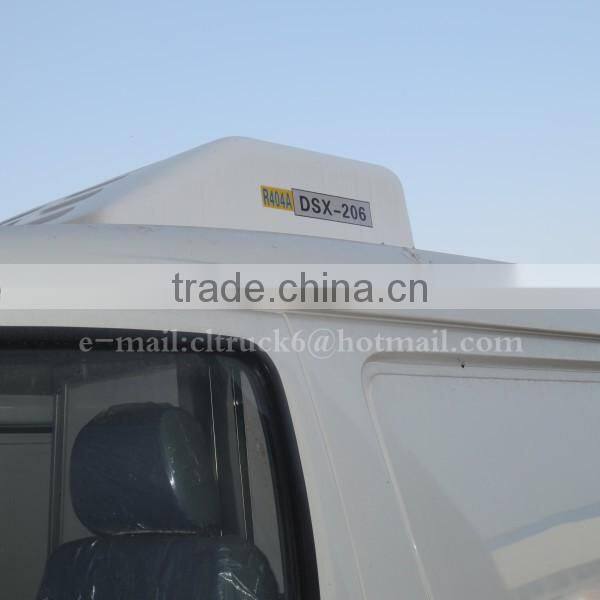

2. Equipped with DSX-206 Brand refrigeration unit mounted on the top of the car (optional other brand) | |||
3. Minimum temperature can be dropped to -10 °C. excellent Refrigeration effect | |||
4. Compartment Material: inside and outside FRP, 8cm thickness polyurethane foam middle. | |||
Warm tips:
A. Refrigeration unit Brand Optioanl : American CARRIER ,THERMO KING, South Korea hanya, China Songhan, hanxue,etc.
B. Minimum temperature optional: -5 °C to -18 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working, low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance and other advantages, it will sure you use safe!

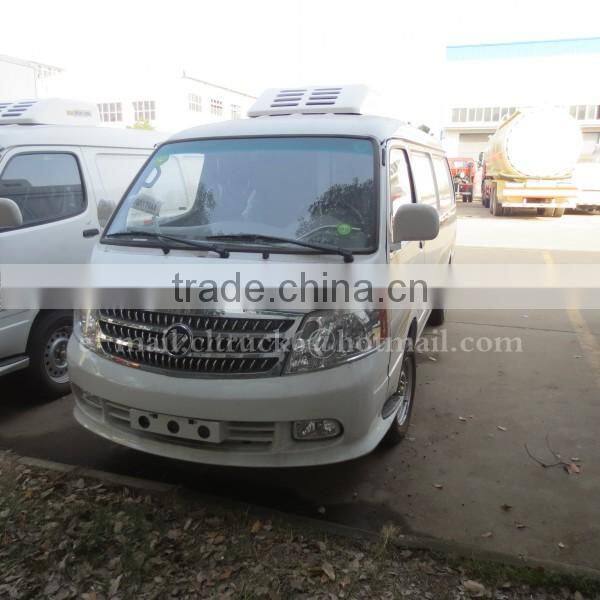

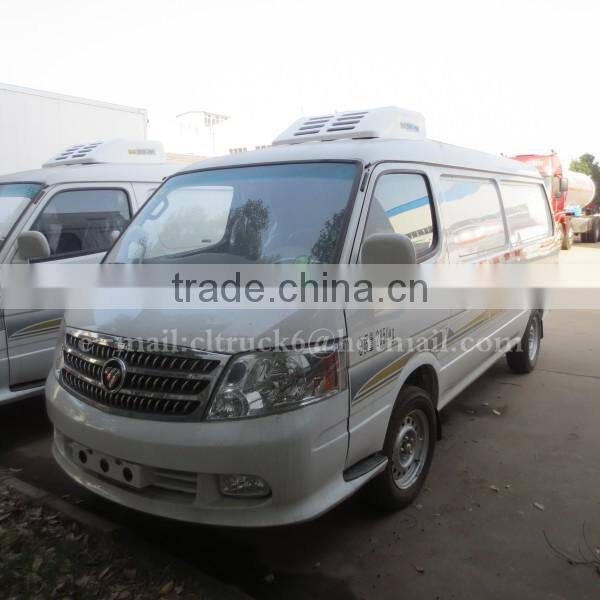

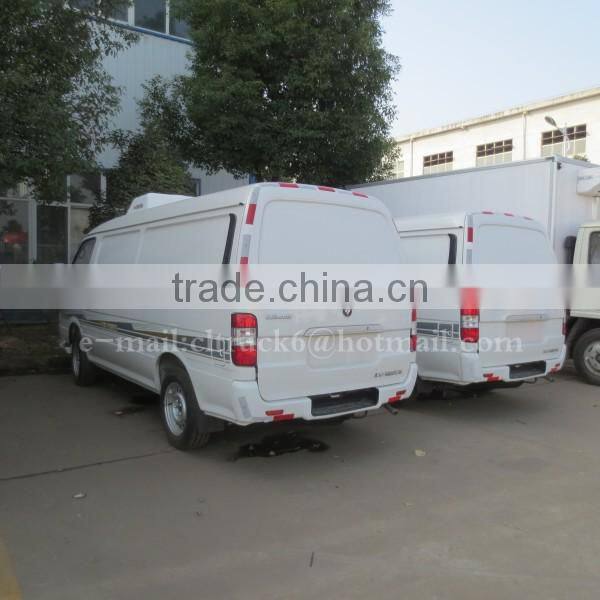

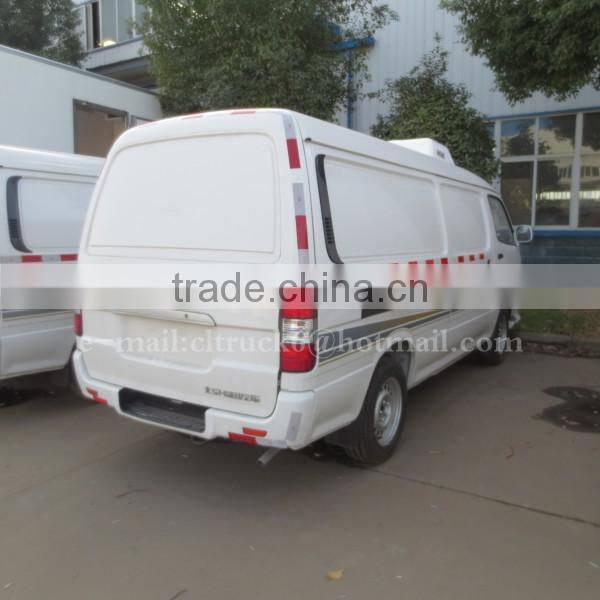

Product Picture of FONTON 4*2 Vaccine Refrigeration Truck 1.5 ton:
Brief Introdution of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
