Home > Transportation > Truck > Other Trucks > AUMAN 6X4 Mobile Refueling Trucks 21000liters

AUMAN 6X4 Mobile Refueling Trucks 21000liters

US$ 10,000 - 19,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 10250x2500x3400

Gross Vehicle Weight 25000

Place of Origin Hubei, China

Brand Name clw

Model Number CLW5250GYYB3

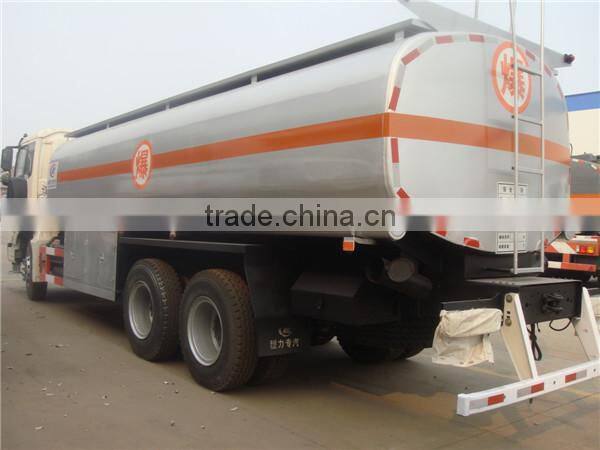

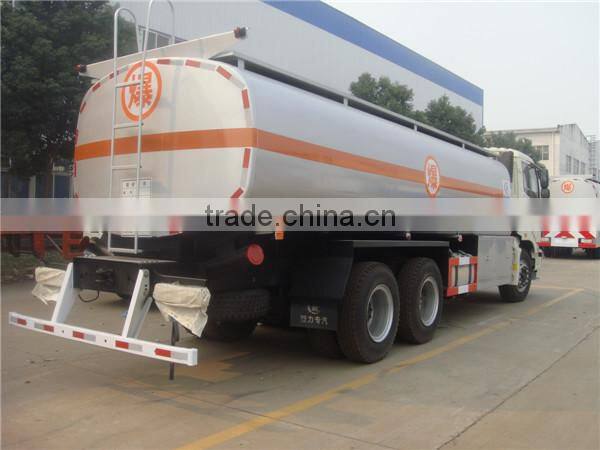

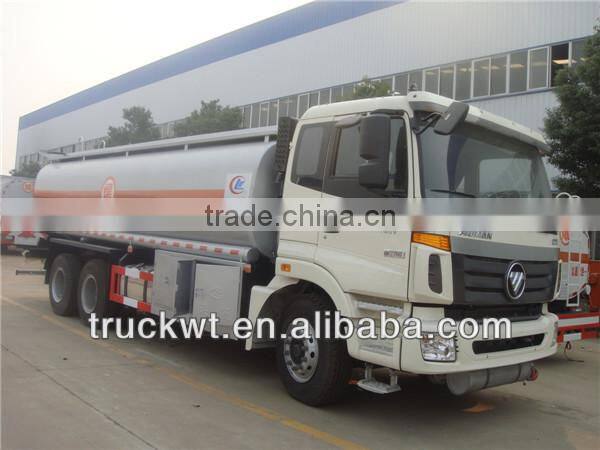

AUMAN 6X4 mobile refueling trucks 21000liters

Main Feature

1. EuroIII SHANG CHAI 240hp or 270hp engine, strong power

2. Eaton 8 speed forward, 10.00-20 steel wire tyre

3. Dual-circuit air brake, stable transportation.

4. Equipped with famous Weilong pump, PTO, gravity valve, extinguisher.

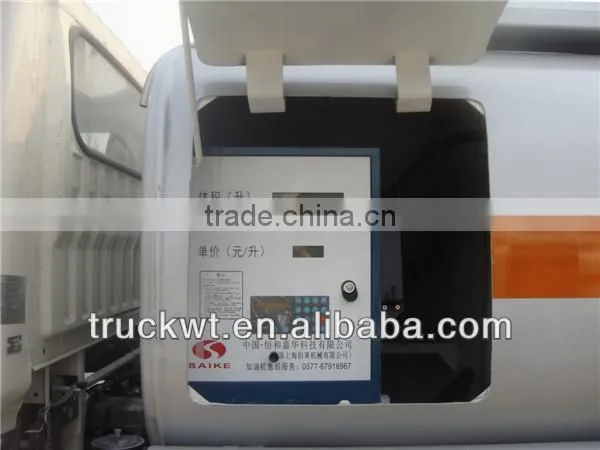

5. Equipped with anti-static oil pipe, refueling machine, refuelling gun, etc

6. Manhole with breather valve, exhaust with flame arrester

7. Flow meter, Pneumatic bottom valve are optional

8. Speed limiting device is equipped to control the speed to 79km/h.

The technical parameters of foton mobile refueling truck 21000liters for your reference

Main Technical Parameter
Product Name	Mobile refueling truck	Gross Vehicle Weight (kg)	25000
Rated Payload (kg)	13750	Curb Weight (kg)	11055
Tank Capacity(L)	22000	Cab Allowed Persons	3
Axle No.	3	Wheelbase (mm)	4725+1300
App/Dep Angle(º)	10/10	Axle Load(kg)	7000/18000
Chassis Technical Parameter
Chassis Model	BJ5257GNFJH-S1	Chassis Name	Oil tanker Chassis
Chassis Brand	AUMAN	Manufacturer	Beijing FOTON Daimler Automobile Co.,Ltd
Overall Dimension (mm)	10067×2490×3010	Tyre No.	10 with 1 spare tyre
App./ Dep. Angle(º)	11/12	Tyre Spec.	10.00R20 18PR
Leaf Spring No.	9//12	Front Track (mm)	1930
Fuel Type	Diesel	Rear Track (mm)	1860/1860
Drive Type	6x 4	Brake System	Air brake
Gear Box	DATONG 7 speed forward &1 reverse	Paint	Metallic Paint
Engine Technical Parameter
Engine Model	SC8DK240Q3B1	Emission Standard	Euro III
Displacement ( ml )	8270	Power	136kw/185hp
Superstructure Parameter
Tank Capacity(L)	22000	Tank Thickness(mm)	5.0
Head Thickness(mm)	6.0	Tank Material	Carbon Steel
Remarks:* Basic equipments: PTO, gear pump,Refueling machine, access ladder, anti-slip walkway, handrail, manhole, fire extinguisher, speed limiting device, side lamps and reflective stickers etc. *Optional: ABS, emergency valve, flow meter, rolling hose, nozzle, compartment quantity; epoxy coating inside the tanker; Tank material: carbon steel, stainless steel, aluminums alloy….. Bottom loading system…..
