6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle
We are professional special vehicle manufacturer in China. Our concrete mixer truck is from 3 cubic meters to 15 cubic meters. We can customize the truck according to your requirement. With over 10 years experience, our concrete mixer truck have more advantages than others..
Particular advantages of our cement mixer truck
1. Mixer drum turn smoothly, no segregation.
2.High quality mixer drum, no leakage.
3.Reinforced truck frame, no vibration during transportation.
4.Large slumps, good flowability, easy to discharge.

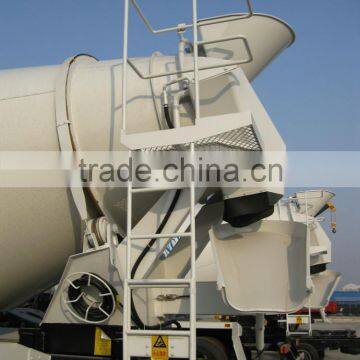

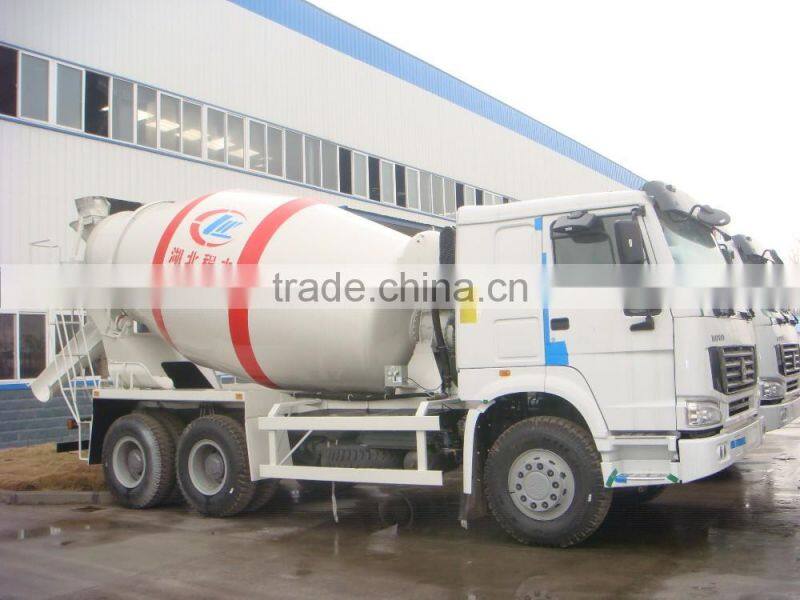

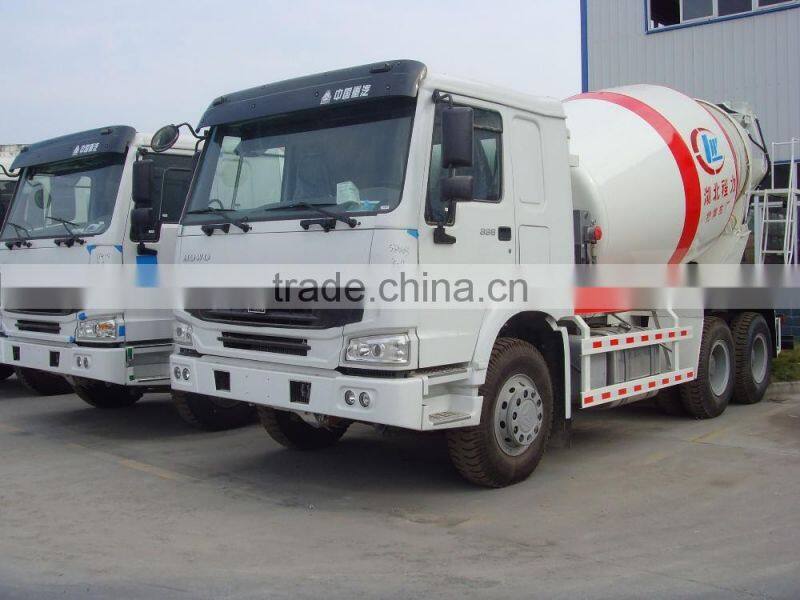

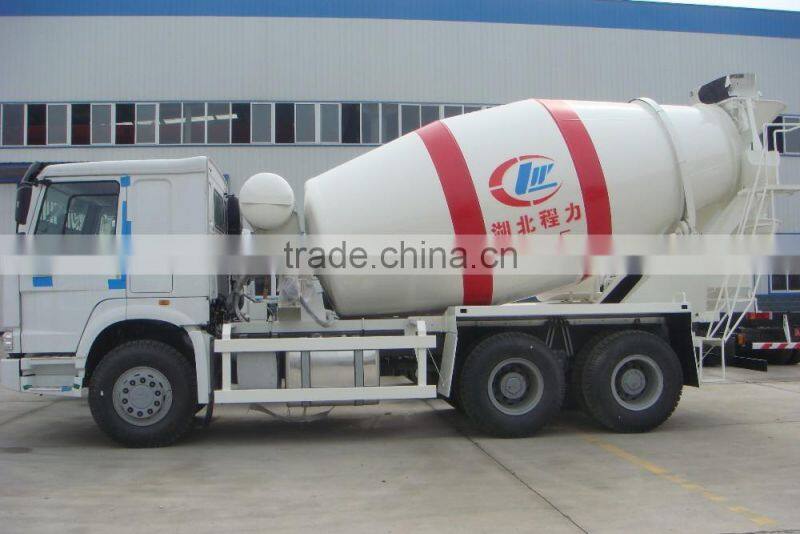

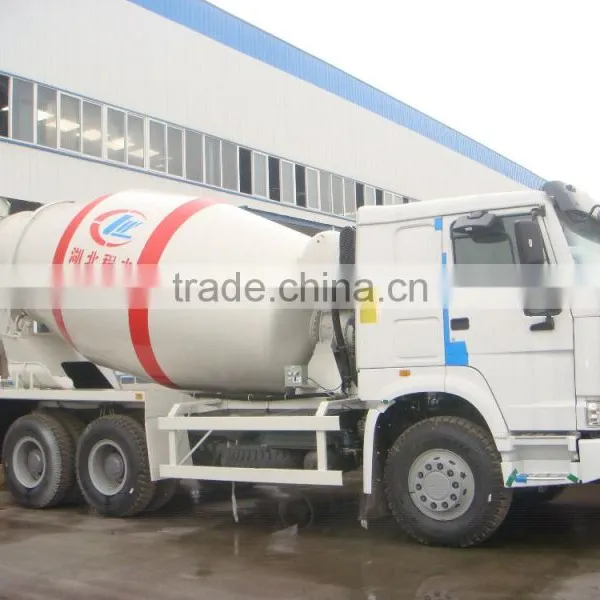

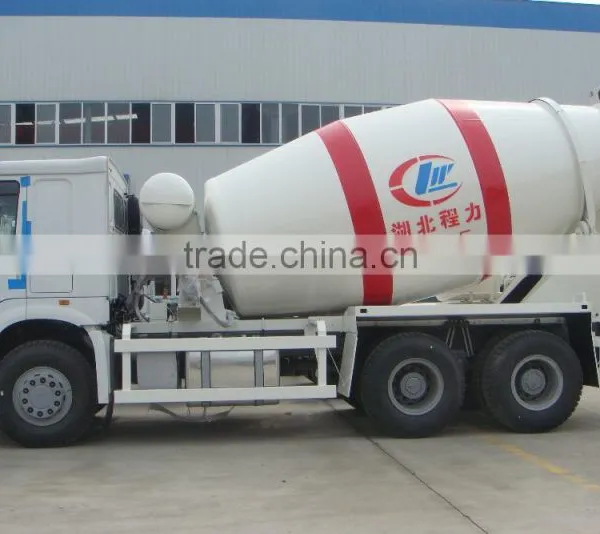

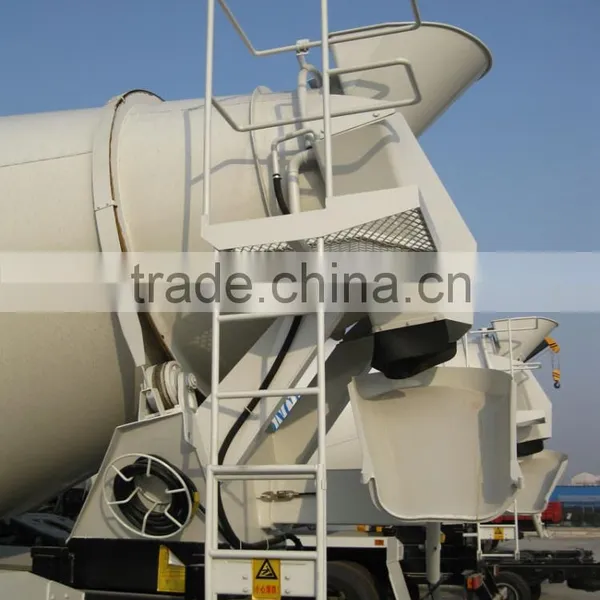

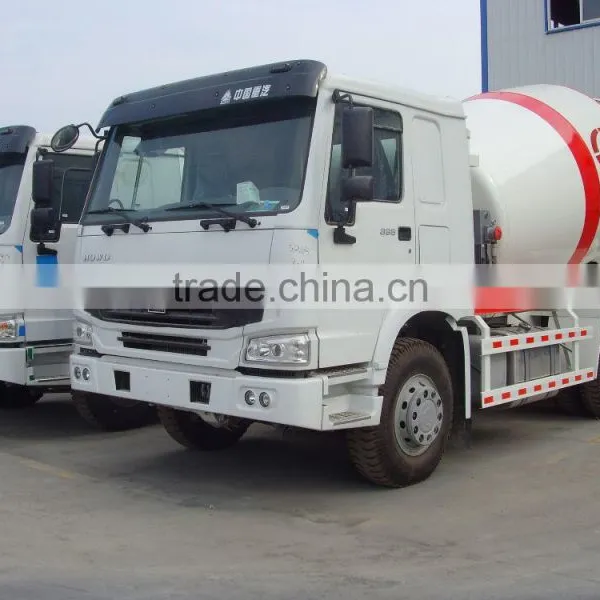

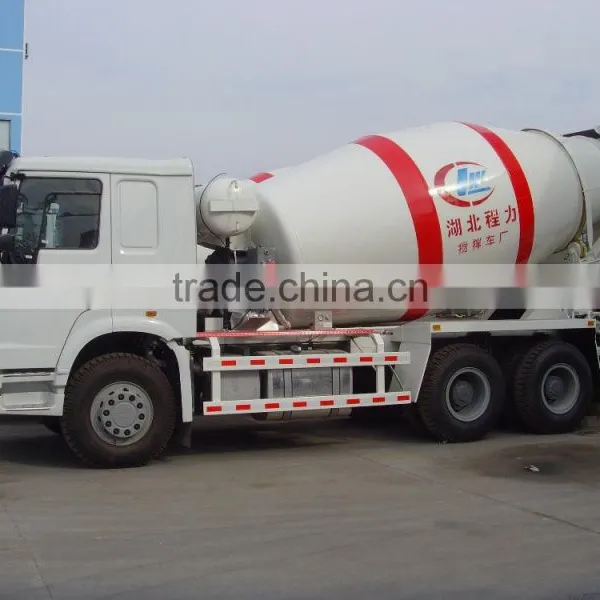

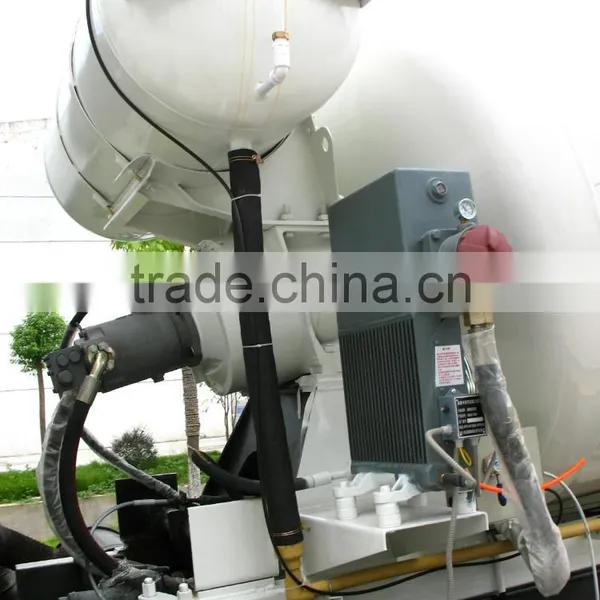

Pictures:6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle
6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle
6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle
Technical Parameters: 6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle
| Main Technical Parameters | |
| Overall | |
| Product Name | 6*4 Self Loading Type 10cbm Sinotruk HOWO Concrete / Cement Mixer Vehicle |
| Product Model | ZZ1257N1749-CMT |
| Overall Dimension (mm) | 9750x2500x3990 |
| Gross Vehicle Weight (kg) | 25000 |
| Rated Payload (kg) | 13870 |
| Curb Weight (kg) | 12590 |
| Tank Capacity(m³) | 10 |
| Chassis | |
| Chassis Model | ZZ1257N |
| Chassis Brand | SINOTRUK HOWO |
| App./ Dep. Angle(º) | 16/27 |
| Tyre | 12.00R20;10 with 1 spare tyre |
| Leaf Spring No. | 12//12 |
| Front/Rear Track (mm) | 2022/1830 |
| Fuel Type | Diesel |
| Drive Type | 6x 4 |
| Brake System | Air brake |
| Cab Allowed Persons | 3 |
| Axle No. | 3 |
| Wheelbase (mm) | 4025+1350 |
| Engine | |
| Engine Model | WD615.69 |
| Emission Standard | Euro 3 |
| Displacement ( mL ) | 9726 |
| Power | 336hp |
| Mixer Drum System | |
| Material of mixer drum | 16MnQ345 |
| Decelerator | Italy PMP |
| Hydraulic pump | America SAUER |
| Hydraulic slave motor | America SAUER |
| Radiator | Kai Tong |
| P.T.O | Full power type |
| Charging rate | ≥3.0m³/min |
| Discharging rate | ≥1.2m³/min |
| Geometric volume | 10m³ |
| Water Tank volume | 400liters |
| Discharge Residual Rate | ≤0.5% |
| Drum Rotation Speed | 0~17rpm |
| Normal Working Temperature | 50℃~70℃ |
| Advantages |
1, Mixing drum and blade are made with special wear-resistant material; 2, Discharge chute, feed hopper liner and etc are made with the same wear-resistant tube material; 3, The operating system of human nature, connecting rod operation,simple and safe and reliable; 4, Charging fast, no residue. |
--- Packing: Waxed or nude, and covered with tarpaulin.
--- Shipping: small type can be shipped in 20"GP,40"GP,or 40"HQ, big type can be
shipped in bulk ship or RO-ROshipping, or according to your requirement.

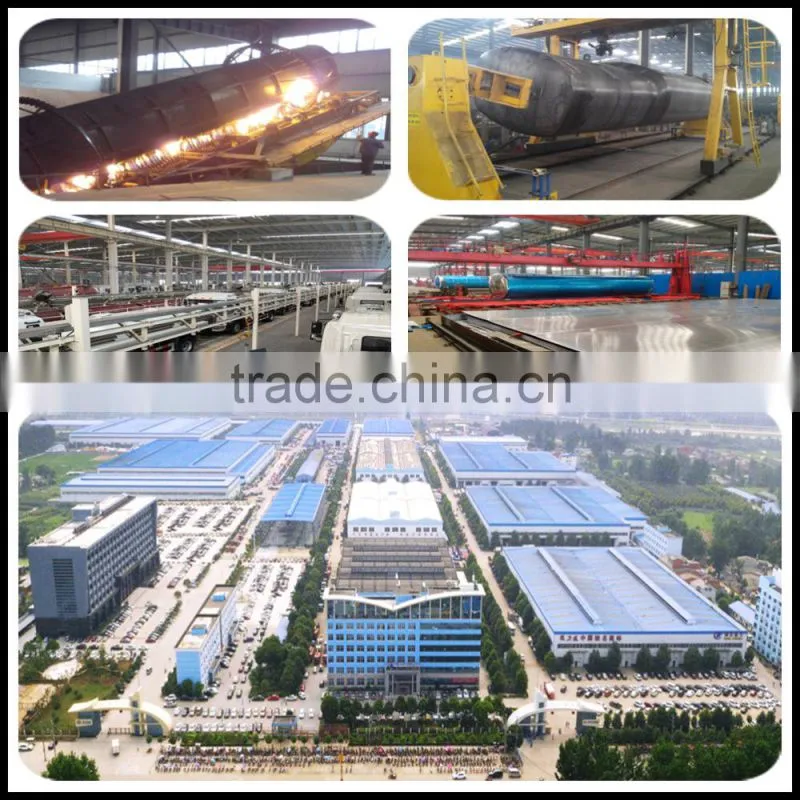

CLW GROUP
ChengLi Special Automobile Co.,Ltd, is the headquarter of CLW GROUP. We are the biggest manufacture of Special Purpose Vehicles in Suizhou city. And Suizhou city is the biggest Chinese production base of special purpose vehicles.
CLW is our trademark. As the biggest manufacture in Suizhou city, we have been awarded many honors, for example, CLW Group is the 19th in the top 100 private enterprises in Hubei province. CLW Group is also 500 private enterprises in China."High-tech enterprises in Hubei province", " Best credit enterprises".CLW sprinkler truck was named "Hubei famous brand"; "CLW" won the Hubei famous brand, A Well-Known Trademark in China.
Our leading products include Water truck, Fire truck, Garbage truck, LPG vessel/truck/trailer, Refrigerator truck, Dump truck, Concrete mixer truck , Sewage truck, Crane Truck, Van truck, etc.
With high quality and low price, our products are widely exported to Africa, Asia and South America every year.
1. The total assets of CLW Group is 300,000,000 USD.
2. Our headquarter covers an area of more than 200 acres.
3. We have more than 8000 employees, of which more than 500 technical engineers,
more than 2000 technical workers.
4. Our annual production capacity is 100,000 sets of special vehicles.
5. We have more than 2000 sets of large production equipment, more than 200 sets
of testing equipment, some of which the machining centers and production lines are
in the world leading level.
6. We have more than 100 independent innovation products obtained national patent,
the vehicle type sewage purification device, gas lighting fire trucks and other projects
to get third-prize progress of science and technology.
7. More than 840 CLW brand products are included in the national bulletin directory.
1.You are factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2.Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
