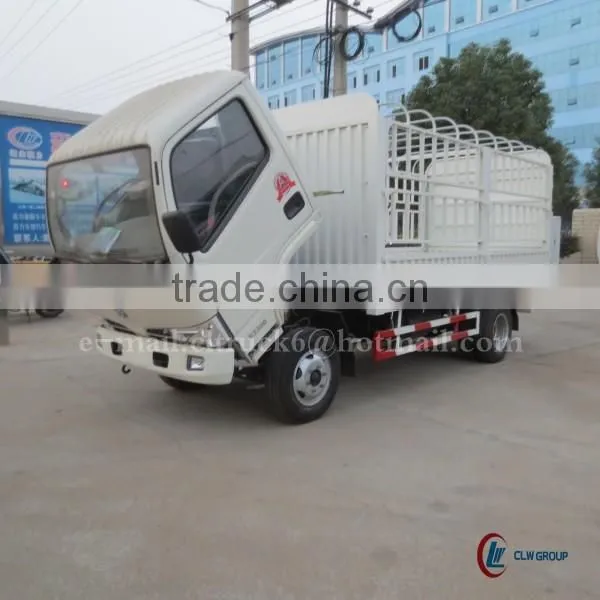

DONGFENG 4*2 Steel Truck Stake 5ton
- 500 Set / Sets per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Capacity (Load) | 1 - 10t | |
| Drive Wheel | 4x2 | Horsepower | Other, < 150hp | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Size | 5970*1960*2950 | Gross Vehicle Weight | 15000 | |
| Place of Origin | Hubei, China | Brand Name | Dongfeng | |
| Model Number | EQ1060TJ |
Product Description
DONGFENG 4*2 Steel Truck Stake 5ton
Product Notes:
1 Dongfeng Chaoyang 95hp, cabine flipped forward
2 Factory direct sale
3 High quality, low price
4 Load 15cbm
Main Technical Parameter of DONGFENG 4*2 Steel Truck Stake 5ton
Main Technical Parameter | |||
Product Model | DONGFENG Steel Truck Stake | Overall Dimension(L*W*H)(mm) | 5970×1960×2950 |
Wheelbase(mm) | 3300 | Compartment Dimension(L*W*H)(mm) | 4172×1880×(400+1500) |
F/ R suspension(mm) | 1032/1638 | Number of Axles | 2 |
Curb weight(kg) | 3495 | Effective volume(m3) | 15-17 |
Approach/ departure angle (° ) | 19/15 | Max Speed (km/h) | 95 |
Cab capacity | 2 or 3 | Cab Type | Single row ,can Flip forward |
Chassis Parameter | |||
Chassis Model | EQ1060TJ20D3 | Chassis manufacturer | DONGFENG Automobile Co., Ltd |
Gear Box | 5 shift | Transmission type | Manual |
Steering Type | LHD or RHD | Traction Type | 4*2 |
Frame type | Side rails and riveted construction | Brake System | Air brake |
Number of Tire | 6 with a spare | Tire size/type | 7.00-16 or 7.00R16 |
Engine Parameter | |||
Engine Model | CY4102-C3F | Engine manufacturer | DONGFENG CHAOYANG |
Fuel type | diesel | Displacement(ml) | 3856 |
Emission stand | Euro 2 | Power(kw) | 70(95hp) |
Remarks | 1. Equipped with 24V Electric system | ||
2. Cargo body material: Corrugated iron | |||
Warranty | 12 months, from the date of supply | ||

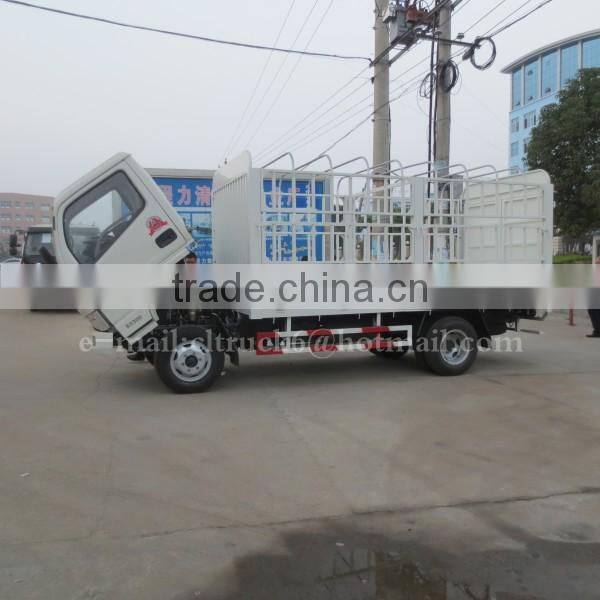

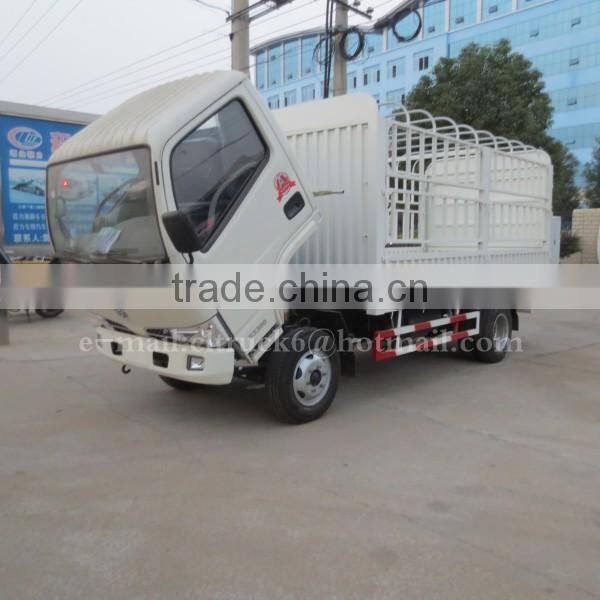

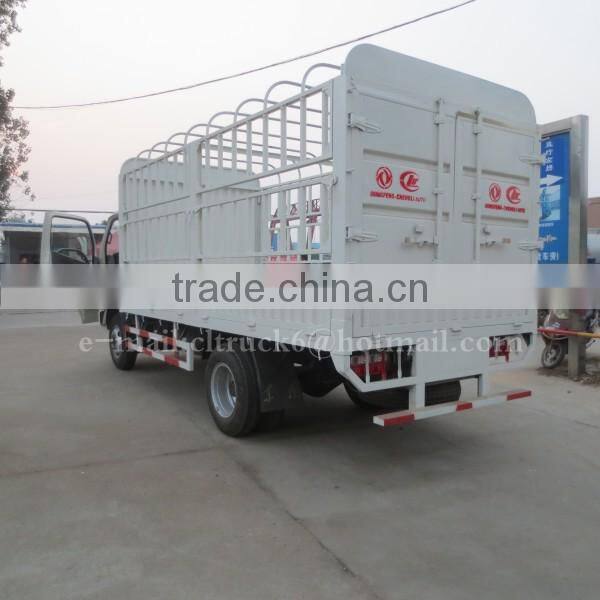

More picture of this Steel Truck Stake show as following :

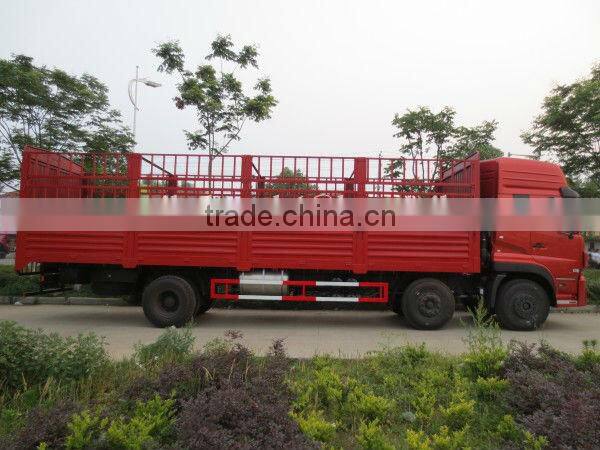

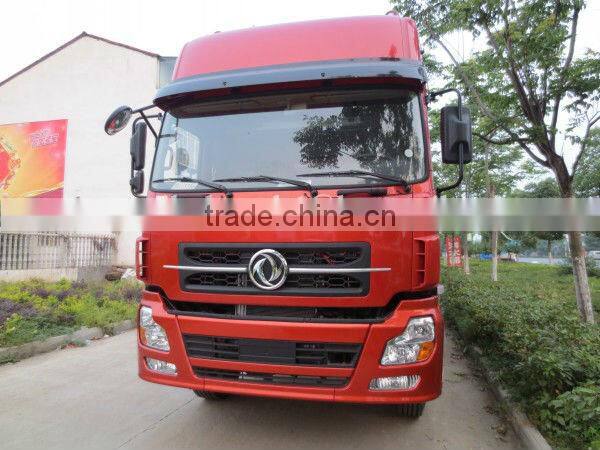

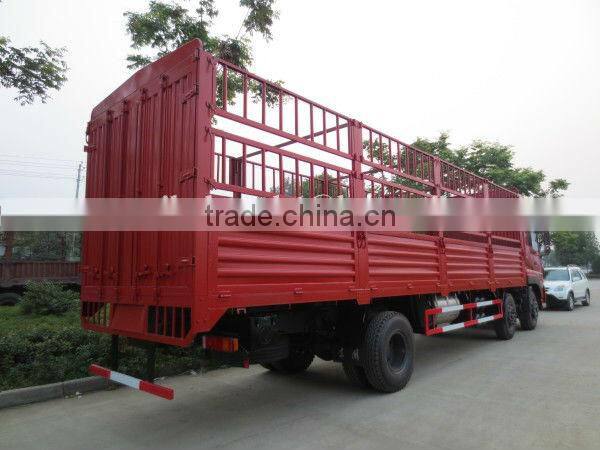

Other type of Steel Truck Stake show as the following:
Our Cirtificates:
Our Porduct catalogue:
1. Tank / Tanker / Vessel truck
A. Water sprinkler truck/water wagon/water transport truck/spray truck /Milk Truck
B. Oil/fuel tank truck (diesel, gasoline/petrol)
C. Sewage suction truck
D. Fecal sucking truck
E. Chemical liquid transporter / truck
F. Liquefied gas transport truck
G. Bulk cement truck/ powder material tank/transport truck
H. Bitumen/ asphalt truck
I. Concrete mixer truck
K. High pressure cleaning truck
2. Pressure vessel
A. LPG storage tank
B. LPG semi-trailer
C. LPG tank truck, LPG tanker truck
D. LPG container (20’ 40’ 40’H)
3. Fire truck/ fire fighting truck
A. water tank fire truck
B. water tank and foam tank fire truck
4. Semi trailer Series
A. Bitumen/ asphalt transportation semi-trailer
B. Water transportation semi-trailer
C. Fuel, oil, diesel, gasoline/ petrol, transportation semi-trailer
D. Chemical liquid transportation semi-trailer
E. Bulk powder (carbon powder, cement, etc) transportation semi-trailer
5. Truck mounted crane/truck with crane
6. Aerial working truck / high- altitude operation truck
7. Dump truck / tipper/dumper
8. Van truck/refrigerator truck/explosion proof truck
9. Wrecker
10. Garbage truck/refuse compactor truck
11. Tractor
12. Sweeper truck/Road sweeper truck
13. Flatbed transport truck/flatbed truck
Contact Information:
The above information is just for your reference, if you have any other questions or need more truck picture or detailed information, please feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please check my contact information as below:
Contact Us
- Chengli Special Automobile Co., Ltd.
- Contact namePeter Yu Chat Now
- Phone86-27-0086-13871143958
- Address3104 Room,7th building,fanhai Soho district, Wuhan City, Hubei Province, Wuhan, Hubei
