Howo Water Tank Truck 20cu M Capacity
We are manufacture of water tank trucks more than 10 years.
1. 3C, ISO 9001
2. Sprinkle area:width>14m,range>35m
3. 6x4,4x2,4x4,6x6,8x4Drive type, LHD, RHD
Now we are doing promotion for water trucks, more discount,
please call me : 0086-13545915671
Water tank truck which is widely used in greening, sanitation, agriculture, fire fighting etc.
It is usually equips with working platform, high pressure gun and high power sprinkler water pump.
Specification of Howo water tank truck as below:
| Dongfeng 6x4 water truck 15-20m3(LHD or RHD) | ||
| Product Name | Howo 6x4 water truck | |
| Product Model | CLW5310GSS1 | |
| Chassis model | EQ1258KB3GJ | |
| Payload | 20cbm | |
| Curb weight(Kg) | 9005 | |
| Drive Model | 6x4 | |
| Drive Type | Left-hand (optional) | |
| Vehicle Body Color | Red,Yellow,white(Optional) | |
| Engine | Brand | Cummins |
| Model | B210-33 | |
| 6 cylinder in-line with water cooling & inter-cooling | ||
| Displacement(L) | 5900 | |
| Max.Power(kW) | 155 | |
|
Rated power Rev (RPW) |
2500 | |
|
Maximum Torque (N*m)/Rev(r/min) |
700/1500 | |
| Fuel consumption | L/100km | 23.7/diesel |
| Clutch | Model | Φ395 single diaphragm spring |
| Transmission | Brand | datong or dongfeng |
| Model |
Datong 6 speed( 6 forward and 1 reverse mechanical) |
|
|
Or dongfeng 8 speed( 8 forward and 1 reverse mechanical) | ||
| Rear Axle(drive axle)-Model | 10 tons | |
| (main reducer speed ratio:6.166) | ||
| Front Axle-Model | 5 ton | |
| Cabin type | Dongfeng one and half row | |
| Cabin | Radio and so on,warmer,air condition (optional) | |
| Wheelbase (mm) | 4350+1300 | |
| Wheel/Tire | Type | Nylon tire |
| Model | 10.00-20 | |
| Tire number | 10+1 | |
| Oil Tank | Volume(L) | 300 |
| Dimensions | Overall (mm) | 9950×2490×3350 |
| (L×W×H) | Body (CBM) | 20 |
| Track | Front track(mm) | 1940 |
| Rear track(mm) | 1860/1860 | |
| Body | Q235 carbon steel | |
| Axles loading (kg) | 7000/18000/18000 | |
| Front overhang/Rear overhang(mm) | 1245/3055 | |
| Approach/Departure Angle(°) | ’10/28 | |
| No. of steel spring(front/rear) | ’8/12 | |
| Max.speed(km/h) | 85 | |
| Max.slope of climb(%) | 30 | |
| Min.turning diameter(m) | 18 | |
| Mini.groud clearance | 240 | |
| Water truck detailed: | ||
| Special function of water tank truck | ||
| Water tanker material Of high quality carbon steel (Q235). | ||
| Introduction 1. Suction≥7m Sprinkler width≥14m Range≥28m | ||
| 2. with front spout, back spill and side spout function | ||
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | ||
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling,self-flow add self- priming function. | ||
| Sprinkling area(m) »14m Vertical suction range (m) »7m | ||
| Watering pressure: 250-450Mpa Pump style :Self-priming centrifugal pump | ||
| Manhole Man way access hole on top of tank;1 units DN500mm manhole | ||
| Front spray function Front spray bar with fan sprayer on both sides, spray range: »28m | ||
| Man walk way With skid resistance man walk way on top of tank | ||
| Horse reels Two 75 ft hose reels at each side of the truck | ||
| Water pump Water pump model: CLW80QZF-60/90N (N/S) | ||
| Water pump flow rate(L/m): 60m3/h | ||
| Head of delivery(m): 90m | ||
| Self-priming function(min/4m):1.5 | ||
| Efficiency(%):95% | ||
| Related rotate speed(r/min)1180 | ||
| matched power(kw):22 | ||

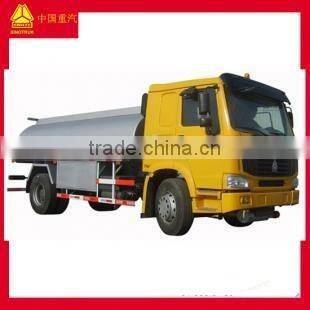

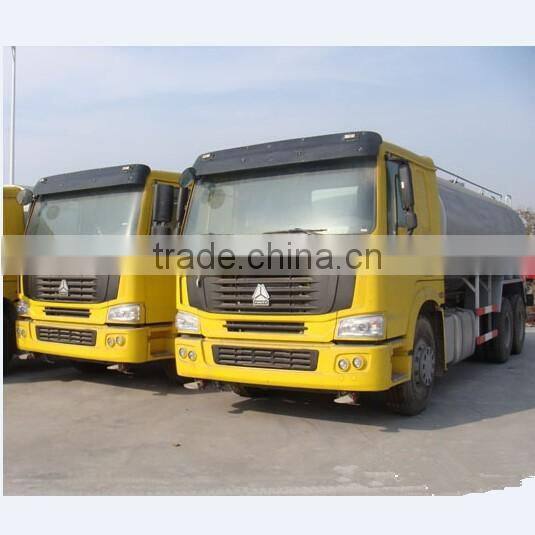

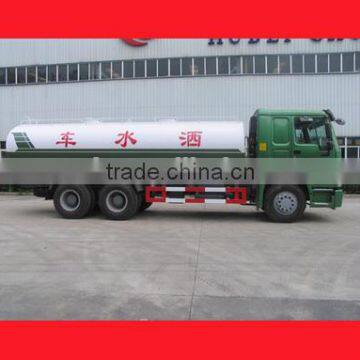

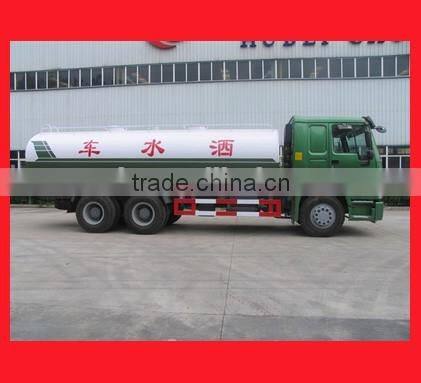

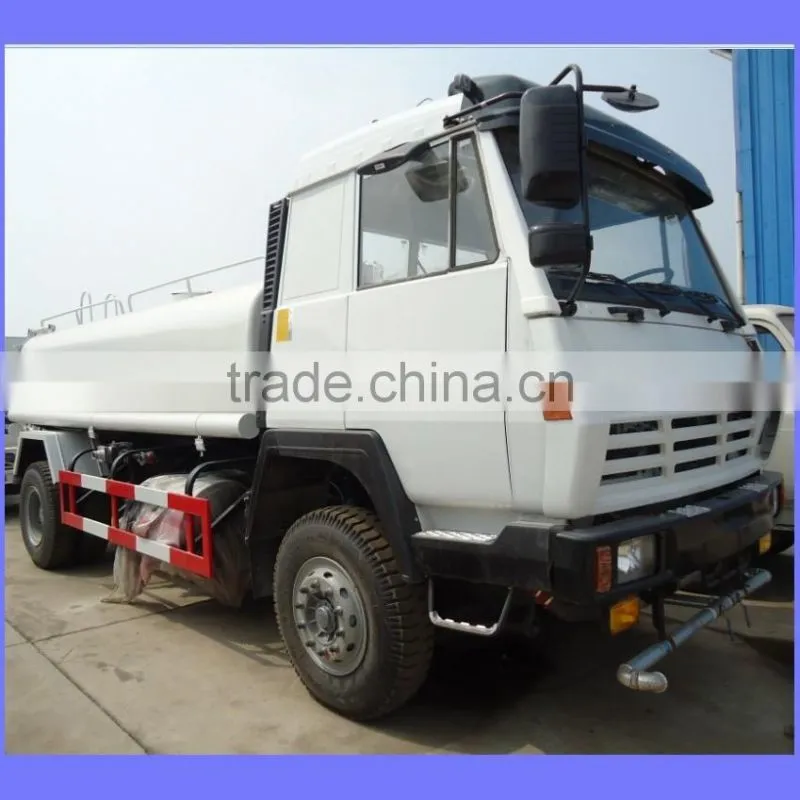

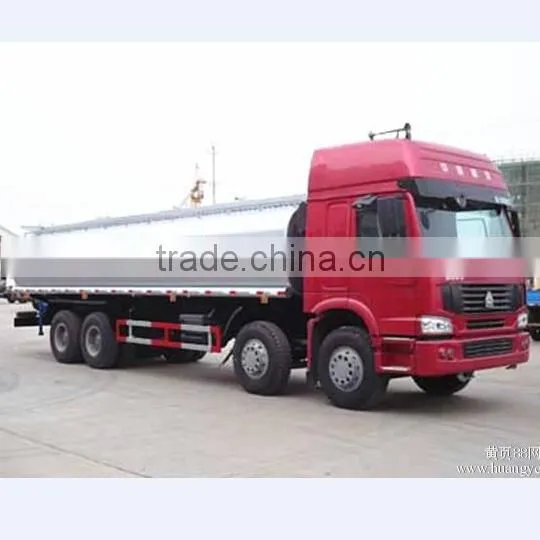

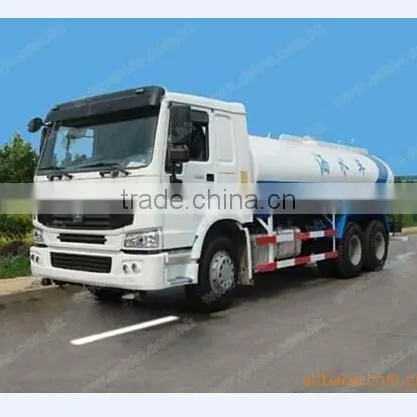

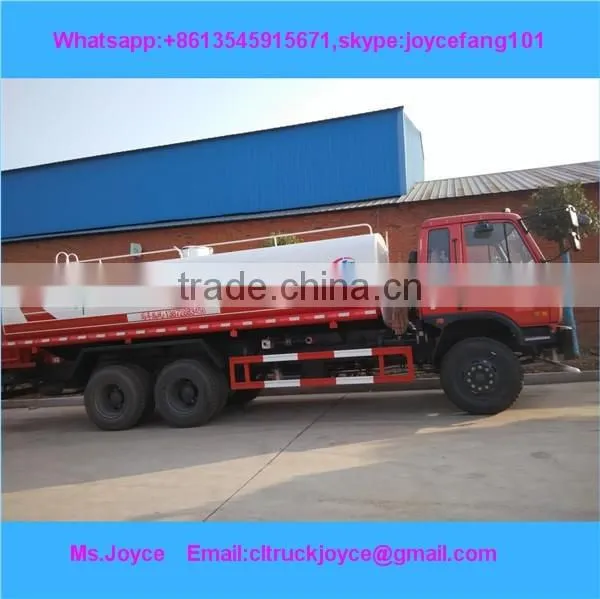

Howo Water tank truck images :

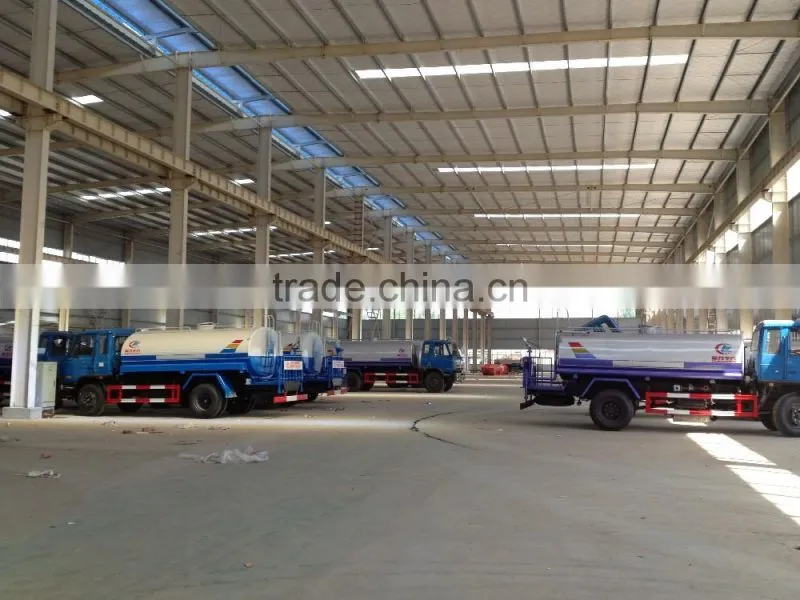

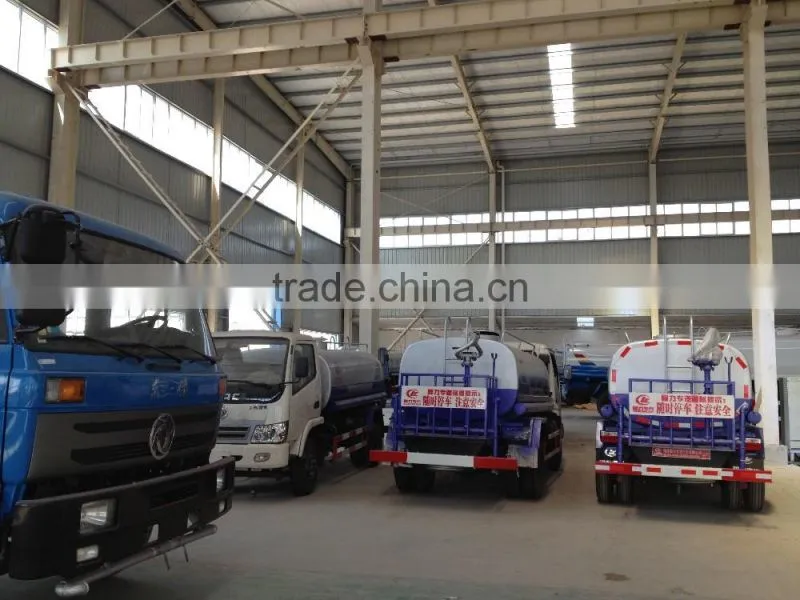

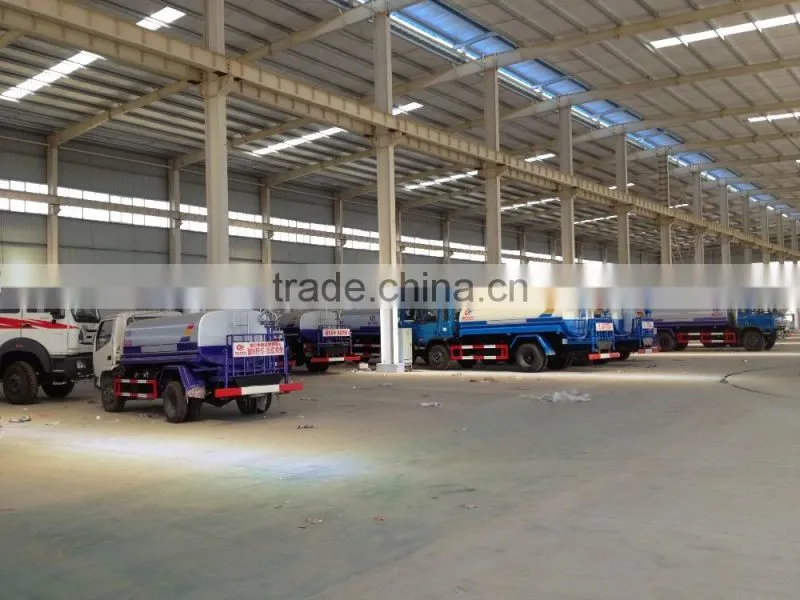

Chengli big workshop of water tank truck show :
We can manufacture water tank truck according to your request !!!
Water tank truck is shipped by bulk, ro-ro or container !
Water tank truck manufacture:Chengli special Automobile co.,Ltd
Our leading varieties include more than 300 types of trucks and tanks such as
1.Water truck 2.Fecal suction truck 3.Garbage truck
4.Sewage suction truck 5.Fuel tank truck 6.High altitude operation truck
7.Truck with crane 8.Dump truck 9.Instructional truck
10.Van truck 11.Semi-trailer 12.Fire engine, Spares
13.Refrigerator truck 14.Water wagon 15.Tractor
16.High-altitude water truck 17.Bulk cement tank truck 18.Chemical liquid tank truck
19.Concrete mixer truck 20.Led advertising truck 21.Bulk cement tank semi trailer

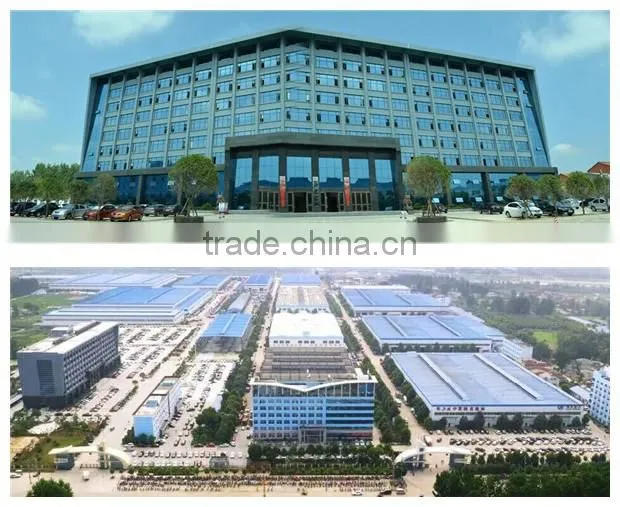

Chengli group ~ China top 500 private manufacturing enterprises
1.Pament terms:
30% T/T payment in advance,70% to be balanced before delivery from Shanghai port.
2.MOQ: 1set
3.Contact me :
More details of water tank truck, please contact me as below :
