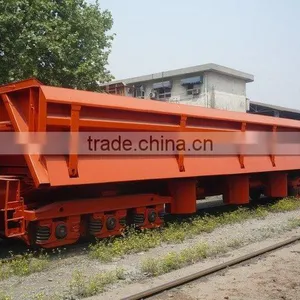

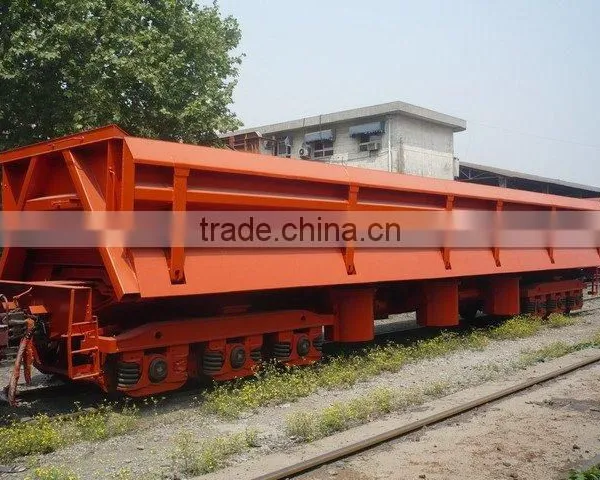

Help Center100T Side Dump Wagon
Related Products
Specifications
100T side dump wagon is widely used in mineral industryMain Dimensions
Length over head stocks 15535 mm
Length of underframe center sill 14544 mm
Length between bogie pivot centers 10290 mm
Width (Maximum) 3340 mm
Height (Maximum) 3077 mm
Height above rail level to underframe center sill (unloaded) 1385 mm
Height above rail level to bogie pivot center (unloaded) 816 mm
Height above rail to center of coupler (unloaded) 880 mm
Rigid wheel base 2400 mm
Axle 3 E-RE2B
Wheel diameter 840 mm
Performance parameters
Loading Capacity 100t
Tare Weight 47.7t
Axle Load 25t
Tare-to-load capacity 0.47
