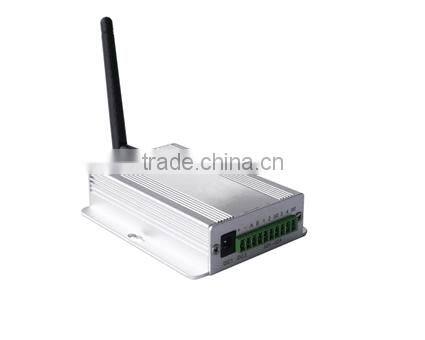

Product name: Remote Terminal Controller(RTU)

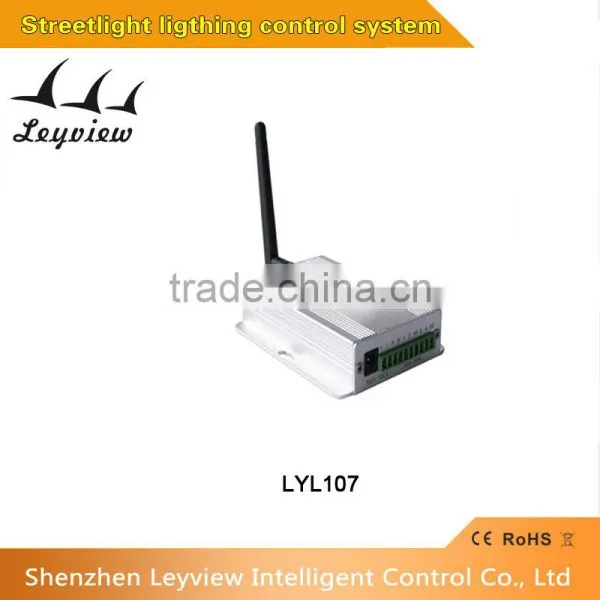

Model No.: LYL107
1. Technical parameters
Radio frequency: ISM 2.4G global free frequency band
Modulation: DSSS direct sequence spread spectrum
Wireless channel: 16
Channel detection: CSMA/CA
Network topology: star type, tree type, chain type, mesh network
Single network capacity: 65535 nodes
Send mode: broadcast transmission or destination address
Data interface: IO, RS485 port
Input voltage: 5-24V DC
Antenna connection: external SMA antenna, built-in PCB antenna
2. Functional characteristics
Communication distance: the maximum distance of 2000 meters distance transmission;
Anti interference ability: DSSS 2.4G spread spectrum technology;
485 flexible application: transparent or instruction format transmission, the highest baud rate of 115200;
Flexible transmission mode: the mode of broadcast transmission or destination address is optional.;
Node type flexible: the center node, routing node, terminal node can be arbitrarily set;
Network capacity: 16 channel optional, 65535 network ID can be arbitrarily set;
Any combination of input and output interface: switch input, switch output, 4-20MA input, 0-5V input, 0-200MV
Input, temperature acquisition, humidity acquisition, infrared induction, combustible gas detection;
Flexible data acquisition: the timing of the initiative to report or host computer query;

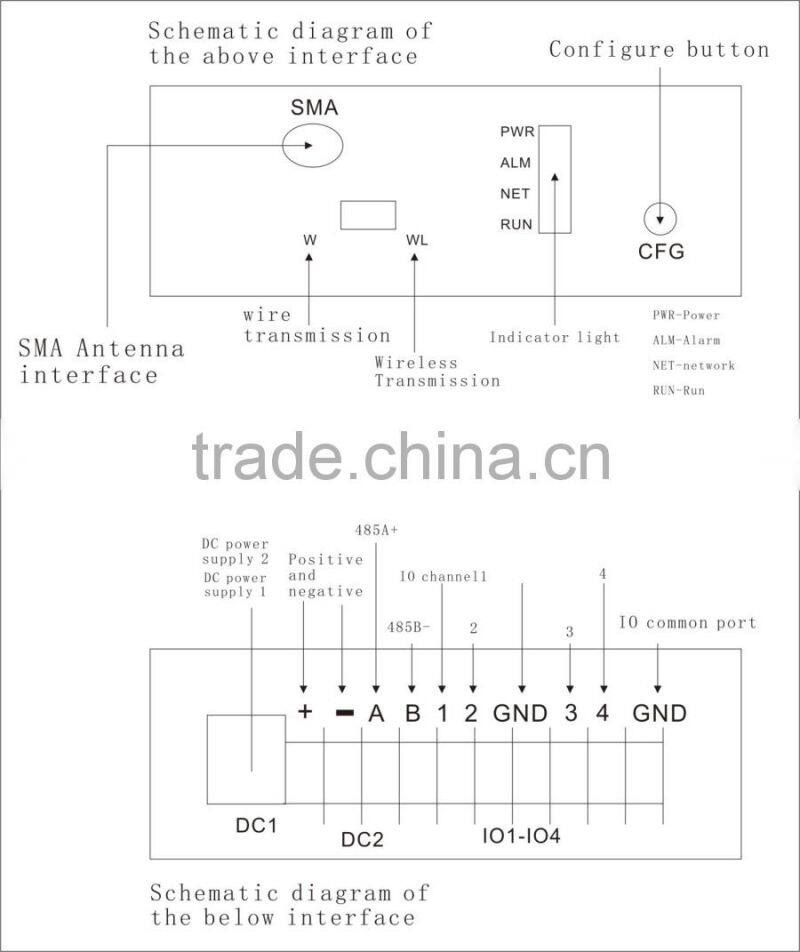

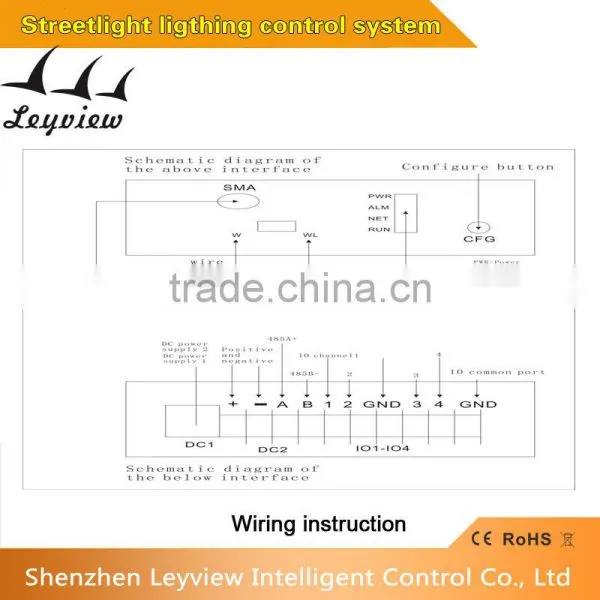

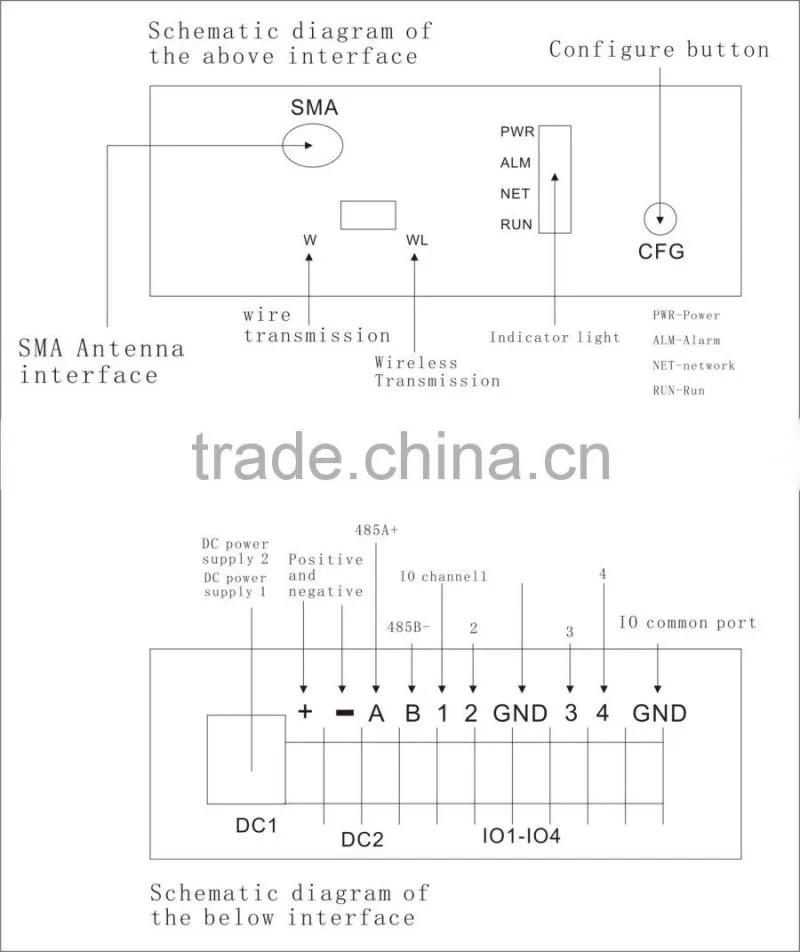

3.Wiring instruction
/en/
Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.
We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.
Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.
The competitive advantage of product line:
Question 1: Are you a factory or a trading company?
Answer: We are a factory.
Question 2: What's the main business of Leyview?
Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions.
Question 3: What' s the main products of Leyview?
Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI).
Question 4: What Leyview will do if we have problems after receiving your products?
Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we will do our best to solve any of your problems with our good after-sale service.
Question 5: How about your sales model?
Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.
