Excellent Efficiency Wide Usage Rotary Flat Screening Machine
RANGE OF APPLICATION
TQLM-series Rotary Flat Screen is mainly using planar rotary motion and equipped with corresponding specifications of screen surface to separate impurities from raw grain in order to achieve the purpose of cleaning raw grain. It can be used in the cleaning process of grain and oil processing plants and grain crushing workshop of distillery to remove impurities from raw grain according to grain size, meanwhile can remove parts of light impurities and can also be used in cleaning wheat, corn, rape seed, soybeen, barley, rice, peanuts, etc.
MATERIALS OF ROTARY FLAT SCREEN
a. The equipment is welded by high qualified steel.
b. The drive motor adopts Siemens or Wannan motor (a leading motor manufacturer in China which is located in the south of Anhui Province).
c. The steel of screen mesh is made of manganese steel punched holes, wear-resistance, longer service life.
d. The driving mechanism adopts imported Japan NSK bearings.
TECHNICAL SPECIFICATION
|
Types |
Output (t/h) |
Power (kw) |
Rotation rate (rpm) |
Air volume (m³/h) |
Weight (kg) |
Screen turning radius (mm) |
Dimension of whole machine (L*W*H) |
TQLM100a |
6~9 |
1.1 |
386 |
3200 |
630 |
6~7.5 |
2042*1448*1409 |
TQLM125a |
7.5~10 |
1.1 |
386 |
4500 |
800 |
6~7.5 |
2042*1698*1409 |
TQLM160a |
11~16 |
1.5 |
386 |
5600 |
925 |
6~7.5 |
2042*2146*1409 |
TQLM200a |
15~20 |
2.2 |
386 |
7200 |
1100 |
6~7.5 |
2042*2546*1409 |

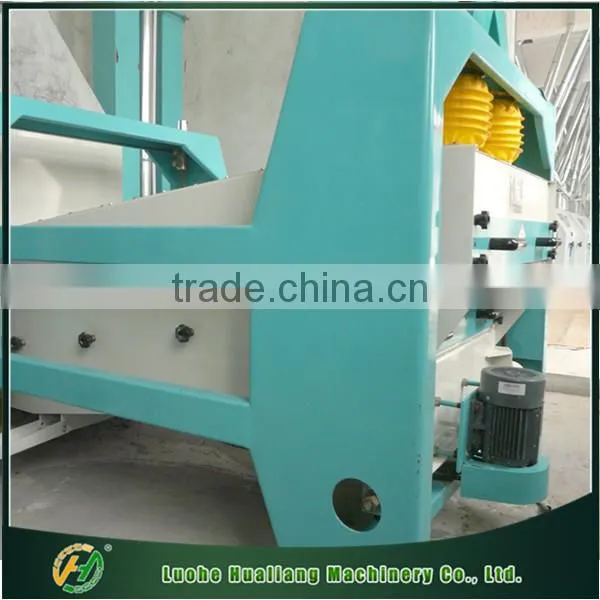

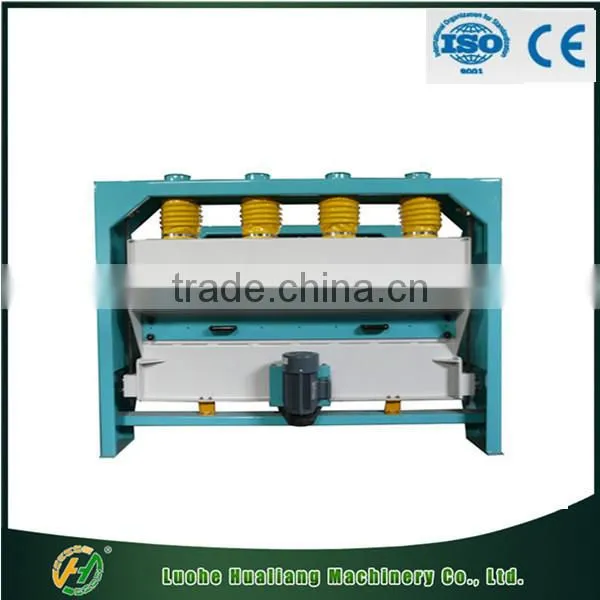

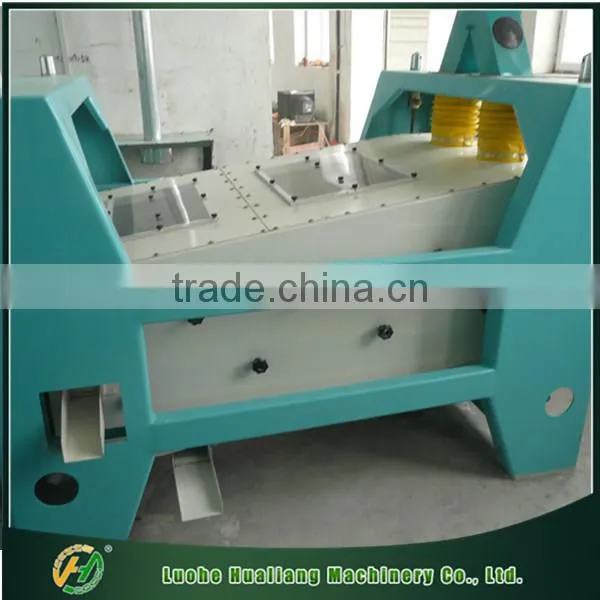

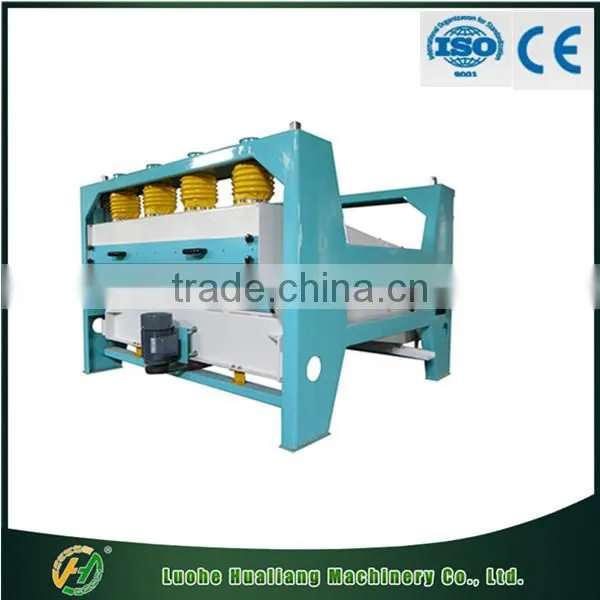

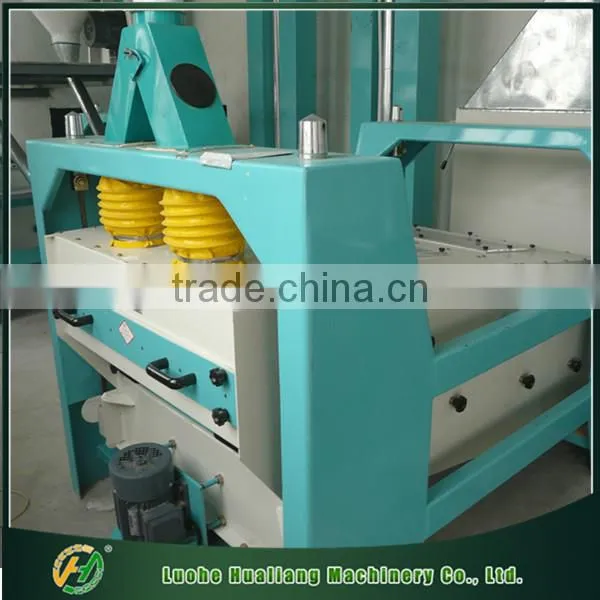

PRODUCT PICTURES
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
Luohe Hualiang Machinery is a professional manufacturer for cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lines, 20 technicians , professional sales and after-sales teams and produce nearly hundred kinds of equipments. Our equipments are mainly used in flourmill, starch factory, rice plant, rice flour plant, grains processing factory, Chinese traditional medicine processing plant, chemical factory, seed selection and other industries, while contacting 30-500 tons complete sets of flour machinery installation, design engineering.
Q1: How do i choose the machine model?
A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q2: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q3: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
