Barley Wheat Sesame Washing Machine With Drier

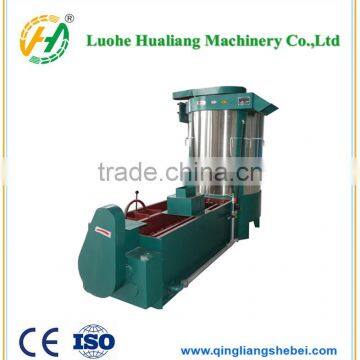

Barley Wheat Sesame Washing Machine With Drier photo-1

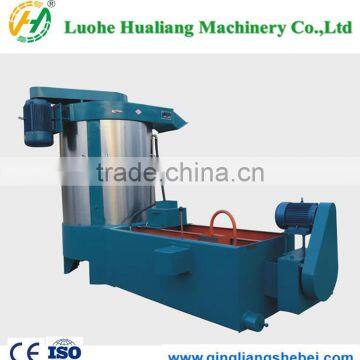

Barley Wheat Sesame Washing Machine With Drier photo-2
Barley Wheat Sesame Washing Machine With Drier photo-3
US$ 1,500 - 89,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Hualiang
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Hualiang
Model Number XML
Production Capacity 80%-90%
Voltage 380V
Power(W) 1.5kw
Weight 260kg
Dimension(L*W*H) 1500x480x1340mm
Certification IS0/CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas





                             XMS series of wheat washer



Application



XMSseries wheat washer is one of the main equipments in the grain processing to select wheat. This series equipment adopt water scrubbing method to remove sandstone in the wheat and dirt on the surface of wheat grains. It has good performance to

remove impurity of wheat, and the wheatgot into drier to drying after washing. This equipment is suitable for large, medium, and small flourmills.



barley wheat sesame washing machine with drier





Materials of design



  1. Wheat washer upper and low base adopt high strength cast iron materials.
  2. Watertight doors, screen piece, screw conveyor sink adopt stainless steel material.
  3. Upper and low bearings adopt airtight dustproof special bearings and pressure bearings.







 Technical specification





Types

XMS30

XMS40

XMS50

XMS60

XMS80

XMS90

XMS105

Output(kg/h)

600

1000

2000

3000

5000

6800

12000

Direr direction

anticlockwise

anticlockwise

anticlockwise

anticlockwise

anticlockwise

anticlockwise

anticlockwise

Main shaft speed(r/min)

960

735

610

585

480

400

380

Drier piece specification(mm)

300

400

500

600

800

900

1050

Screw conveyor diameter(mm)

115

135

135

135

135

185

185

Screw conveyor speed(r)

195

230

175

170

189

180

180

Power

90S-4(kw)

Y100L-4(3kw)

Y908-6(0.75kw)

Y100L-4(4kw)

Y908-6(1.1kw)

Y1328(5.5kw)

Y90L-6(1.5kw)

Y160-M-4(7.5kw)

Y112-M-6(1.5kw)

Y160-C-6(11kw)

Y112-M-6(2.2kw)

Y160-C-6(15kw)

Y112-M-6(2.2kw)

Dimension

(L*W*H)mm

1500*480*1340

1780*630*1700

2160*750*1640

2520*880*1760

3000*1110*2130

3340*1250*2280

3550*1400*2550

Weight(kg)

260

500

900

1300

2100

3000

3600

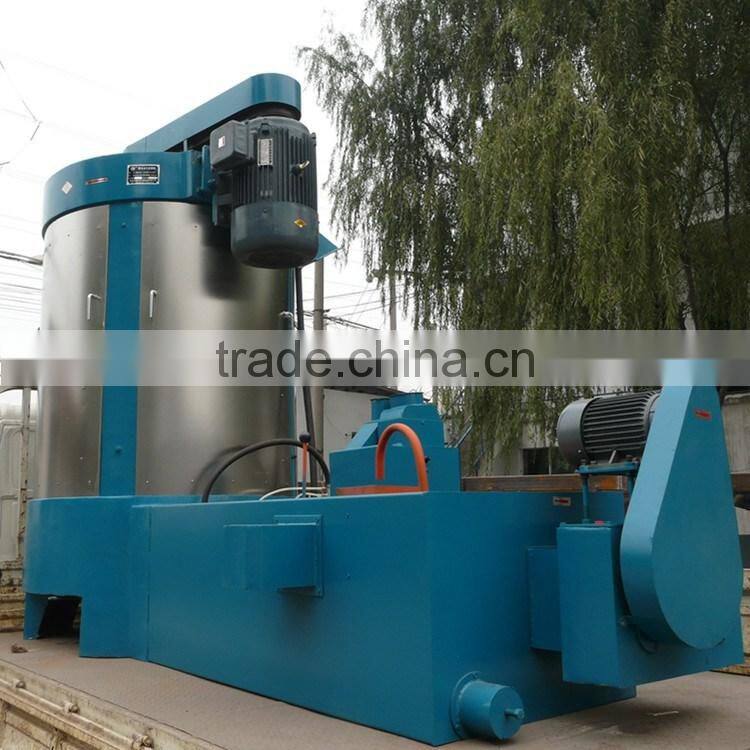

 product show







barley wheat sesame washing machine with drier

 Package

    The machine has been well coated by white plastic film,fixed in the container by ratchet straps,strong iro wire and steel wedge,in that case the machine can be deliver well after ocean sailing,also save cost.
