Professional Manufacturer of flour machine FDMW-series Horizontal Wheat Scourer
RANGE OF APPLICATION
FDMW-series Horizontal Wheat Scourer is mainly used for cleaning wheat, rye and other cereal. It can remove sundries adhered to the surface of wheat and mud, wheat corroded by disease and pest, wheat husk containing wheat, etc., which plays an important role in improving color of the flour and reducing the ash content. It has the advantages of stable operation, low noise, excellent technological performance etc.
MATERIALS OF WHEAT SCOURER
a. All the frames are welded by high qualified steel plate.
b. The main shaft adopts imported Japan NSK bearings, equipped with special bearing block, with good seal and dustproof effect.
c. The plate beater and the wing beater on main shaft are melded of 65# manganese steel plate.
d. The Screen mesh is welded by stainless steel screen and manganese steel.
e. Siemens or Wannan (a leading motor manufacturer in China which is located in the south of Anhui Province) motor is adopted.
TECHNICAL SPECIFICATION
Types |
FDMW40*120E |
FDMW40*150E |
FDMW40*150*2E |
|||||
Screen drum |
Diameter(mm) |
402 |
402 |
402 |
||||
Length(mm) |
1370 |
1570 |
1570 |
|||||
|
Screen mesh |
Types |
Woven screen mesh Welded screen mesh |
Woven screen mesh |
Welded screen mesh |
Woven screen mesh |
Welded screen mesh |
||
|
Screen pore dimension (L*W)mm |
20*1 28*1 |
20*1 |
28*1 |
20*1 |
28*1 |
|||
Main shaft speed(r/min) |
1081±20 |
1035 |
1050/1225 |
1050/1225 |
1035 |
1050/1225 |
1050/1225 |
|
Power(kw) |
5.5 |
7.5 |
11 |
11 |
2*7.5 |
2*11 |
2*11 |
|
Output(t/h) |
6~8 |
8~10 |
8~12 |
8~12 |
16~20 |
16~24 |
16~20 |
|
Weight(kg) |
680 |
750 |
760 |
760 |
1500 |
1520 |
1520 |
|
|
Dimension L*W*H (mm) |
2138*920*1770 |
2618*920*1770 |
2618*1390*1770 |
|||||

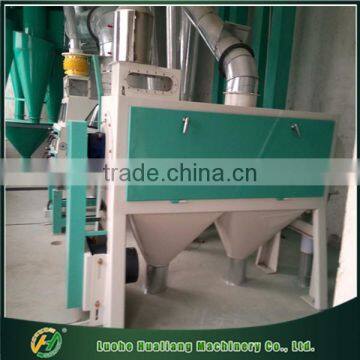

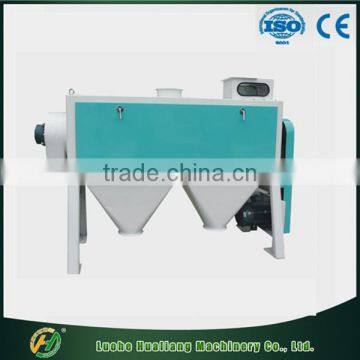

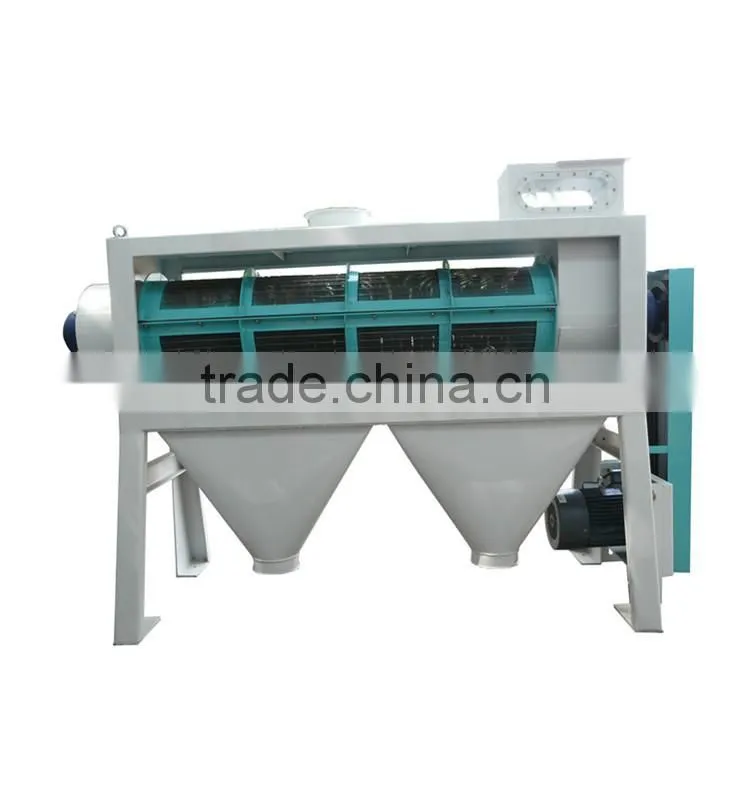

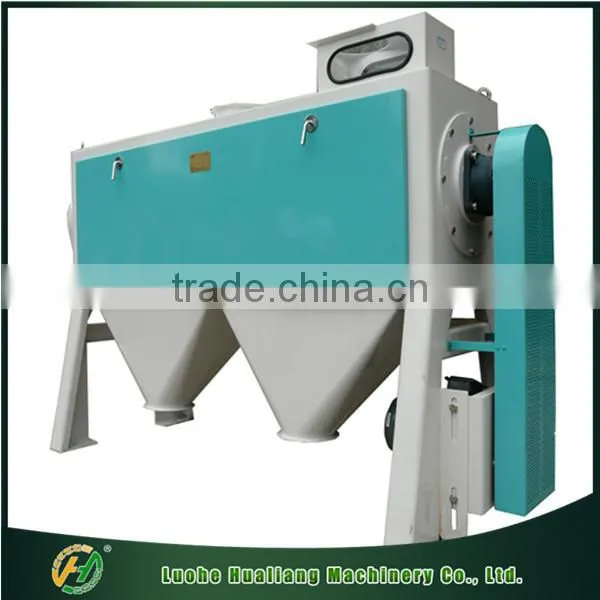

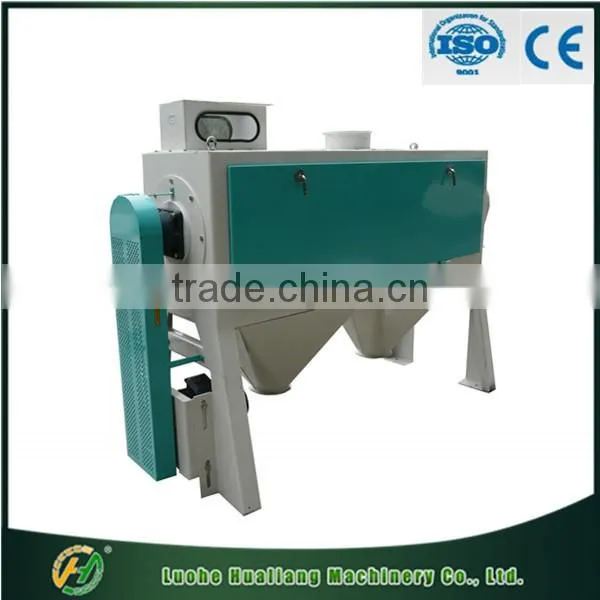

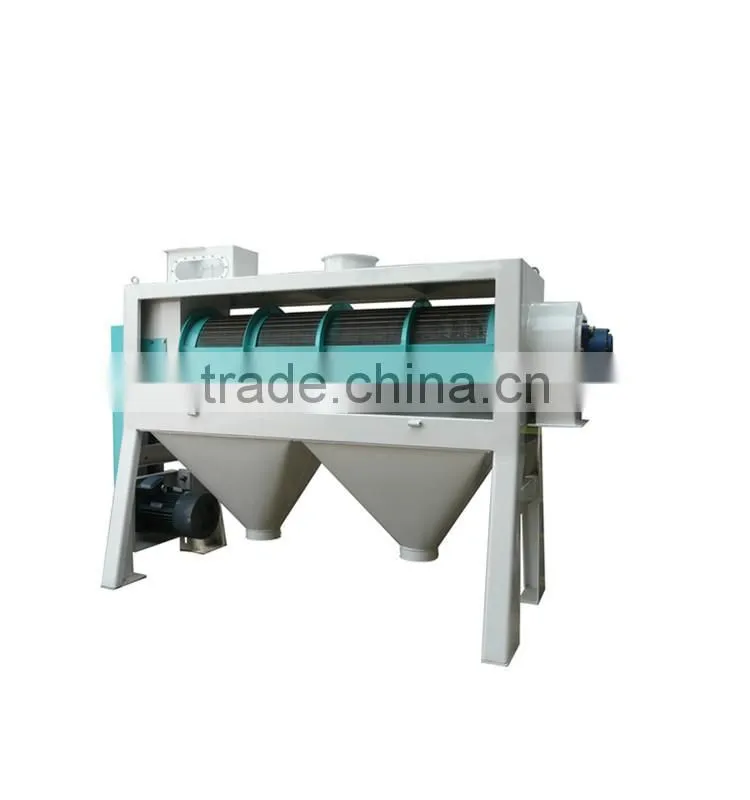

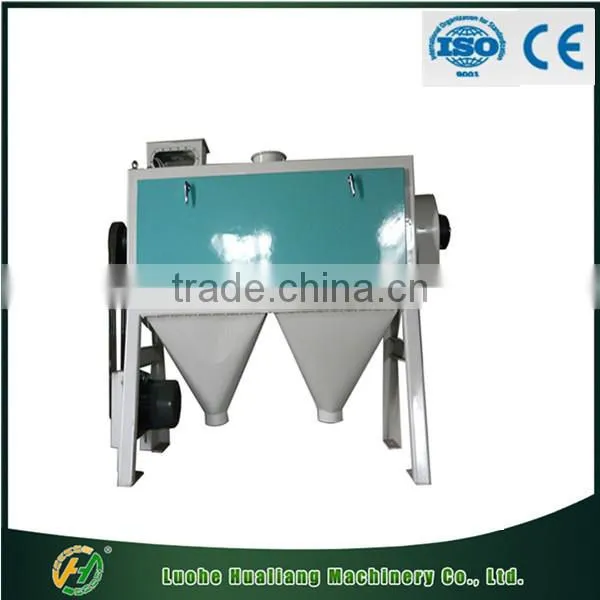

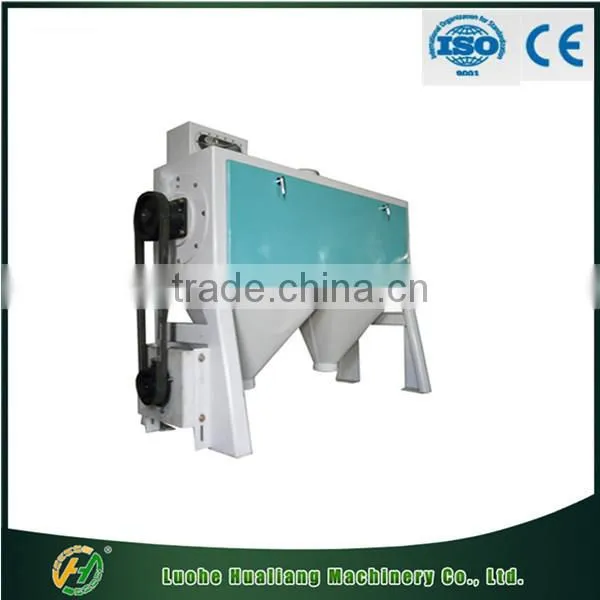

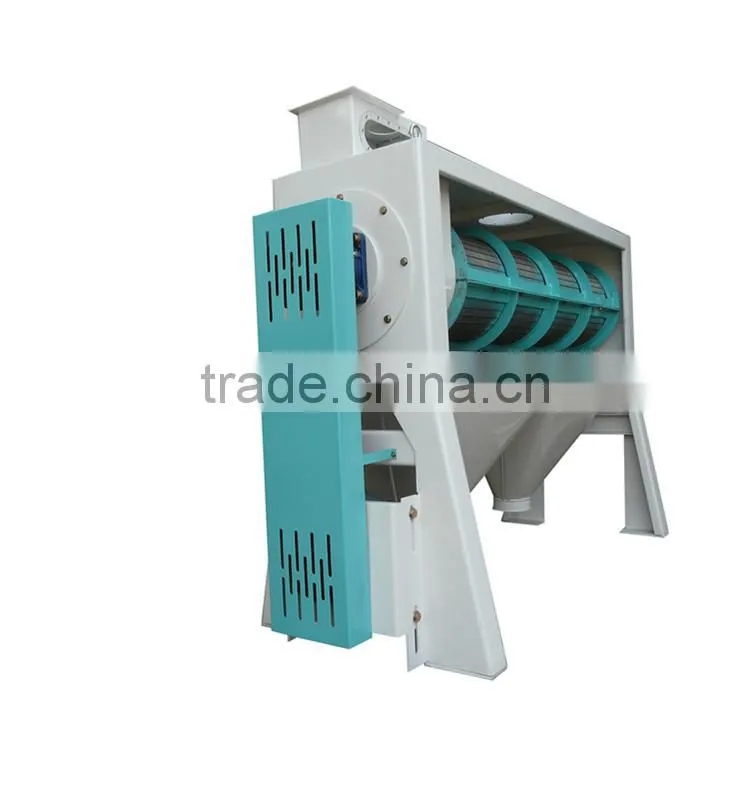

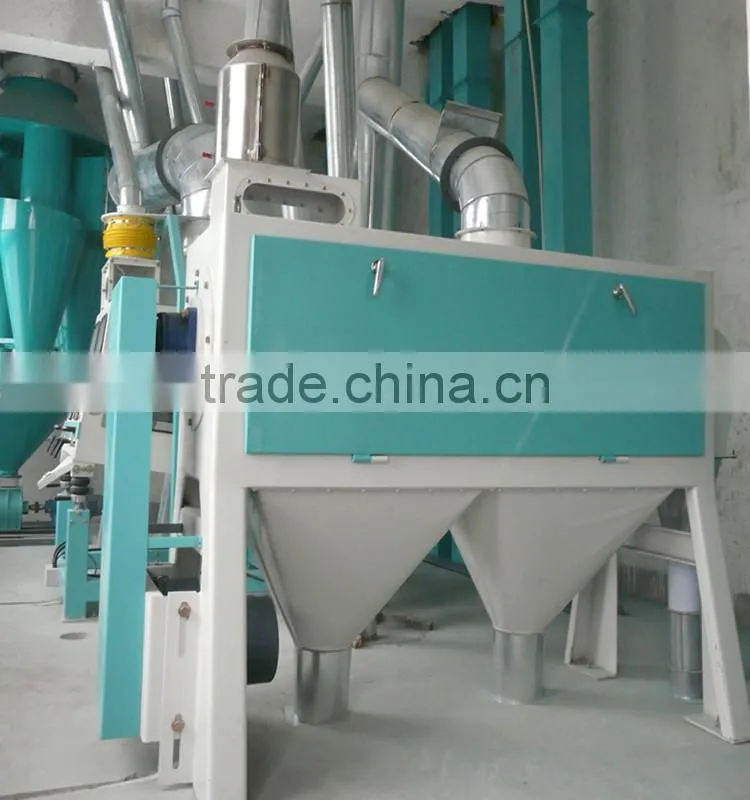

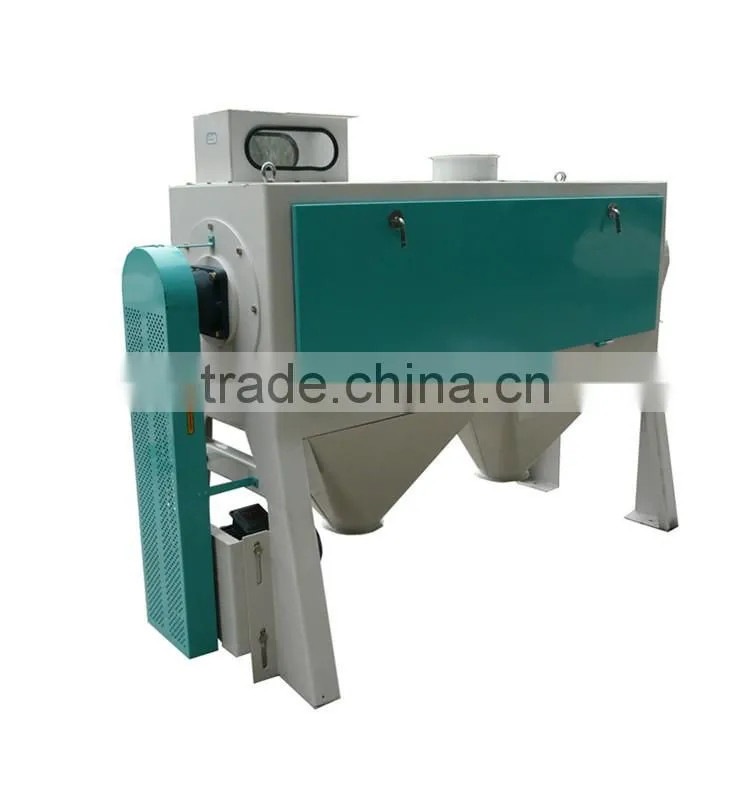

PRODUCT PICTURES
PRODUCT DETAILS
COMPANY INTRODUCTION
Luohe Hualiang Machinery is a professional manufacturer for cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lines, 20 technicians, professional sales and after-sales teams and produce nearly hundred kinds of equipments.
OTHER PRODUCTS
PACKAGING
SUCCESSFUL CASES
OUR SERVICES
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
FAQ
Q1.In addition to clean wheat, what it can also be used to ?
A: It not only can be used to clean wheat, can also be used to clean rye and other cereal.
Q2: How do i choose the machine model?
A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q3: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q4: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
