High efficiency automatic movable French bean cleaning and grading machinery
RANGE OF APPLICATION
TFXH-series Circulate Air Separator dust removal equipment is mainly used in grain cleaning process, air recycling and is a good energy-saving air separator and dedusting equipment to remove light impurities in the grain. Its greatest feature is: using light impurity axial pressure door discharge mechanism, and therefore fundamentally solve the light impurity screw conveyor often stuck phenomenon; adopts roller sine type feeding mechanism, so solve frequent mechanical failure of the feeding device; using large dust chamber to enhance the effect of dust reduction.
MATERIALS OF DUST REMOVAL EQUIPMENT
a. This equipment adopts double blower, with the better effect of dedusting and impurities separating.
b. The bottoms adopts double screw conveyor, closed air and received more convenient.
c. The motor adopts famous brand Siemens and low-speed permanent magnet motor.
TECHNICAL SPECIFICATION
|
Types |
Output (wheat) |
Power |
Absorbing air volume |
Weight |
Screen size (W*L) |
The dimension of whole machine (L*W*H) |
t/h |
kw |
M³/min |
kg |
mm |
mm |
|
TQLZ100*200 |
12~37.5 |
2*0.37 |
60 |
620 |
1000*1500 |
2180*1539*1673 |
TQLZ150*200 |
20~60 |
2*0.55 |
115 |
1040 |
1500*2000 |
2675*2115*1823 |
TQLZ180*200 |
22~70 |
2*0.75 |
135 |
1140 |
1800*2000 |
2675*2466*1823 |
TQLZ200*200 |
25~75 |
2*1.1 |
150 |
1250 |
2000*2000 |
2675*2643*1823 |
TQLZ125*200B*2 |
35~110 |
4*0.55 |
185 |
1750 |
1250*2000*2 |
2430*2950*2185 |

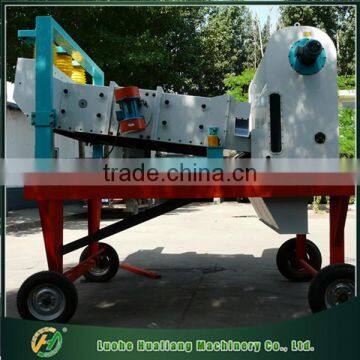

PRODUCT PICTURES
COMPANY INTRODUCTION
Luohe Hualiang Machinery is a professional manufacturer for cleaning equipment, dedusting equipment, powder cleaning device, washing equipment, lifting and conveying device and so on several series, with 14 years collect history. We have 10 production lions, 20 technicians, professional sales and after-sales teams and produce nearly hundred kinds of equipments. Our equipments are mainly used in flourmill, starch factory, rice plant, rice flour plant, grains processing factory, Chinese traditional medicine processing plant, chemical factory, seed selection and other industries, while contacting 30-500 tons complete sets of flour machinery installation, design engineering.
OTHER PRODUCTS

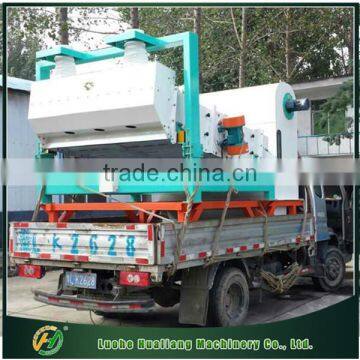

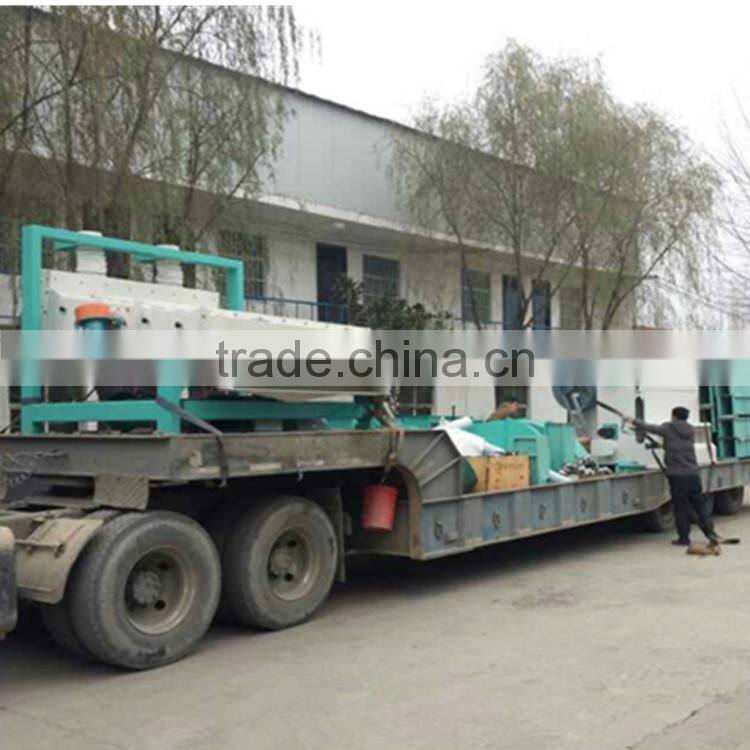

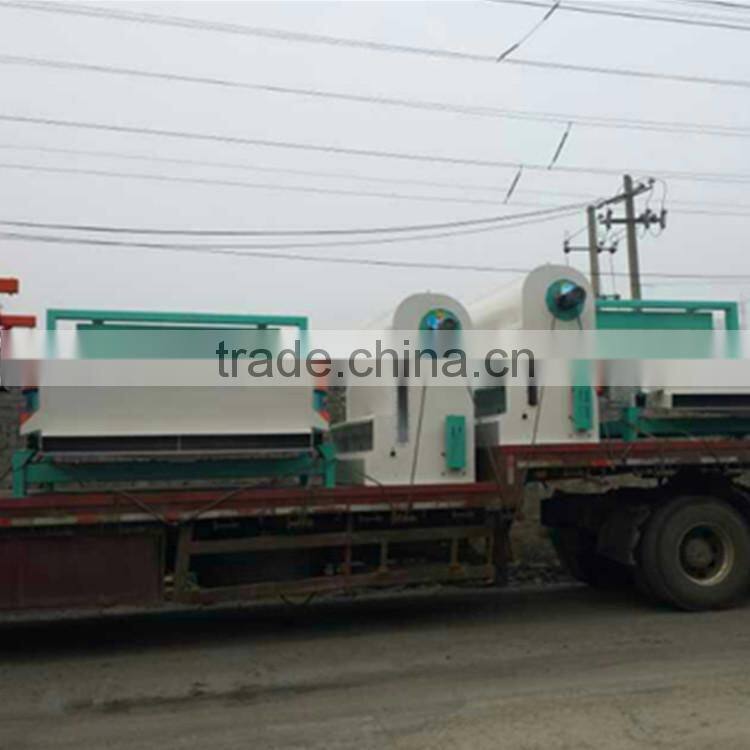

PACKAGING
SUCCESSFUL CASES
OUR SERVICE
We provide a turnkey project of flour machinery, including special design, installation, commissioning and training workers.
All of our new equipment to contain one year free spare parts, and quality guarantee period of one year.
At the same time our company will carry on the lifelong service to our products.
FAQ
Q1: How do i choose the machine model?
A: You should based on your washing products type and its output. Meanwhile we have professional pre-sales service personnal to help you find the most suitable product model.
Q2: If the machine fails to work, what should i do?
A: Don't worry. All of our new equipment to contain one year free spare parts and quality guarantee period of one year. At the same time, we will carry on the lifelong service.
Q3: Our staffs can't operate the machine, what can i do?
A: Our technicians will carry on training cuatomers' staffs until they can skillfully operate the machine. At the same time, will teach them some methods to solve the common faults of machines and daily repair and maintenance methods.
