Global universal excellent electric motor price

Wooden cases or standard packaging export container

Specifications

1.Enclosed structure
2.Low noise, long life
3.Durable machine
4.Newest advanced technology
5.ISO9001:2008

Global universal excellent electric motor price









Brief introduction



This series vibration motor is three-phase 380V, 50HZ induction motor, enclosed, self -cooled , horizontal installation. When the vibration motor in continuous operation ,the ambient air shall not contain corrosive and explosive gases , the ambient temperature must not exceed 40 degrees.



Working principle



1.This product consists of a special design of the motor plus eccentric block , when the motor rotates , the eccentric block generating excitation force by a motor is transmitted to the vibrating machinery .

2.simply adjust both ends of the outer eccentric block and eccentric block to form a certain angle so that the exciting force can be adjusted steplessly.



Working environment



Ambient temperature : -20 °C - 40 °C ( 40 °C should reduce power use )

Location: no more than 1000 meters ( over 1000 meters , but not more than 4000 meters , for each additional 100 meters , rated temperature limits should be lowered by 0.5 ° C ) .

Rated temperature rise: 65 ° C

Rated voltage : 380V

Rated frequency: 50Hz or Special frequency

Insulation class: B or F

Protection class : IP55



Feature



1. light weight and small size .

2. low noise.

3. fully enclosed structure , can work under any conditions of no dust explosion-protection requirements.

4. reasonable design and long service life .

5. complete models and specifications , can meet different needs vibrating purpose.

Technical Parameter of Motor



Model	Exciting Force(KN)	Frequency(/min)	Motor Power(kw)	Weight(kg)
YZS1.5-2	1.5	2870	0.12	13
YZS2.5-2	2.5		0.22	14
YZS3-2	3		0.25	20
YZS5-2	5		0.37	21
YZS10-2	10		0.75	31
YZS15-2	15		1.1	47
YZS20-2	20		1.5	68
YZS30-2	30		2.2	107
YZS50-2	50		3.7	210

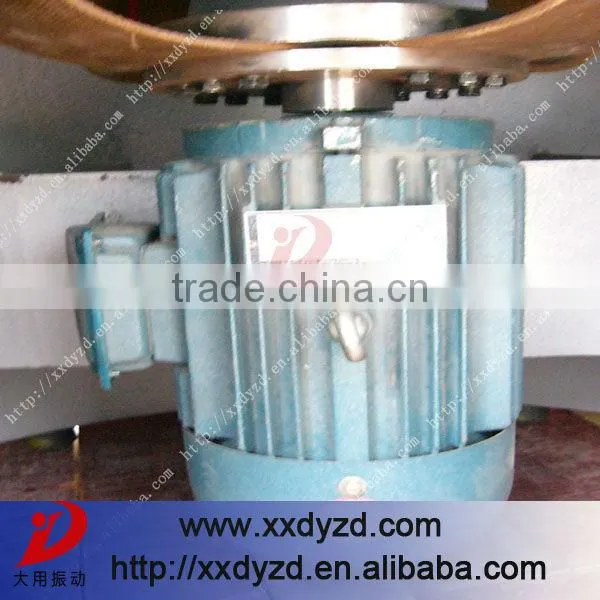

Pictures show



Special attention

When adjust the vibration force,the shaft vibration motor at both ends of the adjustable eccentric block must be adjusted to the same direction and same angle. Otherwise, the vibration force will be uneven, lead to reduce vibration motor life and vibration effect

Application and usage:

The series vibration motor is widely used in powdered granular bulk materials the mechanized conveyor , to material. Crushing, screening , filling , tap , modeling , doffing , silo anti occlusion vibration mechanical excitation source . It can be used alone , can also be used in combination with different installation methods , can meet different production needs . It is widely used in electricity, building materials , coal , mining , metallurgy , chemical industry, light industry, casting , petroleum and other industries .
