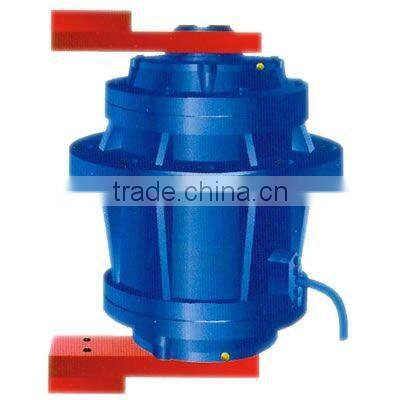

Three-phase Asynchronous Vibrating Motor For Vibrating Screen

Name: Three-phase Asynchronous Vibrating Motor For Vibrating Screen
Brand: Dayong
Price: USD $1,500 - 3,500 / Set

FOB Price

USD $1,500 - $3,500 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao Tianjin etc.
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Henan, China

Brand Name:

Dayong

Model Number:

YZUL-3-4,etc.

Packaging Details

Be packed in wooden case of international standard export packing.

Product Description

Specifications

1.Insulation class:B or F
2.High efficiency
3.Low energy consumption, low noise, long life
4.Vibrator motor for table

Using scope

Sieving Equipment—linear vibrating sieve,sieve mining,coal washing sieve,sieve abrasives,chemic sieve.

Conveying Equipment—vibration conveyor,conveyor drying vibration,vibration vertical lifting machine.

Using conditions

Ambient temperature---no more than 40°C

Altitude---no more than 1000 meters

Protection grade---IP55

Operation voltage---380V

Frequency---50HZ

Work style---SI

Technical parameters

Model	Maximum Exciting Force(N)	Synchronous Speed(rpm)	Power(KW)	Current(A)
YZUL-3-4	3000	1500	0.18	0.6
YZUL-5-4	5000	1500	0.25	0.74
YZUL-8-4	8000	1500	0.55	1.5
YZUL-10-4	10000	1500	0.75	1.85
YZUL-15-4	15000	1500	1.1	2.85
YZUL-30-4	30000	1500	1.5	3.6
YZUL-50-4	50000	1500	2.2	5.1

Note:we can redesigned the products according to users special demand.

Show

We are looking forward to your specific enquiries!

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd.

Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design, development, manufacture which is also the first domestic production of vibrating screen equipment manufacturers. At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.

The DY series we produced ultrasonic screening machine, CNC standard test sieves widely used in food, medicine, chemical industry, metallurgy abrasives, plastics, glass, paint, nuisance processing. Our products have a wide range of application, screening accuracy, large handling capacity, long service life advantages compared with their peers. We have 65 experienced R & D personnel, We can offer different products to meet your needs.

Our company has a superior geographic position and rich traffic. It takes about over one hour away from the Xinzheng airport . Welcome friends come to visit.
Let the world is not difficult screening material!
