Specifications

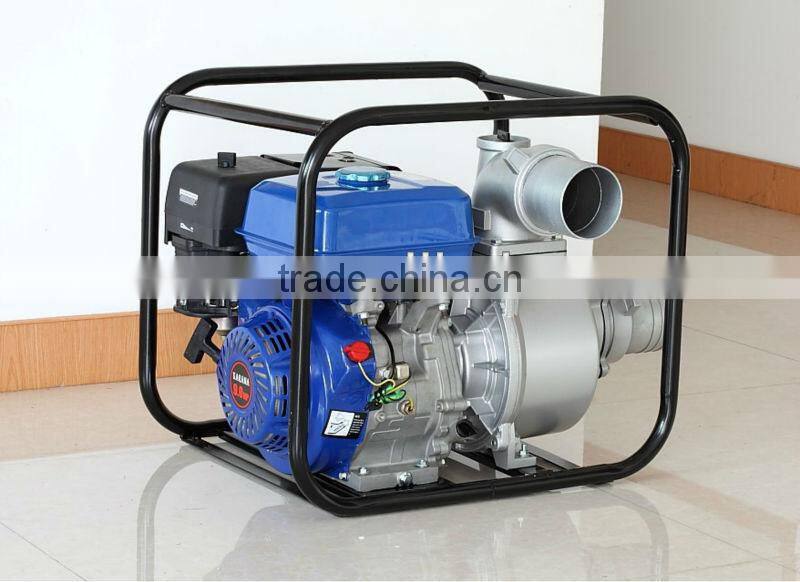

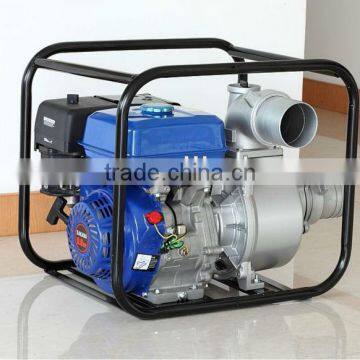

GASOLINE WATER PUMPMECHANICAL SEALED
VIBRATION-PROOF DESIGN
POWER BY LAUNTOP ENGINE
PRESSURE CASTING ALUMINIUM PUMP BODY
Feature:
1. Full Frame design
2. High Performance
3. Easy Operation
2" 3" 4"
Qty(20FCL): 360SETS 320SETS 280SETS
Qty(40HQ): 900SETS 820SETS 680SETS
MODEL | WP-20 | WP-30 | WP-40 | |
PUMP | Suction/Discharge Port Dia. | 50(mm) | 80(mm) | 100(mm) |
Max. Capacity | 370 (l/m) | 600 (l/m) | 1100 (l/m) | |
Max-Suction Head | 8(m) | |||
Max-Head | 26 (m) | 30 (m) | 30(m) | |
Max. Flow | 30(m³/h) | 60(m³/h) | 80(m³/h) | |
ENGINE | Model | 168F | 168F-1 | 188F |
Max. Output | 5.5HP | 6.5HP | 13HP | |
Displacement | 163 cm³ | 196cm³ | 389cm³ | |
Rated Rotational Speed | 3600rpm | |||
Dim.& N.W. | N.W. | 23KG | 24KG | 45KG |
Packing Size | 480x380x420mm | 510x390x460mm | 615x435x510mm | |
