Specifications

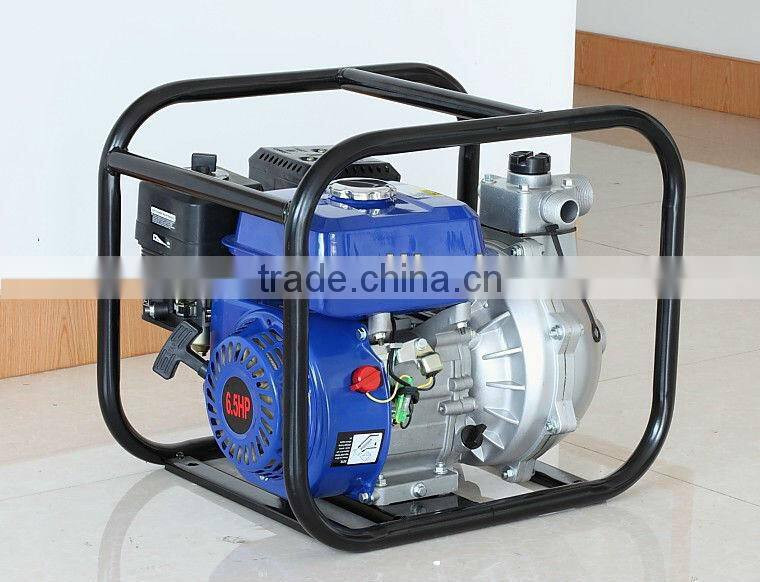

GASOLINE WATER PUMPMECHANICAL SEALED
VIBRATION-PROOF DESIGN
POWER BY LAUNTOP ENGINE
PRESSURE CASTING ALUMINIUM PUMP BODY
Feature:
1. Full Frame design
2. High Performance
3. Easy Operation
4. High lift
MODEL | HP-15 | 2HP-15 | HP-20 | |
PUMP | Suction/Discharge Port Dia. | 40(mm) | 50(mm) | 50(mm) |
Max. Lift | 55m | 75m | 65m | |
Max-Suction Head | 8(m) | |||
Max-Head | 26 (m) | 30 (m) | 30(m) | |
Max. Flow | 20(m³/h) | 12(m³/h) | 20(m³/h) | |
ENGINE | Model | 168F | 168F | 188 |
Max. Output | 6.5HP | 6.5HP | 13HP | |
Displacement | 163 cm³ | 196cm³ | 389cm³ | |
Rated Rotational Speed | 3600rpm | |||
Dim.& N.W. | N.W. | 25KG | 29KG | 60KG |
Packing Size | 480x380x420mm | 520x400x450mm | 600x480x540mm | |
Qty: 20” FCL 180SETS 40”HQ 400SETS
