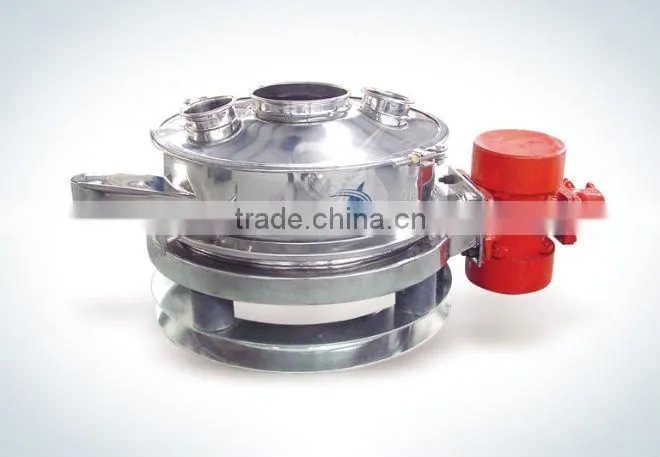

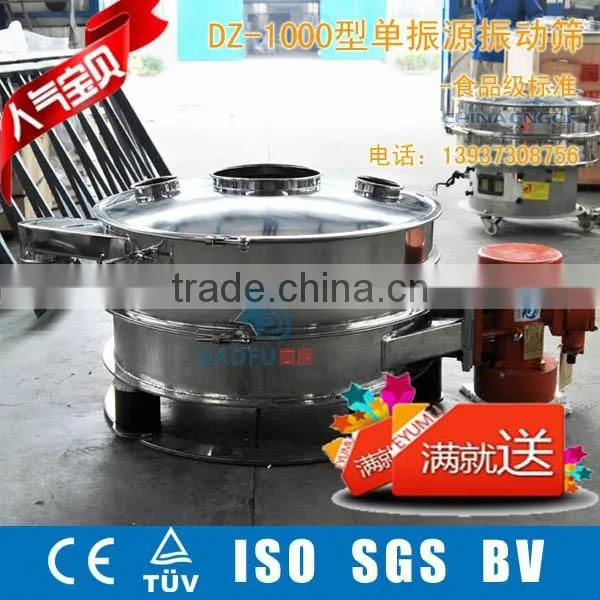

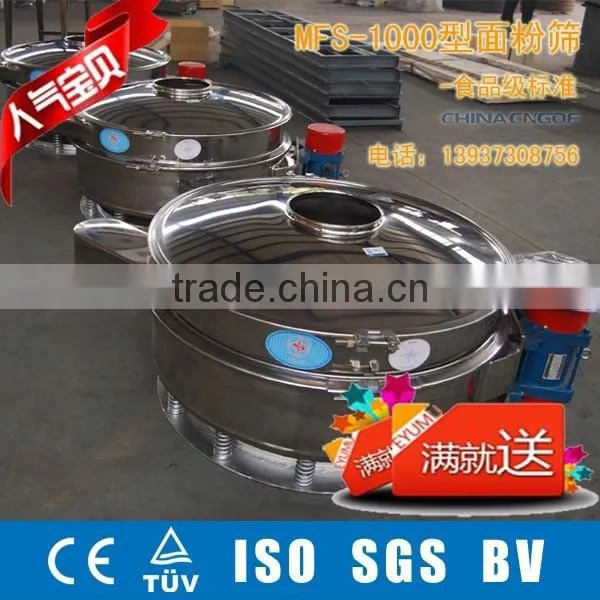

New type flour sieving machine for wheat flour
It is a new-type screening machine, using a single horizontal vibration motor, discharge the materials directly, having a greater handling capacity. It is used in screening granules and powders of flour, starch, detergent ,metal powder, additive, chemicals, non-mining industries etc. roughly, precisely. All products contact parts are made of stainless steel ,elegant design and durable, small dimension, save space and easy to move. Automated operations, a 24-hour continuous production.
Special structure design :
Design of ultra-low-mute, Seal stringent, liquid does not leak, the powder will never be soared. It is easy to clean up the internal and external, non-health corner, meeting with food-grade GMP standards.
How many apertures is it suitable ??

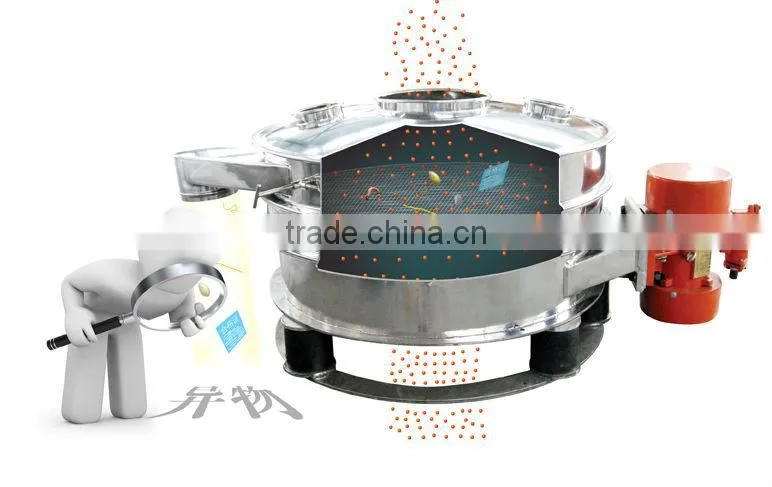

This innovation also enables the bottom outlet to be located directly below the top inlet, allowing material to fall vertically through the screen at high rates. Available from 600mm.800mm.1000mm and 1200mm in diameter.

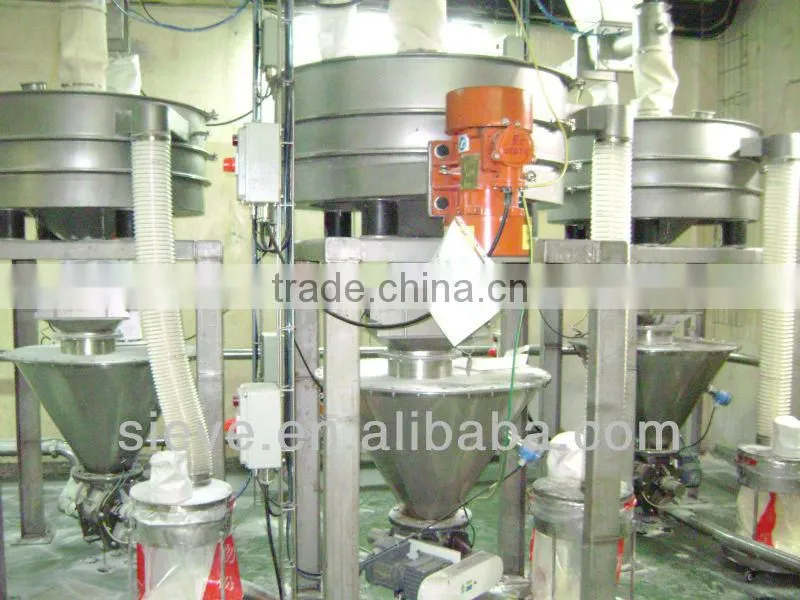

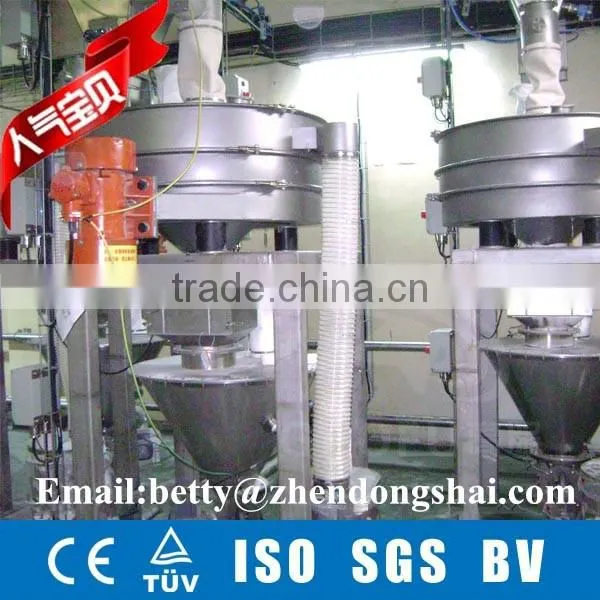

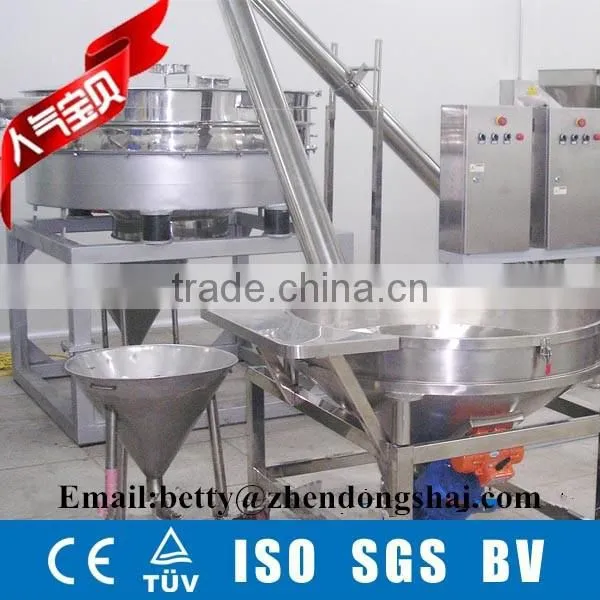

The shaker sieving machine 'customer :Nestle company
Features of vibrating sieve machine:
(1). Compact, light weight, mobility,
(2). Low noise and pollution,
(3). Less energy consumption and easy installation.
(4). The machine outlet can be connected to any direction. Sieved material can be discharged straight away, suitable for automated operation.
(5). No blockage on screen, high efficiency, applicable for 400 mesh or finer.
Introduction
.
Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
Technical parameters
Model |
Power (kw) |
Motor speed (r/min) |
Sieve diameter (mm) |
Dimension(mm) |
Wight(kg) |
MFS-600 |
0.18 |
1450 |
580 |
1000*600*550 |
200 |
MFS |
0.25 |
1450 |
780 |
1100*800*600 |
250 |
MFS |
0.55 |
1450 |
960 |
1280*1000*700 |
330 |
MFS |
0.75 |
1450 |
1160 |
1550*1200*750 |
400 |
MFS |
1.5 |
1450 |
1460 |
1850*1500*900 |
750 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.
Our Company:
Our company has more than 30 years experience in machinery manufacturing industry , so We can provide you professional free technical service.

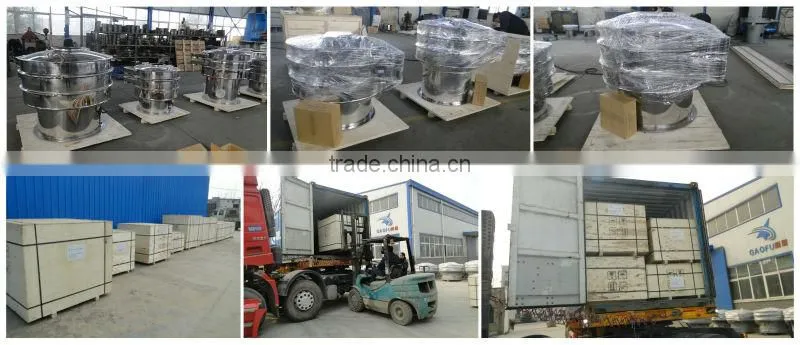

We ever exported this machine to America , Australia , Canda , Chile , Trinidad , and Tobago , Peru , Ghana and so on .And the perfect quality of the machine acquire many my customers` great praise .
Our company has passed the ISO9001:2008 Quality system certificate , and obtained the CE certificate.

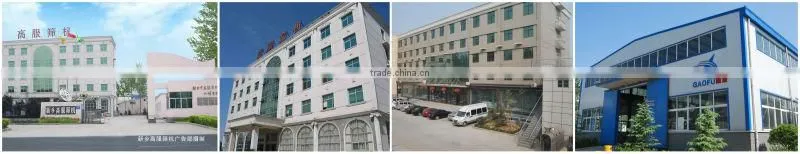

- Our factory
