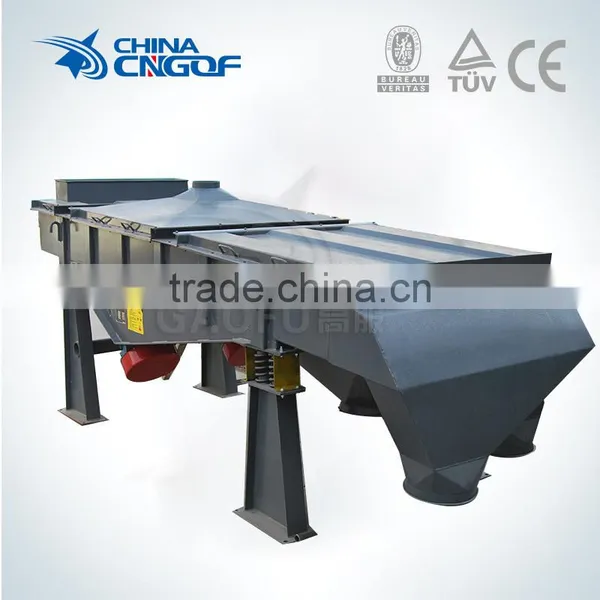

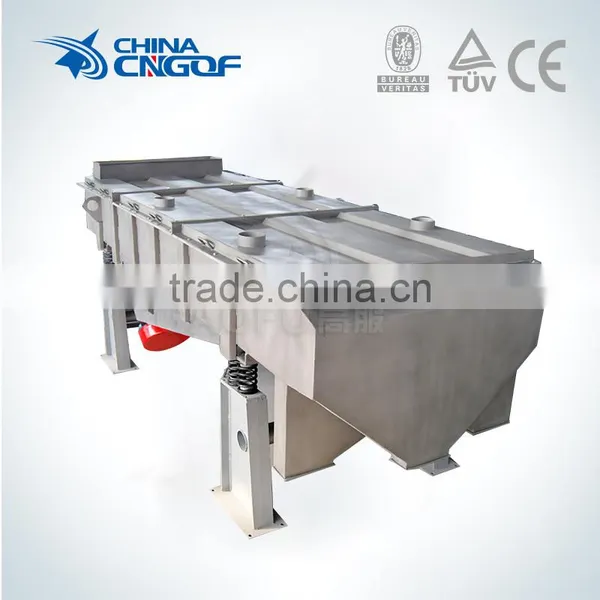

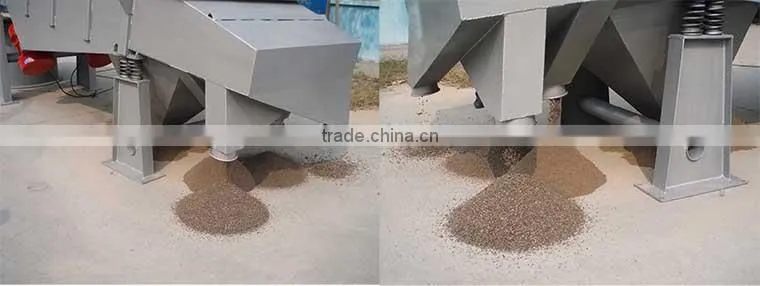

SZF series heavy duty sand sieving machine
from xinxiang Gaofu
About the silica/quartz sand screening
Gaofu company committed to study silica/quartz sand screening, generally speaking, if your capacity is 3-5t/h, and the screen mesh is 16mesh, 18mesh, 24mesh, we usually suggest the SZF-1025 linear vibrating sorting machine. Of course, except the silica/quartz sand, this kind of machine also can be used to screen river sand, limestone, marble powder etc.
Brief Introduction

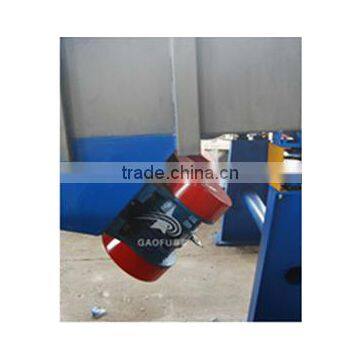

Linear vibrating sorting machine uses motor as the vibration source, making materials be tossed and move forward in a straight line on the screen. There are several balls on the bottom of screen frame hit each other when vibrating, which can clear screen and avoid blocking effectively.
Technical parameters
| Model | Size (mm) | Material granularity (mm) | Screen surface leanangle(º) | Amplitude(mm) | Layers | Powers |
| SZF-520 | 500*2000 | 0.074-10 | 0º—7º | 4——10 | 1——6 | 2x(0.4-0.75) |
| SZF-525 | 500*2500 | 2x(0.4-0.75) | ||||
| SZF-1020 | 1000*2000 | 2x(0.4-0.75) | ||||
| SZF-1025 | 1000*2500 | 2x(0.4-1.1) | ||||
| SZF-1030 | 1000*3000 | 2x(1.1-1.5) | ||||
| SZF-1040 | 1000*4000 | 2x(1.1-1.5) | ||||
| SZF-1235 | 1200*3500 | 2x(1.1-2.2) | ||||
| SZF-1250 | 1200*5000 | 2x(1.1-2.2) | ||||
| SZF-1535 | 1500*3500 | 2x(1.1-2.2) | ||||
| SZF-1565 | 1500*6500 | 2x(2.2-3.7) | ||||
| SZF-1845 | 1800*4500 | 0.074-15 | 2x(2.2-3.7) | |||
| SZF-2050 | 2000*5000 | 2x(2.2-3.7) | ||||
| SZF-2260 | 2200*6000 | 2x(2.2-3.7) |
Features
♦ High screening efficiency, can be screened up to 200 mesh (0.074mm)
♦ Simple and convenient for changing and cleansing mesh screen
♦ Low noise and power consumption, easy maintenance
♦ Less blocking of mesh screen
♦ Automatic discharge of impurities and coarse materials, continuous operation

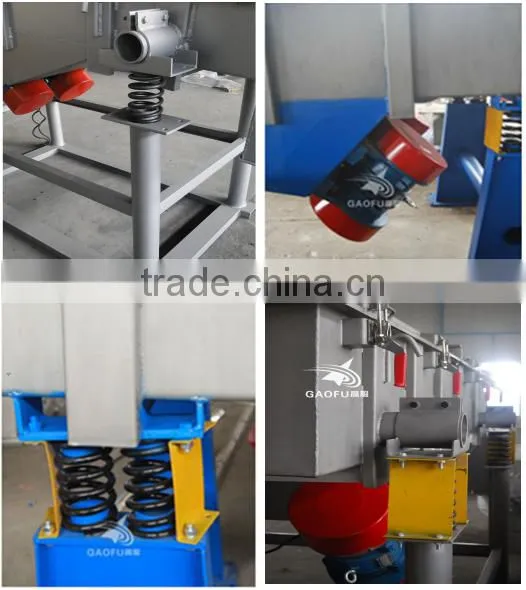

Product Details
Gaofu Company adhering to the ideal of " Honest Service Highest Quality ", strictly control each process, every part strive to perfect.

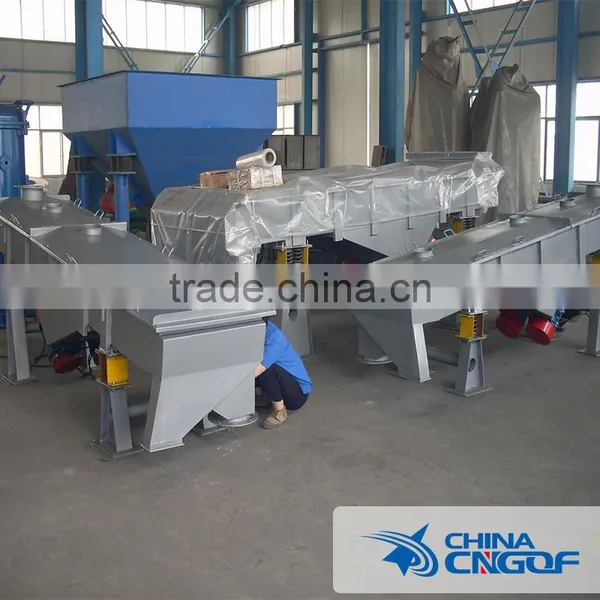

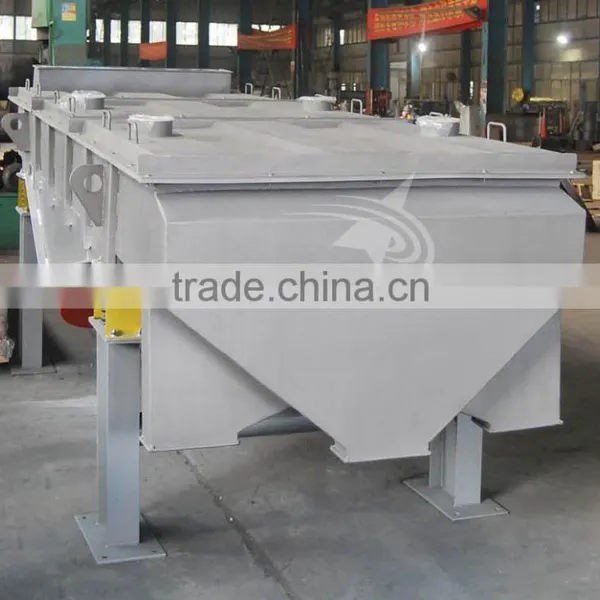

More machines pictures

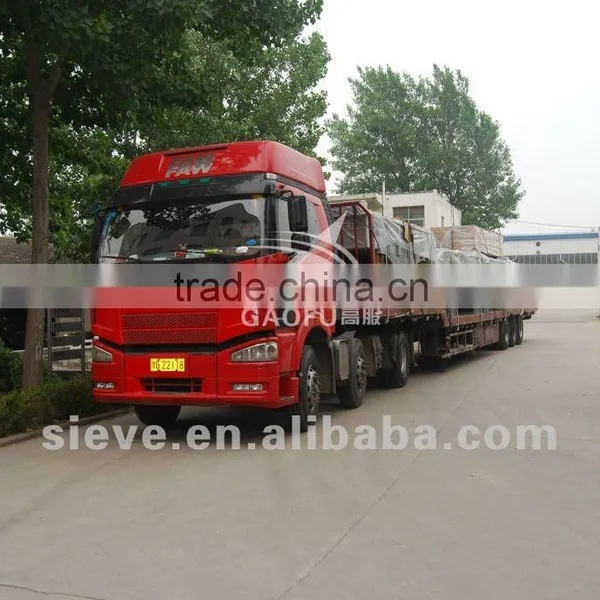

Packing & Shipping
Container storage according to the customer's requirements.
Customer worksite
Company Information
Gaofu company founded in 1982, 30 years of development history, gradually improve and integrated industrial chain;Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industries.With 56 national patents, is a design and production capacity of integrated machinery manufacturing company.
Gaofu has the prefect team, no matter what the R & D team, sale team, or after-sale team.
Various customer come to Gaofu every year
ISO and CE Certification
FAQ
1. What it does?
a:Separate solids from liquids or segregate dry materials into various sizes.
2. How it works ?
Basically,Gaofu separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery.
3. Any self-cleaning devices on the sieving machine ?
Yeah, Gaofu's Self Cleaning Kits aid in screen cleaning for increased screening efficiency. By reducing the amount of near-size particles lodged in the openings of the wire mesh (blinding), the Self Cleaning Kit improves dry sizing and liquid/solid separation. Gaofu offers several options with Self Cleaning Kits, including sliders and bouncing ball.
If you are interest in our product, please don't hesitate to contact with us.
