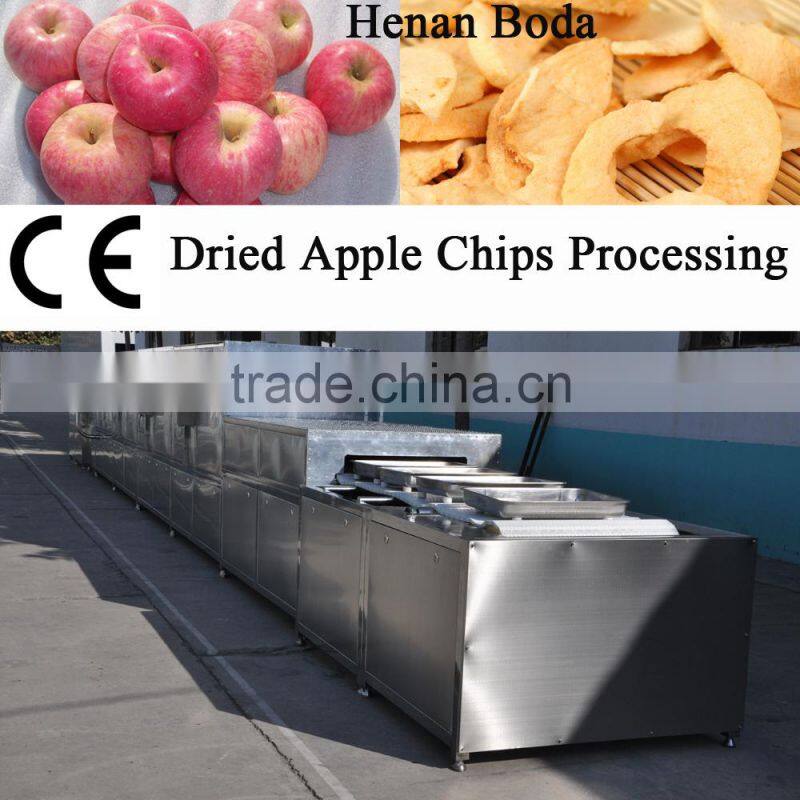

fruits and vegetables dehydration machines
- 10 Set / Sets per Month
- China Main Port
- T/T
Product Details
Condition: | New | Type: | Other, Drying | Automatic Grade: | Automatic |
Place of Origin: | Henan, China | Brand Name: | BODA | Model Number: | BDMD-F-P-75 |
Voltage: | 380V/50hz | Power(W): | 75KW | Dimension(L*W*H): | 10x2x1.8m |
Certification: | CE ISO | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Unique New Technology Fish Microwave Drying Machine
Note:Our machines shall be designed,manufactured to meet your special production requirements,please contact us to talk details.
Voltage | 380V±10% 50Hz 3 phase |
Input Power | ≤80Kw |
Output Power | 70Kw (microwave power is adjustable) |
Microwave frequency | 2450±50MHz |
Machine overall dimension(LxWxH) | 10x2x1.8m |
Machine installation area(LxWxH) | 12x3x3.5m |
Transmission speed | 0.5~5m/min(adjustable) |
Transmission motor power | 0.4Kw |
Material spreading thickness | 20~50mm(adjustable) |
Material feeding method | by manpower |
Ambient temperature for operating | 0-40℃ |
Working Humidity | ≤80% |
Magnetron cooling method | Air cooling |
Transformer cooling method | Air & oil cooling |
Microwave leakage | ≤1mw/cm2 |
Temperature measurement method | infrared temperature probe |
infrared temperature probe quantity | 4 pcs |
Measuring Rang | 0~300℃ |
Accuracy of measuring temperature | ±1℃ |
Operating method | Touch screen |
Control method | PLC(Siemens brand) |
Conveyor belt | PTFE mesh belt-food grade, width is 1.1mm, length is 12m. |
Steel material | Stainless steel 304-food grade |
1. Working power: Voltage 380V, Frequency 50HZ.
2. Patent core components manufactured by BODA, reliable and stable performance.
3. Whole machine chamber are made with anti-corrosion stainless steel, with smooth appearance and easy for cleaning.
4. Interface operation and on-site monitoring, PLC auto-control system, all the datum can be saved, output and printed etc.
5. Working parameters can be seted easily according to different drying demand according to different materials.
6. Microwave power stepless adjustable, conveyor speed adjustable, temperature and humidity are intelligent controled.
7. Machine start, power off automatically, drying material and microwave generator can start and off synchronously.
8. Adopting Non-contact infrared measuring temperature technology, ensure the accuracy of temperature control easily.
9. Material loading and unloading operated easily, easy for connecting to other process, can achieve automation flow operation easily.
10. BODA unique ventilation system can speed up moisture removal speed, raise drying efficiency.
11. Conveyor material is teflon, which can resist high temperature to 300 celcius.
12. Conveyor auto deviation-checking device can keep the machine running smoothly and steadily.

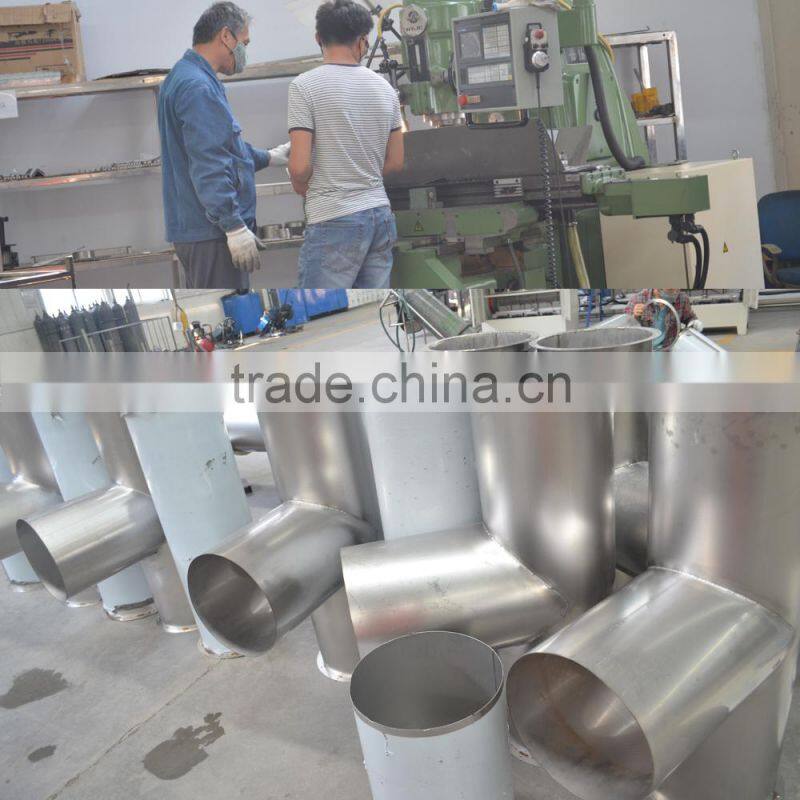

Manufacturinng
Processing

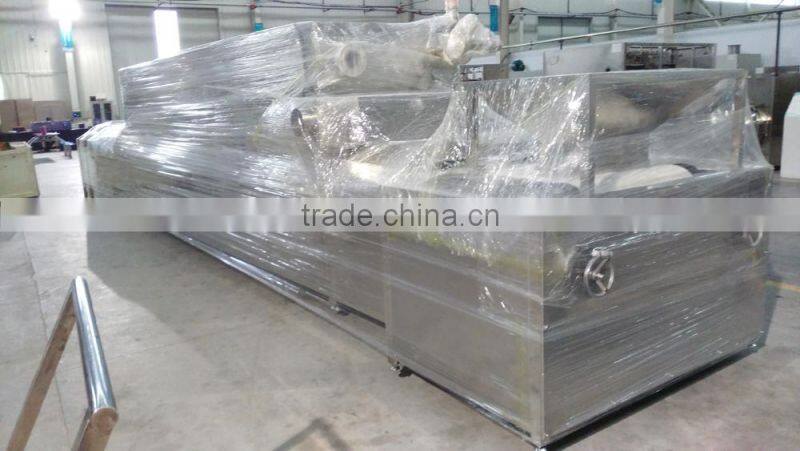

Packing
|
1. Are you a factory or a trader?
We are the largest and influential microwave equipments manufacturer in China, with registered capital of 26 million, setting scientific research, production, sales and service as a whole.
2. Where is your headquarters? And where is your factory?
Our headquarters is located in Building 18, No. 1, Cuizhu Street, High-tech Zone, Zhengzhou City, Henan Province, China.
The headquater is an executive office building with 9 floors.
Our factory located in the Crossing of Hongnan Road and Qingyang Street, High-tech Zone, Zhengzhou City, Henan Province, China. It takes about 20 minutes by car from our headquarters to our factory.
3. Do you have your own brand?
Our Registered brand is:BODA
Registration No: 7475478
Validity Period: 2010-10-14 ~ 2020-10-13
Approved Goods: foundry machinery, tea production equipment, dryer, ceramic production equipment, roaster, metal mixer, rotary kiln, electron industry equipment, static industry equipment, pharmaceutical processing machinery.
4. Please let me know your R&D team & capability?
R&D team consists of 65 outstanding engineers engaged in industrial microwave for years; 6 of them are professors and associate professors, 2 of them are senior professionals, who are engaged in high-end and novel products development as well as technological research and reformation. The others are technical staff, with veteran work experiences on technology transfer and application, engineering support and on-site management. With strong capability of R&D and technical transformation, we have set up a stable platform successfully on transforming its fruits from science to technology, technology to final products.
Equipped with the first-class R&D hardware facilities, our labs are operated and managed in accordance with ISO 9001 standard.
5. Which type of equipment is better for me?
Please inform us more information about your requirements, and our team will discuss together and offer the best solution to you soon.
