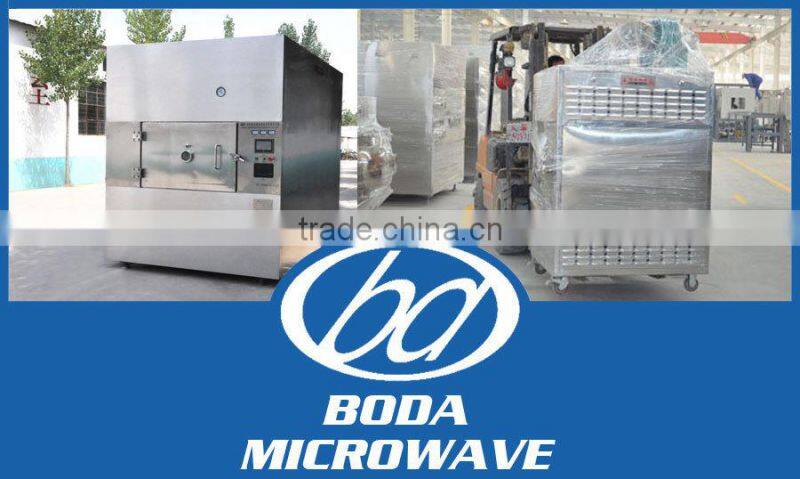

Batch microwave Vacuum Dryer
- 10 Set / Sets per Month
- Qingdao Shanghai Tianjin Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | boda |
Model Number: | BDMD-M-V-30 | Type: | Dryer | Voltage: | 380V |
Power(W): | 30000 | Weight: | 3500KG | Dimension(L*W*H): | 3m*2m*2.5m |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Batch microwave Vacuum Dryer
Product Name | batch vacuum microwave food dryer |
Model | BDMD-M-V-30 |
Operating Voltage | 380V±10% |
Supply Frequency | 50Hz |
Rated Current | 80A |
Max Input Power | 40KW |
Supply Power | ≥55KVA |
Microwave Frequency | 2450±50MHz |
Max Output Power of Microwave | 30KW |
Dimensions (L*W*H) (mm) | 2800×2000×2300 |
Machine Size (L*W*H) (mm) | 4500×3000×2600 |
Inner Dimension (mm) | Φ1700×1100 |
Material | stainless steel |
Weight | ≈3 tons |
As compared with conventional drying methods, which are heating from the outside to the inside by heat conduction, microwave show so-called volume heating with the following advantages:
- a temperature gradient directed towards the surface, i.e. temperatures inside are higher than outside, giving rise to a higher partial pressure that drives the evaporating liquid to the surface
- consequently, the superficial layer does not dry up completely and the surfaces remain permeable
- the liquid evaporating inside the product is emitted through the porous structure of the solid material’s macro-capillary system, resulting in a high drying velocity
- the heating of water and most organic solvents occurs selectively - due to the greater dielectric losses of water as compared to the product to be dried
- swift and thorough drying of moist products with low thermal conductivity
- static drying of thick layers without frictional losses
- high total efficiency of energy application
- high-speed control of the energy transport
- short processing times, i.e. suitable for automated manufacturing
Drying method | Microwave | Boiling | Hot air | Vibrating |
---|---|---|---|---|
Temperature | low | high | high | high |
Time | short | long | long | short(several times) |
Quality | very good | good | normal | normal |
Loss | none | little | much | much |
Solubility | good | good | normal | bad |
Appearance | very good | good | normal | noraml |
Consumption | low | high | high | high |
Continuous | available | difficult | N/A | difficult |
Sterilization | good | bad | bad | bad |
Drying method | MW+Vacuum | Freezing | Vacuum | Spray |
---|---|---|---|---|
Temperature | low | very low | low | high |
Time | short | long | very long | short |
Quality | good | good | normal | bad |
Loss | none | little | none | much |
Solubility | very good | very good | normal | normal |
Appearance | good | good | bad | normal |
Consumption | low | very high | high | very high |
Continuous | available | difficult | N/A | available |
Cost | low | very high | low | low |
WHY CHOOSE US
1:CHINA BIGGEST FACTORY .
2:Supply spare parts according to order quantity.
3:Technical support for your installation, operation and maintenance.
4: Lifetime warranty
5: Fast delivery
6:Provide with CCC CE ISO certificate
7: we can customize different dimension and Specification according to the requirements of customers.
If you are interested in our machine,please contact us for more information (such as catalogue,video,prices,etc).
