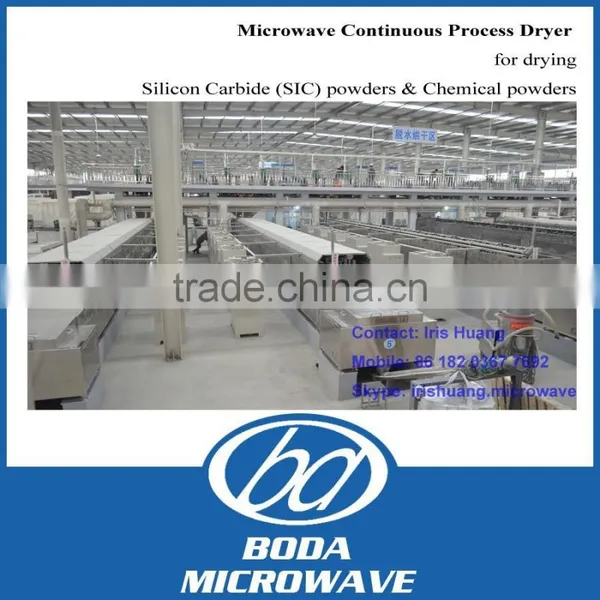

Industrial microwave dryer for silicon carbide /SIC powder dryer/carborundum powder /chemical powder
Product Description:
Model number |
BDMD- F-P-60 |
Description |
BODA Industrial microwave silicon carbide dryer/SIC powder dryer/carborundum powder dryer |
| Microwave frequency (MHz) | 2450±50 |
| Input voltage | 380V, 50Hz |
| Microwave power(KW) | 60(KW) |
Chamber material |
Stainless steel |
| Chamber color | Silver-white |
| Conveyor belt | PTFE |
| Dehydrator dimension(L*W*H)(mm) | 12.0x1.1x1.7 |
| Weight (KG) | 3500 |
| Microwave leakage limit(mW/cm2) | 1 mW/cm2 |
| Relative humidity(℃) | ≤85% |
| Ambient temperature(℃) | Normal temperature |
| Environment requirement | No excessive corrosive gas, no inflammable, explosive gas |
Usage:
Drying all kinds of chemical powders, chemical granules, including Calcium carbonate, Silicon carbide, Borax pentahydrate, Zirconium Hydroxide, Calcium hydroxide, Matt hardener, Sodium sulfocyanate, Boron Carbide, Diamond powder, Vanadium pentoxide, Molecular sieve, Zinc oxide, Magnesiumfluoride etc.
Advantage:
Microwave chemical powder dryer has a number of quantitative and qualitative advantages over conventional drying techniques that make its adoption a serious proposition. One main advantage is the place where the heat is generated, namely the product itself. Because of this, the effect of small heat conductivities or heat transfer coefficients does not play such an important role. Therefore, larger pieces can be heated in a shorter time and with a more even temperature distribution. These advantages often yield an increased production.
- Energy saving 30%-60%
- Drying speed 30%-50% quicker
- Reduced CO2 emissions
- Increased manufacturing efficiency and throughput
- Drying temperature adjustable
- Suitable for drying varied chemical products
Packing & Shipping:
Wooden packing for each set of silicon carbide industrial microwave dryer
Soft packing is supplied.
Our Services:
BODA provides a full range of services and technical support for industrial microwave systems. The services include custom installations, preventive equipment maintenance, equipment upgrades and modifications and microwave system repair.
Company Information:
FAQ:
1. What is Microwave?
Microwaves are a form of electromagnetic energy with frequencies between 300 MHz and 300 GHz, generated by magnetrons under the combined force of an electric and a magnetic field perpendicular to each other.
2. What is the advantage of Microwave dryer compared to Conventional dryer?
Conventional dryer is a surface drying method, which is not only slow, but also non-uniform with the surfaces, edges and corners being much dried than the inside of the material. The imperfect drying will cause product rejections, waste energy and extend process time.
Microwave silicon carbide SIC dryer is a direct method of drying. Energy is transferred through the material electro-magnetically, not as a thermal heat flux. Therefore, the rate of drying is not limited, the uniformity of heat distribution is greatly improved and drying time is reduced.
3. How about safety?
Using scientific structure and patented suppression system, BODA industrial microwave dryer poses no threat of electromagnetic radiation to the health and safety of equipment operators.
4.What about maintenance?
In addition to downtime for cleaning and inspection, conventional dryers and heat exchangers need periodic servicing with an expensive inventory of parts and a highly trained labor force. For microwave dryer, the only part that requires maintenance is the magnetron. In the event of a malfunction or misuse through incorrect operation, this can easily be replaced in less than thirty minutes. Generally, BODA recommends that the magnetron of industrial microwave dryer be replaced annually or after 8,000 hours of operation, whichever is sooner.
