2016 new technology tray dryer oven
2016 new technology tray dryer oven :
This batch type of mosquito coil hot air dryer can be manufactured using electricity or steam as the heating source, the drying teamperature can be adjustable from 40℃~160℃.
The drying time can be setted according to different drying demand of different materials.
The hot air circulating device carries out the heat convection by using fan, carries out the heat transfer to material,
and supplement the air &discharge dehumidify air continuously.
This machine is widely used in food, pharmaceutical, chemical field to reach heating, drying, dehydrating targets.
| Machine Model: | BDHA-T-T2 ( | BDHA-T-T4 | BDHA-T-T6( | BDHA-T-T8 | BDHA-T-T1 ( | |
| Overall dimension(mm): | 2430*1200*2000 | 2430*2200*2000 | 3430*2200*2000 | 4460*2200*2000 | ||
| Input capacity(Kg/batch): | 120 | 240 | 120 | 500 | ||
| Electric voltage: | 220V/50HZ, 3PH | |||||
| Moter power(Kw): | 0.3Kw | 0.6Kw | 0.9Kw | 1.2Kw | ||
| Heating source: | Electrictity(14Kw) or steam 20kg/h | Electrictity(28Kw) or steam 40kg/h | Electrictity(42Kw) or steam 60kg/h | Electrictity(56Kw) or steam 80kg/h | ||
| Thermal area(Sqm): | 20 | 40 | 60 | 100 | ||
| Wind Volume(Cbm/h) | 2800 | 5200 | 8000 | 13800 | ||
| Temperature range(celcius) | ≥120 | |||||
| Numbers of Trolley(set) | 2 | 4 | 6 | 8 | ||
| Dimension of trolley(mm) | 950*1510*710 | |||||
| Numbers of Tray(pcs) | 48 | 96 | 144 | 192 | ||
| Dimension of tray(mm) | 640*460*45 | |||||
| Material: | Complete stainless steel: chamber&trolley&tray are SS304; exterior cover SS201 | |||||
| Open Doors: | Front | |||||
BODA provides a full range of per-sale services and after sale service, include technical support for industrial hot air drying systems and microwave drying system. The services include install direction, preventive equipment maintenance, equipment upgrade and modifications.
WHY CHOOSE US
1:CHINA BIGGEST FACTORY .
2: Equipment material: ALL STAINLESS
3: Accessory materials brand : SIEMENS
4:Technical support for your installation, operation and maintenance.
5: Lifetime warranty
6: Fast delivery
7:Provide with CCC CE ISO certificate
8: we can customize different dimension and Specification according to the requirements of customers.
If you are interested in our machine,please contact us for more information (such as catalogue,video,prices,etc).

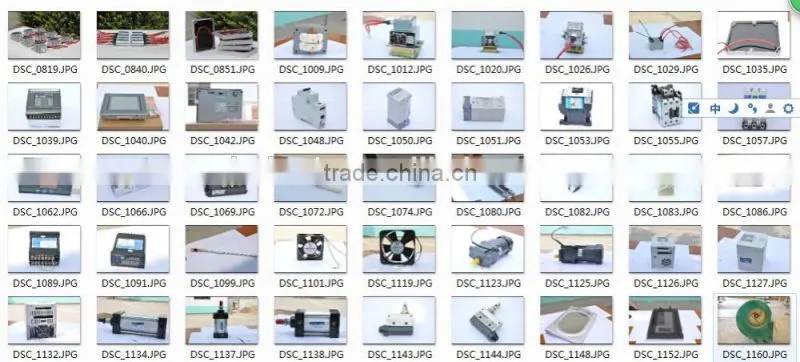

Boda product component
