Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine

Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine thumbnail-1
Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine thumbnail-2
Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine thumbnail-3
Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine photo-1
Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine photo-2
Belt Type Spice and Seasoning Microwave Sterilization /sterilizing Machine photo-3
US$ 33,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BODA
Model Number:
BDMD-F-P-30
Type:
Other, Spice Machine, sterilization/sterilizing machine
Contact Supplier Request Quote Chat Now
Henan Boda Microwave Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BODA
Model Number BDMD-F-P-30
Type Other, Spice Machine, sterilization/sterilizing machine
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 2400 kg
Dimension(L*W*H) 8.0*1.1*1.8m
Production Capacity 300-400kg/h
Voltage 380V
Certification CE,ISO,BV
Condition New
Power(W) 30
Automatic Grade Automatic
Specifications

1.PLC control
2. with CE certificate
3.multifunction-drying&sterilization
4. high efficiency and fast speed
5.energy saving

Application of belt type spice and seasoning microwave sterilization/setrilizing machine:

This microwave sterilization suits for powder,flakes,granular,gel-like ect shape spice and seasoning materials,such as dried green chili,dried red chili,ginger ,garlic,curry powder, turmeric powder ,black pepper,white pepper,rice flour, fennel powder, food additives, seasoning powder,moringa leaf powder etc

Specification of  belt type spice and seasoning microwave sterilization /sterilizing machine:

Model

Magnetron Frequency

(MHZ)

Output

power

(kw)

Microwave

 leakage

(mW/cm2)



Overall

Dimension

 (m)

Installation

Area

(m)

Gross

Weight

(Kg)

Capacity of

Drying

(kg/h)

Capacity of

Sterilization

(kg/h)

BDMD

-F-P-15

2450±50

15

≤1

6.0x1.1x1.8

9.0x3.5x2.5

2000

40-75

150-180

BDMD

-F-P-20

2450±50

20

≤1

7.0x1.1x1.8

10x3.5x2.5

2500

50-120

200-250

BDMD

-F-P-30

2450±50

30

≤1

8.0x1.1x1.8

11x3.5x2.5

3000

65-160

300-400

BDMD

-F-P-40

2450±50

40

≤1

9.0x1.1x1.8

12x3.5x2.5

3500

100-240

400-500

BDMD

-F-P-50

2450±50

50

≤1

10x1.1x1.8

13x3.5x2.5

4300

120-300

500-600

BDMD

-F-P-80

2450±50

80

≤1

13x1.1x1.8

15x3.5x2.5

5000

200-480

800-900

BDMD

-F-P-100

2450±50

100

≤1

15x1.1x1.8

17x3.5x2.5

6000

240-600

1000-1200

 Features of belt type spice and seasoning microwave sterilization /sterilizing machine:

1.The whole machine chamber adopts food grade SS 304 stainless steel, with smooth appearance and easy for cleaning

2.Interface operation and on-site monitoring,PLC auto-control system,all the data can be saved,output,print etc

3.Microwave power stepless adjustable,transmission speed adjustable,temperature and humidity are intelligent controlled.

4.Adopt Non-contact infrared measuring temperature technology,ensure the accuracy of temperature control

5.Material loading and unloading operates easily,which could automatic production

6.Unique ventilation system could speed up the moisture removal speed ,raise the sterilizing efficiency

7.Mchine start and power off automatically,sterilizing material and microwave generator could start and off synchronously

8.Working parameters can be setted easily according to different sterilizing demands of different materials

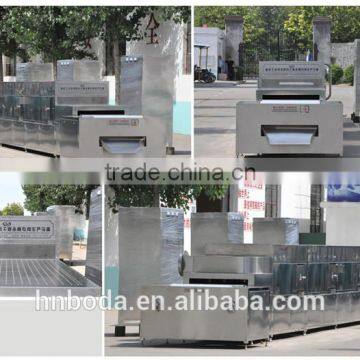

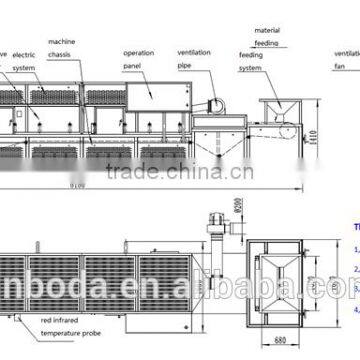

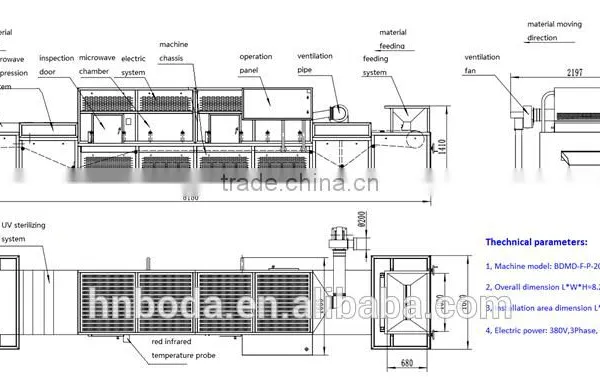

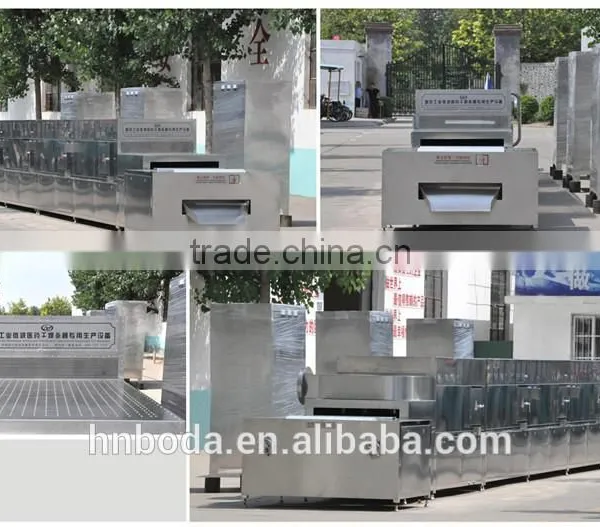

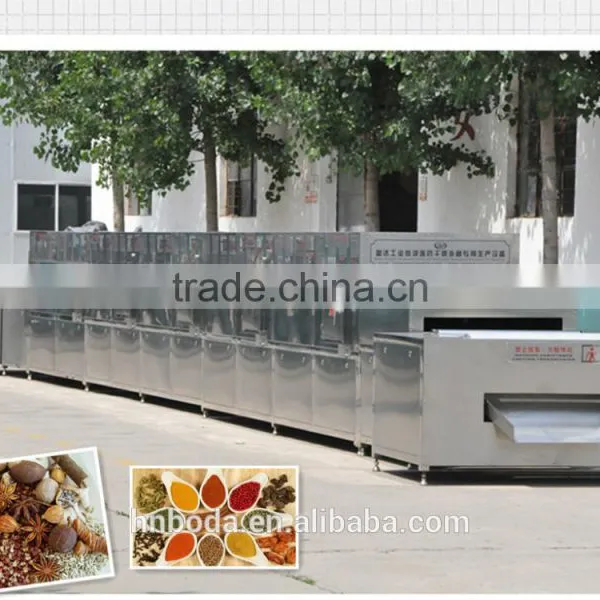

Detailed pictures of belt type spice and seasoning microwave sterilization/ sterilizing machine:

Belt type spice and seasoning microwave sterilization /sterilizing machineBelt type spice and seasoning microwave sterilization /sterilizing machineBelt type spice and seasoning microwave sterilization /sterilizing machine



Belt type spice and seasoning microwave sterilization /sterilizing machine

Belt type spice and seasoning microwave sterilization /sterilizing machine

Belt type spice and seasoning microwave sterilization /sterilizing machineBelt type spice and seasoning microwave sterilization /sterilizing machine

Belt type spice and seasoning microwave sterilization /sterilizing machine
