Help CenterIndustrial Continuous Type Microwave Pigskin Puffing Machine
Related Products
-
Industrial Tunnel Type Microwave Red Dates Dryer & SterilizerUS$ 29,000 - 90,000MOQ: 1 Set -
Industrial Tunnel Type Microwave Mealworm Dryer & SterilizerUS$ 29,000 - 90,000MOQ: 1 Set
-
Protein Powder Continuous Type Microwave DryerUS$ 35,000 - 41,000MOQ: 1 Set
-
Continuous Type Microwave Dryer and Sterilizer for FlowersUS$ 35,000 - 41,000MOQ: 1 Set
-
Continuous Type Microwave Food Dryer & SterilizerUS$ 35,000 - 41,000MOQ: 1 Set
Application of Industrial continuous type microwave pigskin puffing machine:
This microwave sterilization suits for powder,flakes,granular,gel-like ect shape spice and seasoning materials,such as dried green chili,dried red chili,ginger ,garlic,curry powder, turmeric powder ,black pepper,white pepper,rice flour, fennel powder, food additives, seasoning powder,moringa leaf powder etc
Specification of tunnel type condiment/seasoning microwave sterilization /sterilizing machine:
Model | Magnetron Frequency (MHZ) | Output power (kw) | Microwave leakage (mW/cm2)
| Overall Dimension (m) | Installation Area (m) | Gross Weight (Kg) | Capacity of Drying (kg/h) | Capacity of Sterilization (kg/h) |
BDMD -F-P-15 | 2450±50 | 15 | ≤1 | 6.0x1.1x1.8 | 9.0x3.5x2.5 | 2000 | 40-75 | 150-180 |
BDMD -F-P-20 | 2450±50 | 20 | ≤1 | 7.0x1.1x1.8 | 10x3.5x2.5 | 2500 | 50-120 | 200-250 |
BDMD -F-P-30 | 2450±50 | 30 | ≤1 | 8.0x1.1x1.8 | 11x3.5x2.5 | 3000 | 65-160 | 300-400 |
BDMD -F-P-40 | 2450±50 | 40 | ≤1 | 9.0x1.1x1.8 | 12x3.5x2.5 | 3500 | 100-240 | 400-500 |
BDMD -F-P-50 | 2450±50 | 50 | ≤1 | 10x1.1x1.8 | 13x3.5x2.5 | 4300 | 120-300 | 500-600 |
BDMD -F-P-80 | 2450±50 | 80 | ≤1 | 13x1.1x1.8 | 15x3.5x2.5 | 5000 | 200-480 | 800-900 |
BDMD -F-P-100 | 2450±50 | 100 | ≤1 | 15x1.1x1.8 | 17x3.5x2.5 | 6000 | 240-600 | 1000-1200 |
Features of tunnel type condinment/seasoning microwave sterilization /sterilizing machine:
1.The whole machine chamber adopts food grade SS 304 stainless steel, with smooth appearance and easy for cleaning
2.Interface operation and on-site monitoring,PLC auto-control system,all the data can be saved,output,print etc
3.Microwave power stepless adjustable,transmission speed adjustable,temperature and humidity are intelligent controlled.
4.Adopt Non-contact infrared measuring temperature technology,ensure the accuracy of temperature control
5.Material loading and unloading operates easily,which could automatic production
6.Unique ventilation system could speed up the moisture removal speed ,raise the sterilizing efficiency
7.Mchine start and power off automatically,sterilizing material and microwave generator could start and off synchronously
8.Working parameters can be setted easily according to different sterilizing demands of different materials

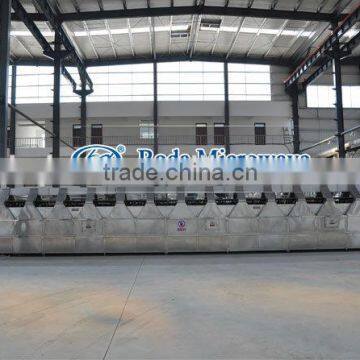

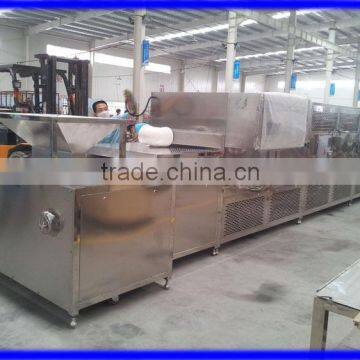

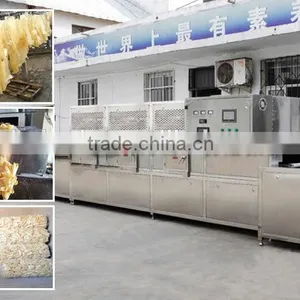

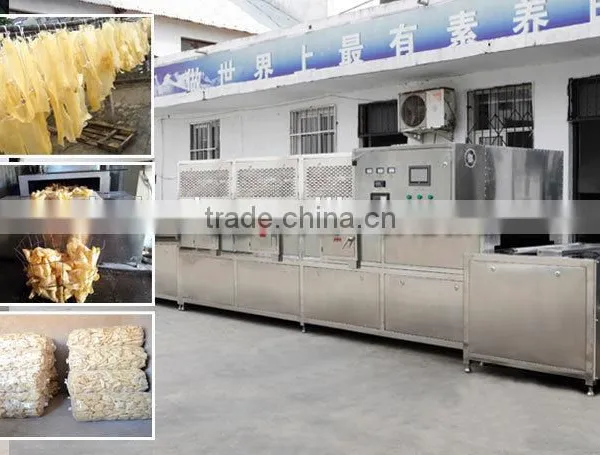

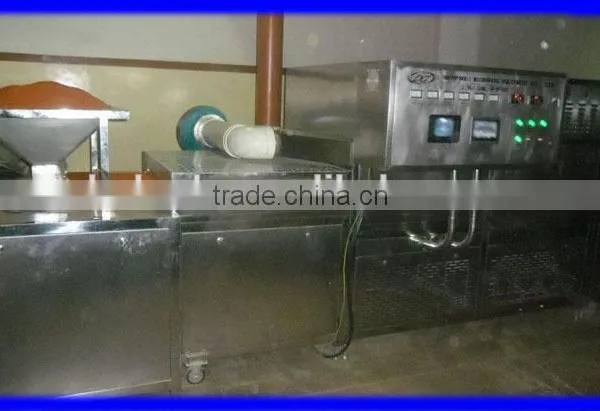

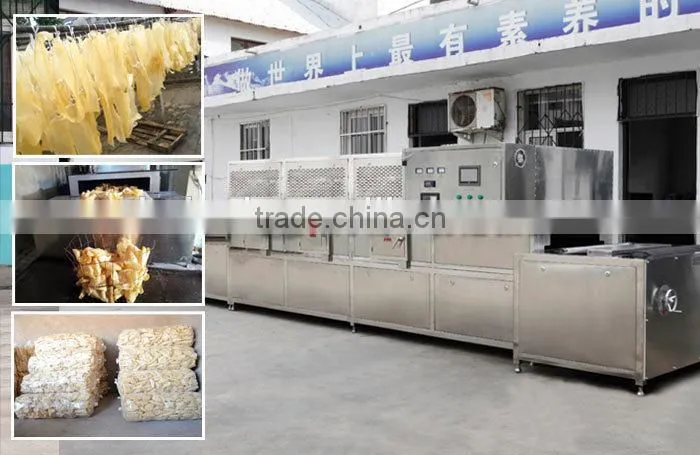

Detailed pictures of tunnel type condiment /seasoning microwave sterilization/ sterilizing machine:
