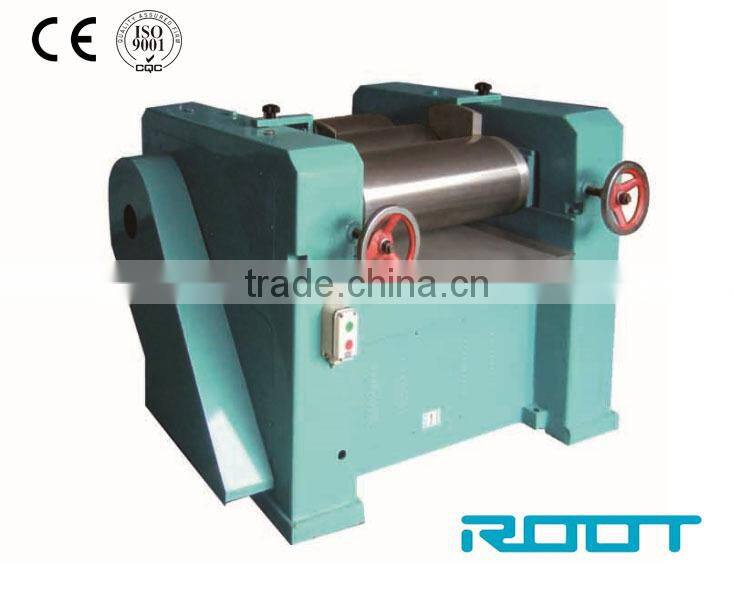

ROOT Manual three roller mill
Application:
Tri-roller mill is suitable for grinding and dispersing ointment or high viscosity materials with high requirement of fineness. It achieves required grinding effect by the friction and crushing among the three horizontal rollers rotating at different speeds. The clearance between the rollers is adjusted manually. It is equipped with emergency brake button to prevent equipment damage. The roller is a casting with special hard alloy or ceramic materials.
Working Principle:
The equipment consists of three rollers fixed on the frame and driven directly by the motor. The rotation direction between rollers is generally different, the front roller rotates forward while the rear roller rotates backword. The speed of front roller is quicker while speed of rear roller is slower. The middle roller is fixed, and the front and rear rollers are mounted on the slide with spring device. Adjust the distance between three rollers by adjusting the hand wheel. The material discharged from space between rear roller and middle roller, are squeezed by the rollers to obtain smaller particle size. Then the material are rolled out by the fast roll(Roll rotates at high speed). The scrapper at the end of the fast roller separate material from the roller and fall into the collection barrels. Since it produces a lot of heat in the grinding process, the center of each roller is hollow. Input water for cooling to ensure finished products with good quality.
Parameter:
Model |
Motor Power (KW) |
Roller Diameter (mm) |
Roller Length (mm) |
Weight (KG) |
Speed(rpm) |
RT-S120 |
1.5 |
120 |
280 |
550 |
38/88/205 |
RT-S150 |
2.2 |
150 |
300 |
600 |
34/79/184 |
RT-S260 |
7.5 |
260 |
375 |
2368 |
66/123/187 |
RT-S405 |
15 |
405 |
810 |
5200 |
15/41/133 |
Pre-Sale Service: Root engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.
On-Sale Service: Root factory will manufacture the good quality machine.
After-sale Service: Root engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the machine, train your workers to operate and help with the debugging.
All wear parts of Root Machine is available at any time you need. Our engineer will provide you with spare parts scheme before sending machine to help you know when it is needed to change the parts so that to avoid any delay of production due to machine parts.
Root Modern Nano Laboratory
Lab Experiment Equipments: disperser(1.1kw), RT-1.0C bead mill, RT-1.0D bead mill, RT-0.5BJ ceramic bead mill, PSS laser granulometer
Experiment Process:
1. Material information
2. Experiment preparation
3. Experiment mode confirm
4. Experiment execute
5. Report Generate
6. Sending test products to clients
If you want to do experiment of your material, pls contact us and make an appointment with our sales engineer.
1. What is the application of your bead mill?
Our bead mill is widely applied in traditional industries such as paint, dye, agriculture chemical, food and feeding stuff, medicine, ceramic and some new industries such as magnetic material, battery material, LED, Nano degree new material etc.
2. What information I should provide to you for choosing a suitable bead mill?
1) What is the material? What industry will you do?
2) What is finess you want to grind to?
3) What is the orginal size of your material?
4) What is the capacity you prefer?
5) What temperature do you prefer?
6) Do you have requirements for the percentage of metal ion?
7) Viscosity of original products?
8) Do you have any requirements for color?
3. Could you list the countries that you have sold to?
Pakistan, Chilli, Russia, Brazil, South Korea, Saudi Arabia, India etc.
4. Do you manufacture only bead mill? I want to start a complete paint production line, will you help?
Root is specialized in sand mill to ensure the quality of sand mill. But for other auxiliary machines, we will still customerized for
our clients. Root could provide you with complete paint production line.
Shanghai Root Mechanical and Electrical Equipment Co., Ltd is professional manufacturer of wet grinding production line. Owning 10 years experience in wet grinding field, Root is your best choice for wet grinding equipment. With cooperation with university , experts and exprienced engineers, Root has been concentrated in technique of wet grinding machine since 2000. Now Root wet grinding mills are applied in more than 20 countries, serving for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic.
With own modern Nano Lab and Factory, Root could provide our clients with the most suitable solution for complete wet gridning production line. We are expecting cooperation with you
