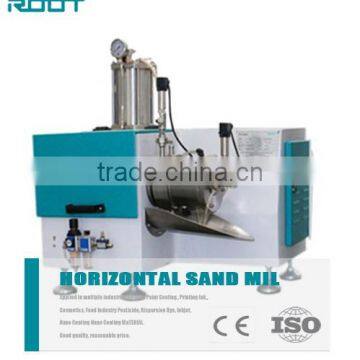

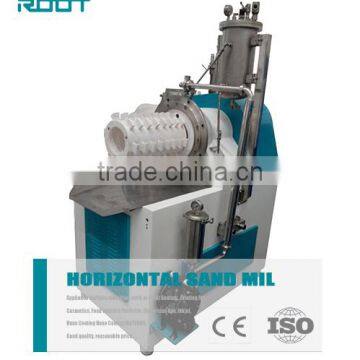

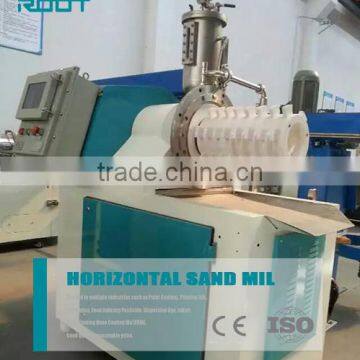

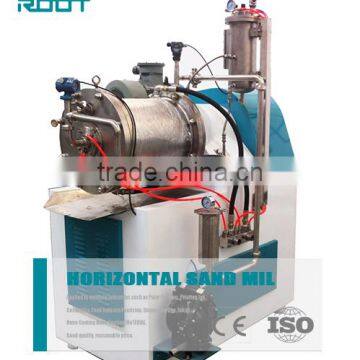

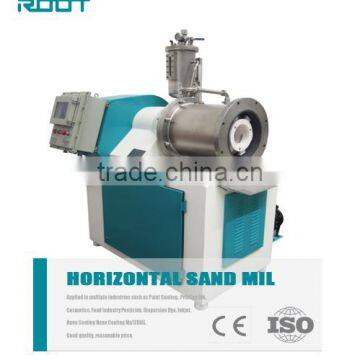

Pin Type Horizontal Sand Mill For Dental Material, Functional Nano Coating
- 100 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Ceramic Wet Grinding Mill, Horizontal Sand Mill/Bead Mill | Product Type: | Other, paint, dye, pigment, magnetic material, pesticide |
Place of Origin: | Shanghai, China | Brand Name: | ROOT Wet Grinding Mill | Model Number: | RT-D |
Voltage: | customerized | Power(W): | 15-75KW | Dimension(L*W*H): | According to different mill model |
Weight: | 800-2100KG | Certification: | CE/ISO9001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pin Type Horizontal Sand Mill For Dental Material, Functional Nano Coating
1. Application:
Root ceramic sand mill/bead mill is widely applied in production of paint, dye, ink, magnetic material, pesticide, ceramic, paste, adhesion etc. With high quality and reasonable price, Root ceramic sand mill/bead mill has won smile from clients over 10 countries. Root horizontal sand mill has been a wise choice for owners of paint, dye, ink factories.
2. Working Principle:
The working force between grinding media and material is generated from the high-speed rotation of dispersing device(disc, pin or paddle). Under the force of viscous resistance, Grinding media and material moves along with dispersing device and be thrown to the cylinder inner wall by centrifugal force, forming double-circle turbulence. The strong inter-movements of grinding media form great cutting, pressing and abrasive force, making the material change shape and generate stress-field. When that stress reaches material yielding and breading limit, the material will be deformed plastically or pulverized. The un-pulverized material will be thrown back to the cylinder inner wall by centrifugal force. In this zone, the density of grinding media reaches the highest point, thus making the pulverization more powerful. The fine final products will be separated from grinding media by separator and be discharged from the bead mill.
3. Machine Features
1) Patent grinding disc structure of the ceramic sand mill/bead mill has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.
2) Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.
3) Feeding device: USA imported pneumatic diaphragm pump or frequency control gear pump is optional as clients’ requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.
4) High security property. The ceramic sand mill/bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.
5) Grinding chamber and rotor is made of high wear resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.
6) Reasonable design for inner and outer structure allows stable performance with no vibration and noise.
7) Ceramic and PU material are optional.
8) Frequency control and PLC are optional
9) With CE&ISO9001:2008 qualification.
10) Dynamic or static separating system for different material to ensure smooth discharging.
4. Technical Parameter
Model | Motor Power (KW) | Media Size (mm) | Volum(L) | Weight (KG) | Dimmension(mm) |
RT-1.0DJ | 4 | 0.3-3.0 | 1.0 | 200 | 700(L)x550(W)x1050(H) |
RT-6DJ | 15 | 0.3-3.0 | 6 | 400 | 952(L)x590(W)x995(H) |
RT-10DJ | 18.5 | 0.3-3.0 | 10 | 800 | 1050(L)x590(W)x1140(H) |
RT-25DJ | 37 | 0.3-3.0 | 25 | 1100 | 1950(L)x700(W)x1500(H) |
RT-60DJ | 55 | 0.3-3.0 | 60 | 1800 | 1800(L)x1000(W)x1700(H) |
RT-90DJ | 75 | 0.3-3.0 | 90 | 2000 | 2000(L)x1200(W)x1850(H) |
RT-150DJ | 110 | 0.3-3.0 | 150 | 2300 | 2500(L)x1500(W)x2000(H) |
Pre-Sale Service: Root engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.
On-Sale Service: Root factory will manufacture the good quality machine.
After-sale Service: Root engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the machine, train your workers to operate and help with the debugging.
All wear parts of Root sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
Root Modern Nano Laboratory
Lab Experiment Equipments: disperser(1.1kw), RT-1.0C sand mill, RT-1.0D sand mill, RT-0.5BJ ceramic sand mill, PSS laser granulometer
Experiment Process:
1. Material information
2. Experiment preparation
3. Experiment mode confirm
4. Experiment execute
5. Report Generate
6. Sending test products to clients
If you want to do experiment of your material, pls contact us and make an appointment with our sales engineer.
Shanghai Root Mechanical and Electrical Equipment Co., Ltd is professional manufacturer of wet grinding production line. Owning 10 years experience in wet grinding field, Root is your best choice for disperser, lab use sand mill and inustrial sand mill, three roller mill and basket mill. With cooperation with university , experts and exprienced engineers, Root has been concentrated in technique of wet grinding machine since 2000. Now Root wet grinding mills are applied in more than 20 countries, serving for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With own modern Nano Laboratory and manufacturing factory, Root could provide clients with the most suitable solution for complete wet grinding production mills. We are expecting cooperation with you!
