Home > Products > Basket Mill > 37kw 600L basket milling machine for paint
37kw 600L basket milling machine for paint
- 100 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Basket milling machine, Basket milling machine | Product Type: | Paint |
Place of Origin: | Shanghai, China | Brand Name: | ROOT | Model Number: | RT-LM |
Voltage: | Customerized | Power(W): | 37KW | Dimension(L*W*H): | According to different models |
Weight: | According to different model | Certification: | CE/ISO9001:2008 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

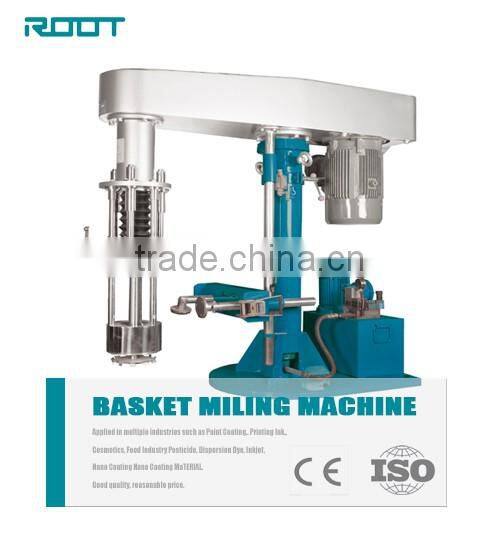

37kw 600L basket milling machine for paint
1. Application:
Basket milling machine is a kind of multi-functional grinding machine. It possesses both grinding and dispersing function. With properties of energy-saving, high-efficiency and easy-maintenance, Basket mill is widely applied in industries with high fineness requirement such as pigment, printing ink and coating etc.
2. Main Structure:
Basket sand mill is made up of control cabinet, rotation shaft, grinding device, pump impeller, disperser and grinding basket.

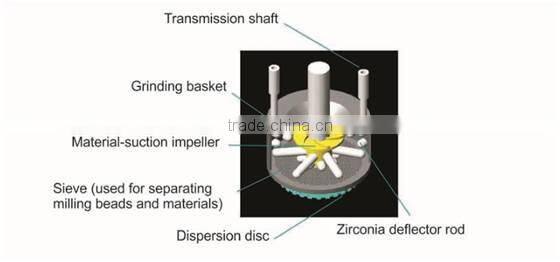

Fig One: Basket Mill Inner Structure
3. Working Principle:
Material is automatically sucked into grinding chamber by Self-sucking impeller. Material will be ground in grinding basket. Dispersing disc will rotate and generate dispersing, mixing and recycling force, forming a high-efficiency recycle of material-sucking, grinding and discharging. During work, rotation shaft and the grinding device, pump impeller, disperser will rotate at high speed accordingly. Grinding device of basket mill will drive the interaction between grinding media and material, forming strong cutting, crushing and grinding force to grind material and disperse the mixed material. At the same time, the material after grinding will be sucked out of grinding basket by pump impeller and then dispersed by dispersing disc. Therefore, in a short time, you could get an ideal grinding effect.

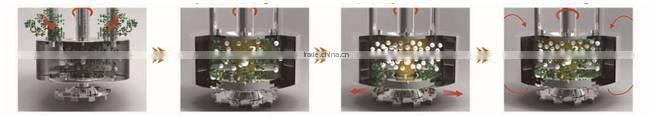

Material Sucking Superfine grinding Dispersing Excellent grinding effect
4. Main Features:
1)Integrate dispersing and grinding in one machine. Two working procedures realized by one machine and one vessel.
2)Excellent milling fineness, high productivity, little residue, high quality
3)Easy to clean and change color or other products.
4)High speed main shaft, basket head, belt pulley has passed the static and dynamic equilibrium test.
5)Equipped with double-layer cylinder to avoid hydraulic oil leakage after long time using.
6)Main switches: power sign, POWER ON/OFF, RPM METER, SPEED ACC/DEC, URGENT STOP, HYDRAULIC UP/DOWN.
7)Belt clamp or manual clamp or pneumatic clamp is for optional
8)With CE&ISO9001:2008 qualifications.
5. Technical Parameter
Model | Power (KW) | Production Capacity (L) | Media Size (mm) | Effective Volume (L) | Lifting Stroke (mm) |
RT-LM-5.5 | 5.5 | 50 | 1.4-2.5 | 2 | 600 |
RT-LM-7.5 | 7.5 | 100 | 1.4-2.5 | 3.4 | 800 |
RT-LM-11 | 11 | 150 | 1.4-2.5 | 4.6 | 800 |
RT-LM-15 | 15 | 250 | 1.4-2.5 | 7.5 | 900 |
RT-LM-18.5 | 18.5 | 300 | 1.4-2.5 | 15 | 1100 |
RT-LM-22 | 22 | 400 | 1.4-2.5 | 21.4 | 1100 |
RT-LM-30 | 30 | 500 | 1.4-2.5 | 30.2 | 1100 |
RT-LM-37 | 37 | 600 | 1.4-2.5 | 33.9 | 1200 |
RT-LM-45 | 45 | 800 | 1.4-2.5 | 45.1 | 1200 |
RT-LM-55 | 55 | 1000 | 1.4-2.5 | 61.6 | 1200 |
RT-LM-75 | 75 | 1200 | 1.4-2.5 | 69 | 1700 |
Pre-Sale Service: Root engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.
On-Sale Service: Root factory will manufacture the good quality machine.
After-sale Service: Root engineers will be standby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the machine, train your workers to operate and help with the debugging.
All wear parts of Root sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
Root Modern Nano Laboratory
Lab Experiment Equipments: disperser(1.1kw), RT-1.0C lab sand mill, RT-1.0D lab sand mill, RT-0.5BJ ceramic sand mill, PSS laser granulometer
Experiment Process:
1) Material information
2) Experiment preparation
3) Experiment mode confirm
4) Experiment execute
5) Report Generate
6) Sending test products to clients
If you want to do experiment of your material, pls contact us and make an appointment with our sales engineer.
Shanghai Root Mechanical and Electrical Equipment Co., Ltd is professional manufacturer of wet grinding production line. Owning 10 years experience in wet grinding field, Root is your best choice for disperser, lab use sand mill and inustrial sand mill, three roller mill and lab basket mill and insdustrial basket mill. With cooperation with university , experts and exprienced engineers, Root has been concentrated in technique of wet grinding machine since 2000. Now Root wet grinding mills are applied in more than 20 countries, serving for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With own modern Nano Laboratory and manufacturing factory, Root could provide clients with the most suitable solution for complete wet grinding production mills. We are expecting cooperation with you!
